Description

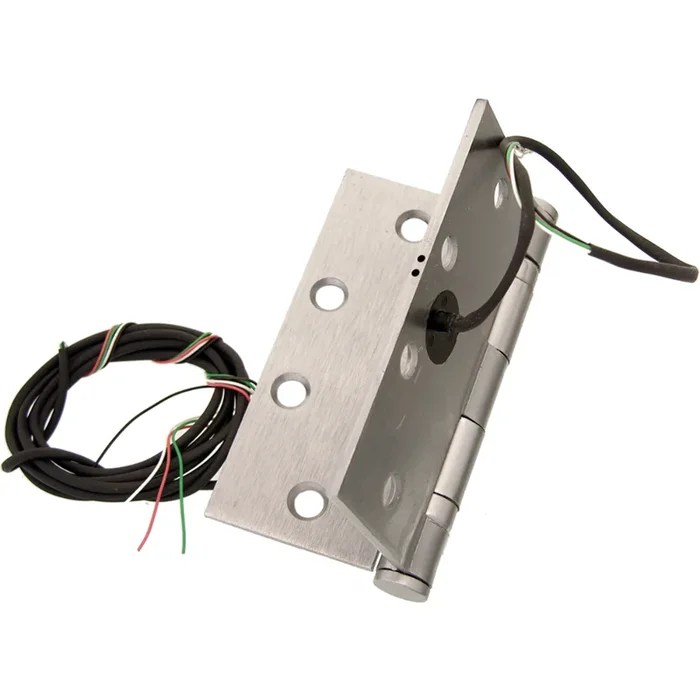

Command ETH4W4545-626 CH-BB68 4.5in X 4.5in 4-wire 26g Electric Hinge
Standard Weight Wire Heavy Weight Hinge
Features
- 4′ Lead available at no charge
- Non-conductive wire access cap for added protection
- Center located wire access hole
- 3-Year Warranty
- UL-F Rated
Attributes
Alternate Codes: CMAETH4W4545 652 5HW, ETH4W4545-626 CH-BB68, ETH4W4545626CHBB68
Bearing Type: Plain Bearing
Category: Electrified Hinges, Hinges
Commercial Residential: Commercial
Corner Type: Square
Finish: 652/US26D
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Finish : Satin Chromium Plated
Finish Family: Matte Silver
Handing: Non-Handed
Height: 4-1/2 In.
Hinge Size: 4.5″ x 4.5″
Hinge Style: 5 Knuckle
Hinge Type: Hinge, Full Mortise
Installation: Commercial
Knuckles: 5
Mounting Holes: 8 Holes
Pin Type: (NRP) Non Removable
Power Transfer: 4-26ga
Series: Command Power Transfer Hinges
Subtype: Electrified Hinges
Tip Style: Standard
Type: HINGES
Weight: Heavy Weight
Width: 4-1/2 In.
Wire Quantity: 4 Wire
Resources
- 2019 Command Access Price Book
- Command Energy Transfer Hinge Cut Sheet
