Description

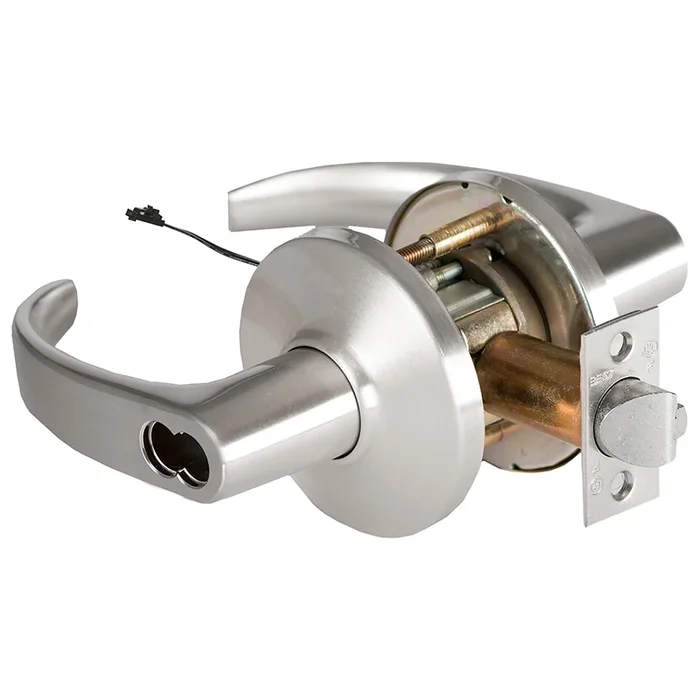

Best 9KW37DEU14DS3626RQE Best Electric Cylindrical Lock
UL Listed: Listed by Underwriter’s Laboratories for use on 3 Hr, A label single swinging doors (4’x10′). GYJT Builders Hardware-single point locks or latches. American National Standard: ANSI A156.2, Series 4000 Grade 1 (formerly FF-H-106C Series 161.)The 9KW series cylindrical lock has received a notice of acceptance from Miami-Dade County and is considered Miami-Dade County product control approved. “WS” option must be ordered for the lock to include a “Miami-Dade County Product Control Approved” label for inspection purposes.
- Built To Tight Tolerances, To Provide The Highest Level Of Mechanical Security And Enhance The Integrity Of The Lock
- Strong Through-Bolt Mounting Studs Provide For Great Torque Resistance
- Strong Retractor Springs Provide Resistance To Lever Sag
- Quick And Easy Rekeying With Best Interchangeable Cores
- Ansi A156.2 Grade 1
Attributes
Manufacturer surcharge: 7.0%
Amp Draw: 0.18
Baa Qualified: Yes
Backset: 2-3/4″ Backset
Base Material: Brass or Bronze
Bolt Projection: 9/16″
Bolt Protection: 9/16″
Country of Origin: Usa
Country of origin: USA
Cylinder Type: SFIC Prep Less Core
Design: 14D
Door Thickness: 1-3/4″ – 2-1/4″
Finish: 626/US26D
Finish : Satin Chrome
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: DEU-Electronically Unlocked
Grade: Grade 1
Hand: Not Handed
Handing: Not Handed
Latch Backset: 2-3/4″
Latch Backset Dim: 2-3/4″
Latch Number: 8KL3DL
Latch Type: Dead Latch (Guarded)
Lever Knob Design: 14 – Lever
Leverknob Design: 14 Lever
Limited Warranty: 3 Years
Lock Face Size: 2-1/4″ X 1-1/8″
Num Pins: 7
Operating Voltage: 24VDC
Origin: USA
Pack Height: 4″
Pack Height 2: 8.75″
Pack Length: 8.13″
Pack Length 2: 20.5″
Pack Qty: 1
Pack Volume: 215.31 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63″
Pack Width 2: 12.5″
Pins: 7
Power: Hard Wired
Rose Escutcheon Design: D – Rose
Roseescutcheon Design: D – Rose
Screws: Combination
Series: 9KW Series Electromechanical Lever Locks
Ship Weight: 4.3 lbs.
Std Latch Number: 8KL3DL
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8″
Std Strike Number: 8KS3
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Strike: S3 ANSI Strike
Strike Height: 4-7/8″
Strike Number: 8KS3
Strike Type: ASA
Strike Width: 1-1/4″
Subtype: Electric Cylindrical Lock
Switch Type: RX
Type: Electric Locks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
Upc: 887838126757
Upc Code: 8.87838E+11
