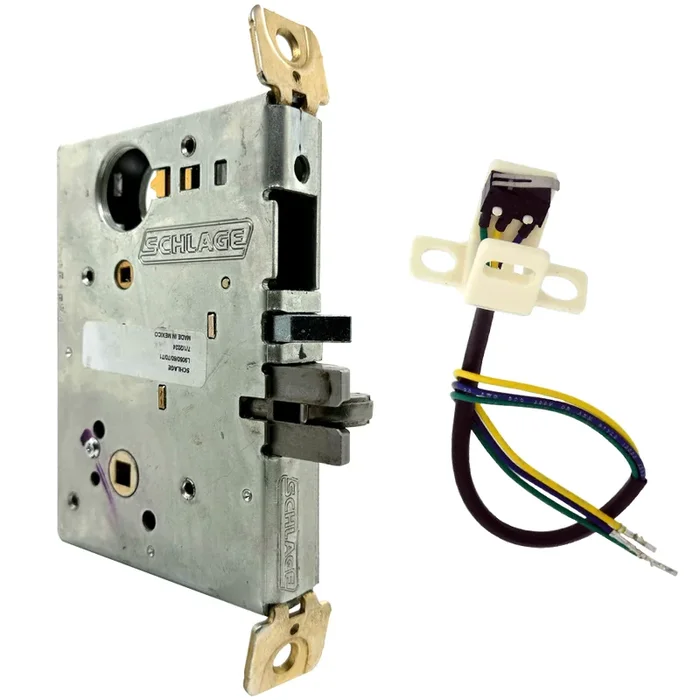

Schlage L9090LB-RX Electrified RX Lock Body for L9090, L9092, L9094, L283-392
Schlage Commercial L9090LBRX Electrified RX Lock Body offers robust security and advanced functionality for commercial applications. Designed to work seamlessly with L9090, L9092, or L9094 models, this electrified lock body is perfect for ensuring controlled access in high-traffic environments. Crafted with a zinc base, the L9090LBRX emphasizes durability while maintaining a sleek profile. The lock features a 2-3/4″ backset and is suitable for doors with a thickness of 1-3/4″. Its reversible handing allows for flexible installation on various door orientations. With a latch faceplate dimension of 1-1/4″ x 8″, this lock meets the demands of modern commercial spaces. Functionally, the L9090LBRX is engineered for electrically unlocking or locking the outside lever continuously, eliminating the need for a cylinder. It is UL Listed for 3-hour fire doors, ensuring compliance with safety regulations. Backed by a limited 10-year mechanical warranty and a 3-year electro-mechanical warranty, this lock body assures reliability and long-term performance. With a dimension of 4-7/16″ x 6-1/16″ x 1″, the Schlage Commercial L9090LBRX is an essential component for those seeking a secure, efficient, and dependable locking solution in commercial settings.
Electrified RX Lock Body for Use with L9090 L9092 or L9094 L283-392
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
- Electrified Lock Body
- L Series
- NA
- Made With Strong Materials
- Many Parts Are Finish Specific
- Universal input voltage – accepts 12 or 24V DC for installation flexibility
- User selectable fail safe/fail secure – changing mode between EL and EU is as simple as flipping a switch on the lock case
- Low maximum current draw – 0.4amps – allows multiple locks on a single power supply
- Low holding current – 0.01 amps – produces minimal heat, eliminating “hot levers” in electrically locking applications and allowing reliable operation even in poorly ventilated wood doors
- All-new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity
- New modular RX design – RX can be added on at a later time without opening the lock case
- Standard Allegion Connect quick-connect Molex system (can be cut off if traditional wiring splicing preferred)
Attributes
Access Type: Request to Exit
Alternate Codes: L9090LB-RX, L9090LBRX, SCLL9090LB-RX
Amp Draw: 400mA
Backset: 2-3/4″ Backset
Bolt Projection: 3/4 In.
Bolt Protection: 3/4 In.
Category: Mechanical Commercial Locksets
Dimension: 4-7/16″ x 6-1/16″ x 1″
Door And Lock Sensor: Lock Monitor
Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets
Door Range: 1-3/4″
Door Thickness: 1-3/4 In.
Fail Status: Field Selectable
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Field Selectable (Safe/Secure)
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/4″ x 8″
Limited Warranty: 1 Year
Lock Category: Mortise Lockset – Latch Only
Lock Face Size: 8 In. X 1-1/4 In.
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
Operating Voltage: 12VDC/24VDC
Order_ Qty: 1
PO date: 2024-09-19
Pack Qty: 1
Power: Hard Wired
Screws: Combination
Series: L Series
Strike: 10-072 Strike
Subcategory: Mortise Locksets
Subtype: Mortise
Supplier: Schlage
Switch Type: RX
Type: LOCK SETS
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Voltage: 12V AC, 12V DC
