Description

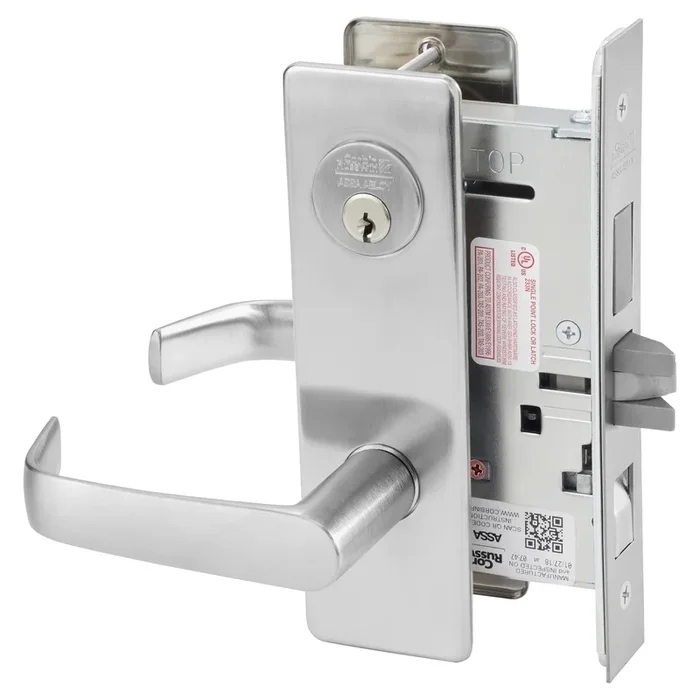

Corbin Russwin ML2048 NSM 626 Mortise Lock for Entrance
Corbin Russwin ML2048 NSM 626 Entrance Mortise Lock is a robust and versatile solution designed for high-traffic environments such as offices, schools, and hospitals. As part of the ML2000 Series, this Grade 1 mortise lock is constructed from heavy-gauge steel, ensuring durability and long-lasting performance. The patented Quick Reversible latchbolt allows for easy re-handing without disassembly, making it adaptable to various door configurations. With a 1″ stainless steel deadbolt and an anti-friction 2-piece latchbolt, this lock provides reliable security. The lock accommodates standard door thicknesses of 1-3/4″ and includes a backset of 2-3/4″, making it suitable for numerous applications. The NS Lever design and M Escutcheon finish in Satin Chrome enhance its aesthetic appeal while maintaining functionality. This lock meets federal FF-H-106C standards and is backed by a 10-year warranty, demonstrating Corbin Russwin’s commitment to quality and reliability. Additionally, it features a fire rating of 3 hours, ensuring safety in emergencies. Whether for institutional, industrial, or government use, the Corbin Russwin ML2048 NSM is a trusted choice for securing entrances and apartments alike.
Entrance Mortise Lock
Entrance or Apartment Mortise Lock, NS Lever, M Escutcheon, Satin Chrome
The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1″ stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.
The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
The ML2000 Series is constructed of heavy-duty gauge steel and features a lockbody with the patented Quick Reversible latchbolt.A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
- Handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case.
- Door Thickness: 1-3/4″ (44mm) standard. Optional door thicknesses available.
- Backset: 2-3/4″ (70mm).
- Lockcase: Heavy-gauge steel, 5-7/8″ (149mm) x 4″ (102mm) x 15/16″ (24mm). Optional: non-ferrous lockcase for corrosion resistance.
- Front: Heavy-gauge steel, 8″ (203mm) x 1-1/4″ (32mm) x -3/32″ (2mm). Accommodates flat doors and doors beveled 1/8″ (3mm) in 2″ (51mm). Furnished 1-1/16″ (27mm), optional D138, wide for 1-3/8″ (35mm) doors.
- ArmoredFront: Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
- Latchbolt: 2-piece mechanical with anti-friction insert, 5/8″ (16mm) x 1″ (25mm) x 3/4″ (19mm) throw.
- Keys: Two nickel silver standard.
- Federal: Meets FF-H-106C.
- Environmental Product Declaration: (EPD) certified
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F08 – Front Door
Application: Complete Lock
Baa Qualified: Yes
Base Material: Brass or Bronze
Bolt Projection: 3/4″ Latchbolt, 1″ Deadbolt
Country of origin: USA
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4″
Finish: 626/US26D
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 48-Entrance or Apartment
Grade: Grade 1
Handing: Field Reversible
Keying: 0 Bitted
Keys: Blank
Leverknob Design: NS – Newport
Limited Warranty: 10 Years
Lock Face Size: 8″ x 1-1/4″
Of Keys: 2
Origin: USA
Pack Qty: 1
Pins: 6
Roseescutcheon Design: M – Escutcheon
Screws: Combination
Series: ML2000 Series Mortise Locks
Std Keyway: L4
Std Strike Height: 4-7/8″
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
Resources
- Assa Abloy Hands-Free and Touchless Solutions Flyer
- Corbin Strikes/Kits Brochure
- ML2000 Inspire Roseless Trim (J) Installation Instructions
- ML2000 Series Mortise Lock – Environmental Product Declaration (EPD)
- ML2000 Series Mortise Locks Cut Sheet
- ML2000VR Vandal Resistant Trim Installation Instructions
- Mortise Lock Occupancy Indicators (With Cylinder) Installation Instructions
- Mortise Lock Occupancy Indicators (Without Cylinder) Installation Instructions
- Video: Changing the Hand on the ML20608
- Video: HPSK Push/Pull Trim Installation
- Video: ML2000 Series Mortise Lock with Sectional Rose Trim Installation
