Description

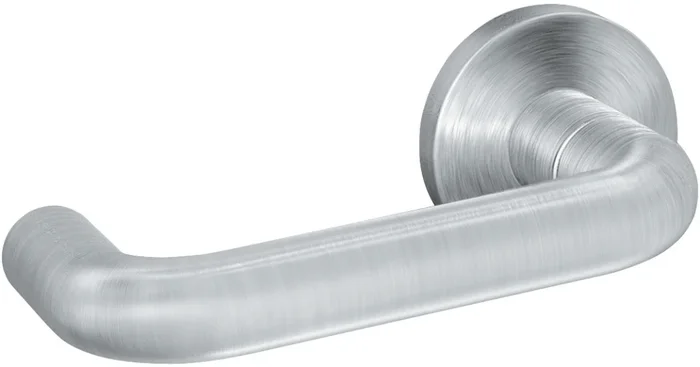

Schlage L9453P03A626 Entry/Office Mortise Lock C Keyway, 03 Lever, A Rose, Satin Chrome Finish
Schlage Commercial L9453P03A626 Entry/Office with Deadbolt Mortise Lock offers exceptional security and functionality for commercial applications. Designed with a C keyway, this robust lockset features both a deadbolt and a latchbolt, allowing for versatile access control. The latchbolt can be retracted from either side, providing convenience, while the deadbolt is locked with a simple 20° turn and thrown with a 90° turn, ensuring peace of mind. Constructed to meet ANSI/BHMI Certified A156.13-2012 standards, the L9453P is classified as Commercial Grade 1, signifying its durability and reliability in high-traffic environments. This lock is UL Listed for 3-hour fire doors, adding an essential layer of safety in the event of an emergency. Its reversible handing allows for easy installation on various door configurations. The sleek satin chrome finish not only enhances its aesthetic appeal but also ensures lasting performance, while the 03 lever and A rose design complement modern architectural styles. With a 2-3/4″ backset and compatibility for doors up to 1-3/4″ thick, this lockset is versatile enough for a range of applications. Backed by a limited 10-year mechanical warranty, the Schlage Commercial L9453P03A626 is a trusted choice for securing your space effectively.
Entry / Office with Deadbolt Mortise Lock C Keyway with 03 Lever and A Rose Satin Chrome Finish
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
- Handing:
- L9000 Series lock bodies are field-reversible without disassembly. L400 Series locks are non-handed.
- Door thickness: 1-3/4″ (44 mm) standard. 1-3/8″ (35 mm) to 2-1/2″ (64 mm) optional. Over 2-1/2″ (64 mm) door ranges vary by function. No escutcheon available for 1-3/4″ (44 mm) doors standard. 2″ to 2-3/8″ (51 mm to 60 mm) optional. Specify door thickness if other than 1-3/4″.
- Backset: 2-3/4″ (70 mm) only.
- Armored front:
- L9000 Series: 1-1/4″ x 8″ x 7/32″ (32 mm x 203 mm x 6 mm) standard. 1-1/16″ x 8″ x 1-7/32″ (27 mm x 203 mm x 6 mm) optional.
- L400 Series: 4-7/16″ x 3-5/8″ x 1″ (113 mm x 92 mm x 25 mm)
- Case size:
- L9000 Series: 4-7/16″ x 6-1/16″ x 1″ (113 mm x 154 mm x 25 mm)
- Spacing: Knob or lever to cylinder, 3-7/8″ (98mm); knob or lever to thumbturn hub, 2-11/16″ (68mm).
- Bolts: 1″ (25mm) throw stainless steel deadbolt and 3/4″ (19mm) throw stainless steel latch with anti-friction tongue.
- Exposed trim:
- Knobs: #41 and #42 heavy-duty wrought brass, bronze or stainless steel knobs match D Series knobs.
- Levers: Forged brass or bronze and cast stainless steel. Designs available to match D Series levers. 93 Lever design: Extruded brass, bronze or stainless steel. Mediterranean designs: Forged-brass lever and rose.
- Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.
- Trim combinations: Available with knob both sides, lever both sides, or knob and lever with rose or escutcheon both sides.
- Strike: L9000 Series: ANSI curved lip strike 1-1/4″ x 4-7/8″ (32 mm x 124 mm) x 13/16″ (30 mm) lip to center with dust box standard. L400 Series: 1-1/8″ x 3-5/8″ (29 mm x 92 mm) with dust box.
- Cylinder & keys: 6-pin Everest C123 keyway cylinder with two patented keys standard.
- Entry/Office Lock with Deadbolt, Latchbolt Retracted by Either Side, Locked by 20° Turn, Bolt Thrown by 90° Turn, Key or Handle Retracts Dead and Latchbolt, Locked Until Turn Restored Upright, Auxiliary Deadlocks Latchbolt, Inside Always Free
- ANSI/BHMI Certified A156.13-2012
- Commercial Grade 1
- Lock Body Mortises Inside the Edge of the Door
- UL Listed for 3 Hour Fide Door
- Tested and certified to ANSI/BHMA grade 1 operational and security standards
- UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
- Deadbolt features include anti-saw pin in bolt to prevent cut-through
- Security blocking hub prevents lock access by removing levers
- Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
- Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
- Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
- Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
- Two piece anti-friction tongue in latch bolt reduces wear
- Breakaway spindle keeps door secured in the event of vandalism
- Field reversible latch bolt allows handing change without opening case
- Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
Attributes
Alternate Codes: 143861, L9453P03A626
Ansi Function: F20 – Entry/Office
Baa Qualified: Yes
Backset: 2-3/4″ Backset
Base Material: Brass or Bronze
Bolt Projection: 3/4″ Latch, 1″ Deadbolt
Bolt Protection: 3/4″ Latch, 1″ Deadbolt
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Included: Yes
Cylinder Type: 6-Pin Cylinder
Design: 03 Lever and A Rose
Dimension: 2-1/8″ Rose with 4-3/4″ Lever and 2-13/16″ Projection
Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets
Door Bore Size: 2-1/8″
Door Range: 1-3/4″
Door Thickness: 1-3/4″
Door Thickness Min: 1-3/4″
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish : Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9453-Entrance Office Lock w Deadbolt
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: S123
Knob/ Lever Design: 03
Knob/ Lever Style: Lever
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 8″ x 1-1/4″
Latch Bolt Type: Deadbolt, Deadlatch
Latch Faceplate Dimension: 1-1/4″ x 8″
Lever Design: 3
Lever Knob Design: 03 – Lever
Leverknob Design: 03 Lever
Limited Warranty: 3 Years
Lock Category: Mortise Lock
Lock Face Size: 8″ x 1-1/4″
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
No Of Pins: 6 Pin Keyway
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63″
Pack Height 2: 5.63″
Pack Length: 10.38″
Pack Length 2: 10.38″
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38″
Pack Width 2: 5.38″
Pins: 6
Restricted Keyway: No
Rose Escutcheon Design: A – Rose
Rose/ Escutcheon: A Rose
Rose/ Escutcheon Size: 2-1/8″
Rose/ Escutcheon Style: Rose
Roseescutcheon Design: A Rose
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Keyway: S123
Std Strike Height: 4-7/8″
Std Strike Number: 10-072
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Strike: ANSI Strike
Strike Dimension: 4-7/8″ with 1-1/4″ Lip
Strike Height: 4-7/8″
Strike Number: 10-072
Strike Size: 4-7/8″ x 1-1/4″
Strike Type: ASA
Strike Width: 1-1/4″
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Supplier: Schlage
Type: LOCK SETS
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
