Description
Schlage L9050J17A630 Mortise Lock, Large Format IC Core, 17 Lever, Satin Stainless Steel Finish
Schlage Commercial L9050J17A630 Entry/Office Mortise Lock offers robust security and stylish functionality, making it an ideal choice for commercial applications. This lock features a large format IC less core, ensuring compatibility with various access control systems while maintaining high security standards. Designed with a sleek satin stainless steel finish, it not only provides durability but also complements modern architectural aesthetics. Engineered to meet ANSI/BHMI Certified A156.13-2012 standards, the L9050 is classified as Commercial Grade 1, ensuring superior performance in high-traffic areas. Its reversible handing allows for flexible installation, accommodating various door configurations. The lock body is designed to mortise inside the edge of a door with a 2-3/4″ backset, making it suitable for 1-3/4″ thick doors. With a 2-1/8″ rose and a 4-3/4″ lever featuring a 3″ projection, the ergonomic design enhances user experience while ensuring security. Additionally, the lock is UL Listed for 3-hour fire doors, providing peace of mind in emergency situations. Backed by a limited 10-year mechanical and 3-year electro-mechanical warranty, the Schlage L9050J17A630 is a reliable choice for any professional setting.

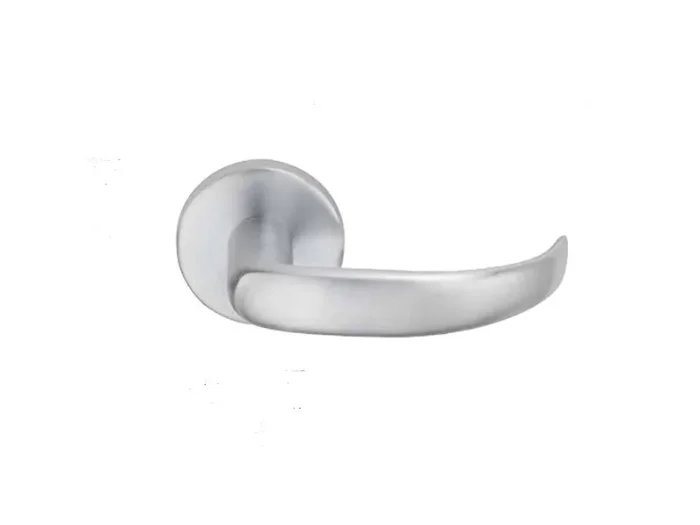

Entry / Office Mortise Lock with Large Format IC Less Core with 17 Lever and A Rose Satin Stainless Steel Finish
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
- Commercial Grade 1
- UL Listed for 3 Hour Fide Door
- ANSI/BHMI Certified A156.13-2012
- Lock Body Mortises Inside the Edge of the Door
- L Series
Attributes
Ansi: A156.13-2017 Series 1000
Ansi Function: F04 – Entry/Office
Baa Qualified: Yes
Backset: 2-3/4″ Backset
Bolt Projection: 3/4″ Latch
Bolt Protection: 3/4″
Burglar Rated: No
Cam Number: L583-255
Cam Type: Schlage L
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Length: 1-1/2″
Cylinder Type: Schlage FSIC Less Core
Dimension: 2-1/8″ Rose with 4-3/4″ Lever and 3″ Projection
Door Range: 1-3/4″
Door Thickness: 1-3/4″
Dust Box: Plastic
Finish: Satin Stainless Steel
Finish Code: 630
Finish : Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9050-Entrance Office Lock
Function Family: Entrance/Office
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Backset Dim: 2-3/4″
Latch Faceplate Dimension: 1-1/4″ x 8″
Latch Type: Dead Latch (Guarded)
Lever Knob Design: 17 – Lever
Lever Knob Design Family: Curved Return Lever
Leverknob Design: 17 Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 3 Years
Lock Face Size: 8″ x 1-1/4″
Manufacturer Function : Latchbolt retracted by knob/lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn. When outside is locked, latchbolt is retracted by key outside or by knob/lever inside. Outside knob/lever remains locked until thumbturn is returned to vertical or unlocked by key. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
Num Pins: 6
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63″
Pack Height 2: 5.63″
Pack Length: 10.38″
Pack Length 2: 10.38″
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38″
Pack Width 2: 5.38″
Pins: 6
Pocket Dimensions: 6-5/8″ x 4-1/2″
Projection: 3″
Restrictions: None
Rose Escutcheon Design: A – Rose
Rose Escutcheon Dimensions: 2-1/8″
Roseescutcheon Design: A Rose
Roseescutcheon Dimensions: 2-1/8″
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8″
Std Strike Number: 10-072 1316 630
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16″
Strike: ANSI Strike
Strike Dimension: 4-7/8″ with 1-1/4″ Lip
Strike Height: 4-7/8″
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4″
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
