Description

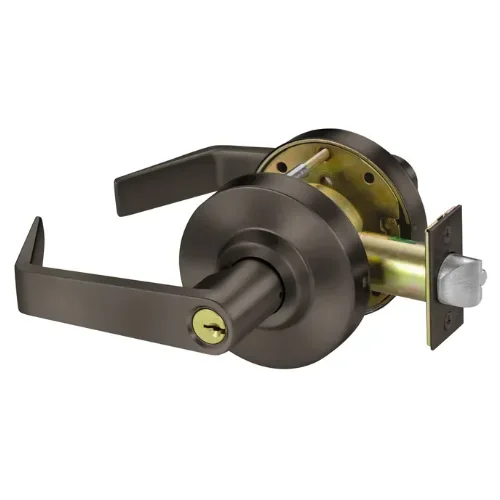

Arrow Lock QL81SR613E-SIC 2-3/4 BS Sierra Lever Entry, Schlage IC Less Core, 2-3/4in Backset, Grade 1, Dark Bronze
Arrow Lock Company QL81SR613E-SIC 2-3/4 BS Entry Sierra Lever offers a perfect blend of security, durability, and style. Designed for both commercial and residential use, this Grade 1 cylindrical lockset features a robust freewheeling lever mechanism that enhances abuse resistance, making it an ideal choice for high-traffic areas. The lock is easy to install with its four-screw design and fits standard door preparations, requiring a 2-1/8″ bore. Constructed with high-quality materials, the QL81 boasts a stainless steel latch with a 1/2″ throw, ensuring reliable operation under various conditions. The latch front measures 1-1/8″ x 2-1/4″ to accommodate a 2-3/4″ backset, while its non-handed design allows for versatile application across different door types, including hollow metal and wood. This model is available in a striking dark oxidized satin bronze finish (613E/US10BE) that combines aesthetic appeal with long-lasting performance. It comes with a solid brass 6-pin cylinder that supports Schlage CS keyways and various cylinder formats, further enhancing security options. Backed by a 10-year limited warranty, the Arrow Lock QL81SR613E-SIC stands as a reliable and stylish choice for your locking needs.
Entry Sierra Lever, Schlage IC Less Core (FSIC), 2-3/4in Backset, Grade 1, 613E/US10BE Dark Oxidized Satin Bronze
Notice: The info below is not item specific.
The QL series grade 1 cylindrical lockset featuring a freewheeling lever for abuse resistance and a 10 year warranty. The QL lever features a four screw install for quick and easy installation.
Features:
- Door Preparation: Requires standard 2-1/8″ (53.97mm) bore through door
- Backset: 2-3/4″ (69.85mm)
- Door Thickness: Fits 1-3/8″ (34.93mm) to 1-3/4″ (44.45mm) doors standard
- Latch: Stainless Steel 1/2″ (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
- Latch Front: 1-1/8″ x 2-1/4″ for 2-3/4″ (69.85mm) backset
- Safety & Security: ANSI/BHMA Grade 1 lock manufactured with high quality materials; specialized functions allow for quick and secure lockdowns
- Exposed Trim: QL Levers are pressure cast zinc measuring 4-3/4″ (120.65mm) in length. QL Roses are wrought brass 3-11/32″ (84.8mm) diameter. Total projection from face of door is 2 17/32″ ( 4.5mm)
- Abuse resistance
- Freewheeling lever
- Economical solution for ADA compliance
- Non-handed
- Cylinder: Solid brass 6 pin, Schlage CS keyway, SFIC, SIC (QL only), Medeco/ASSA LFIC
Non-Cylinder Functions:
- QL01: Passage, closet. Latchbolt operated by lever either side. ANSI No. F75
- QL02: Privacy Bath/Bedroom
- ANSI No. F76A
- Rigid lever
- Latch operated by lever either side except when outside lever is locked by pushing inside button
- Outside lever unlocked by turning inside lever, using emergency key, or closing door
- Inside lever always operates latch
- QL72: Privacy Bath/Bedroom
- ANSI No. F76A
- Latch operated by lever either side except when outside lever is locked by pushing inside button
- Outside lever unlocked by turning inside lever, using emergency key, or closing door
- Inside lever always operates latch
Single Cylinder Functions:
- QL11: Entrance or Office
- ANSI No. F109
- Rigid lever
- Latchbolt operated by lever either side except when outside lever is locked by turn-button inside
- When outside lever is locked, latchbolt operated by key outside or turning inside lever
- Inside button must be manually released
- QL12: Storeroom or Closet
- ANSI No. F86
- Rigid lever
- Outside lever always rigid
- Latchbolt operated by key in outside lever, or by turning inside lever
- QL17: Classroom
- ANSI No. F84
- Rigid lever
- Latchbolt operated by lever either side except when key outside locks outside lever
- Inside lever always free
- Key outside locks/unlocks outside lever only
- QL81: Entrance or Office
- ANSI No. F109
- Latchbolt operated by lever either side except when outside lever is locked by turn-button inside
- When outside lever is locked, latchbolt operated by key outside or turning inside lever
- Inside button must be manually released
- QL82: Storeroom or Closet
- ANSI No. F86
- Outside lever always rigid
- Latchbolt operated by key in outside lever, or by turning inside lever
- QL87: Classroom
- ANSI No. F84
- Latchbolt operated by lever either side except when key outside locks outside lever
- Inside lever always free
- Key outside locks/unlocks outside lever only
Double Cylinder Functions:
- QL33: Utility, Asylum, Institutional
- ANSI No. F87
- Rigid lever
- Deadlocking latchbolt operated by key inside or outside
- Handle inside and outside are inoperative at all times
- QL93: Utility, Asylum, Institutional
- ANSI No. F87
- Deadlocking latchbolt operated by key inside or outside
- Handle inside and outside are inoperative at all times
- QL97: Intruder Classroom
- ANSI No. F110
- Deadlocking latch bolt operated by lever from either side
- Key either inside or outside locks or unlocks outside lever
- Inside lever always operates latchbolt
Specifications:
- ANSI/BHMA Code: A156.2
- ANSI/BHMA Series: Series 4000
- Backset Depth (Standard): 2-3/4″
- Cylinder Format: Conventional, small format, large format
- Cylinder Pins: 6 pin
- Door Thickness (Standard): 1-3/4″
- Door Type: Hollow metal, wood
- Handing: Non-handed
- Latchbolt Throw: 1/2″
- Maximum Backset: 2-3/4″
- Minimum Backset: 2-3/4″
- Maximum Door Thickness: 1-3/4″
- Minimum Door Thickness: 1-3/8″
- Number of Keys: 2
- Strike Type: ANSI curved lip
- Warranty: 10-year limited warranty
Finishes:
- 03/605 – Bright brass, clear coated
- 10BE/613E – Dark oxidized satin bronze-equivalent
- 26D/626 – Satin chromium plated over nickel
- BSP – Black suede powder coat, sprayed
Attributes
Alternate Codes: QL81SR613E-SIC 2-3/4 BS, QL81SR613ESIC234BS
Category: Commercial Locks, Cylindrical Levers, Lock Sets
