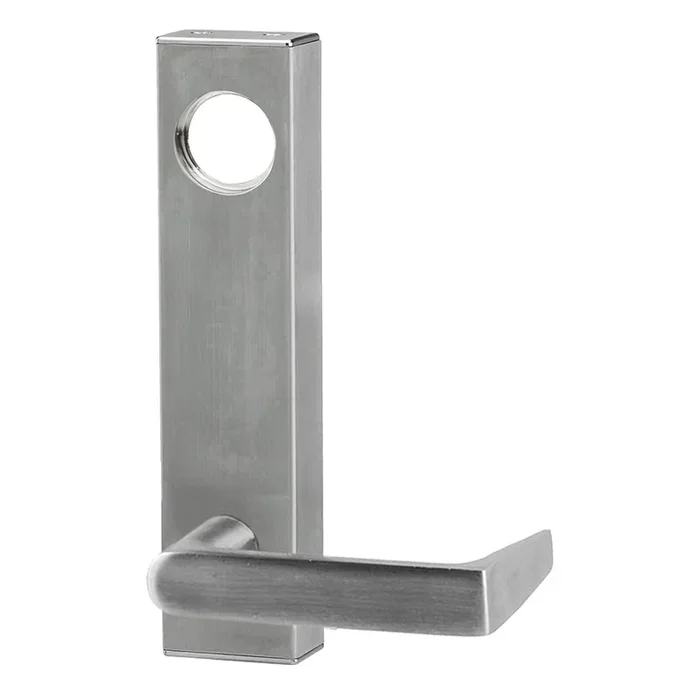

Adams Rite 3080E-03-0-3U-30-US32D Electrified Entry Trim
Adams Rite 3080E-03-0-3U-30-US32D Entry Trim – Electrified is designed for seamless outside activation of doors equipped with any Adams Rite exit device and deadlatch. This robust trim features a square lever handle with a cylinder hole, delivering both functionality and security in a sleek satin stainless steel finish (630/US32D). Operating on a 12VDC electrical system, the trim is fail secure, ensuring that the handle remains locked during power loss, thereby maintaining safety. The innovative breakaway clutching mechanism protects the handle from vandalism and forced entry, enabling reliable operation in both directions. This model’s solid construction meets Grade 1 standards, ensuring durability and longevity for commercial applications. It is non-handed, allowing for versatile installation on various door configurations. The 3080E series also provides flexibility, as the handle components can be changed without needing to replace the entire trim. For added convenience, it can be ordered with or without a cylinder hole, and the necessary mortise cylinder is sold separately. Ensure compliance with local codes by verifying the return distance of the lever handles, which is designed to return within ½” of the door face. Trust in Adams Rite for quality entry solutions tailored to meet the needs of both professionals and discerning homeowners.
Entry Trim – Electrified
Electrified Entry Trim, 03 Square Lever, With Cylinder Hole, Universal, 12VDC, Fail Secure, Satin Stainless Steel
The 3080 Series Entry Trim provides outside activation for doors with any type of Adams Rite exit device and deadlatch. The locked handle is protected from vandalism and forced entry with a breakaway clutching mechanism.
Provides outside activation of doors that have any type of Adams Rite Exit Device.
Breakaway clutching mechanism protects the locked handle from vandalism or forced entry, in either direction. All models share the same core components, so handles can be changed without having to replace the entire trim. Solid construction meets Grade 1 standards.
- Standard Handles: The 3080-01, -02, and -03 lever handles are designed to return within ½” of the door face. Handles in the Designer Series do not have this same feature. Please verify with local code requirements to ensure compliance.
- Options: Can be ordered with or without a hole for cylinder. Order standard mortise cylinder with MS® cam separately. Order 4603 Rectifier, 4605/4606 Transformer or PS-1 Power Supply separately.
Attributes
Commercial Residential: Commercial
Cylinder Type: 1″ Mortise with MS Cam
Device Type: Trim
Electric Options: Fail Secure
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Handing: Non-Handed
Includes Cylinders: No
Installation: Commercial
Pack Qty: 1
Pbs Options: 10399484,10399342,10396402,157407305
Series: 3080 Entry Trim
Subtype: Exit Device Trim
Trim Design: 03 Lever
Trim Type: Entry Lever
Type: Exit Devices
Unit of Measure: Each
Resources
- 3080 Entry Trim Cut Sheet
- 3081/82/83 Trim Installation Instructions
- Mechanical to Electrical – Making the Jump
