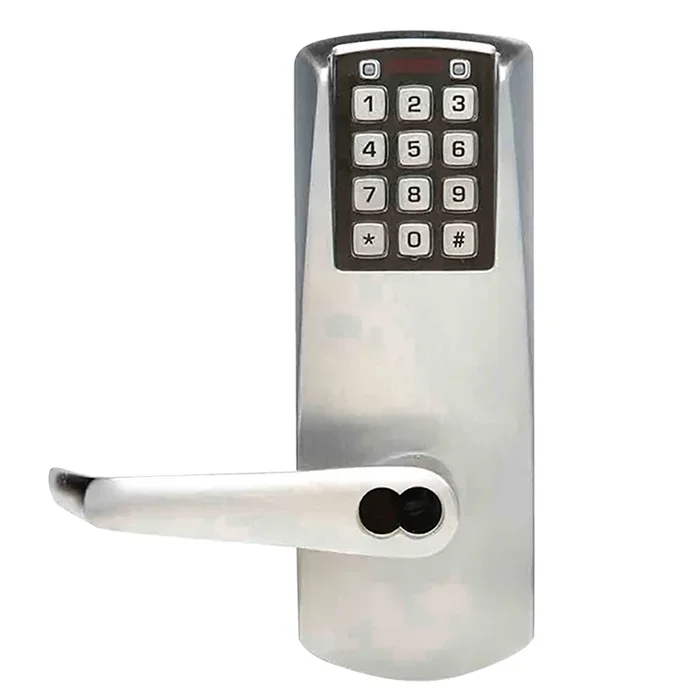

Dormakaba E2067BLL-626-41 Eplex 2000 Mortise Lock Instructions
Kaba Access E2067BLL-626-41 Eplex 2000 Mortise Lock offers a robust solution for modern security needs with its heavy-duty commercial Grade 1 construction. Designed for both indoor and outdoor applications, this mortise lock features a solid cast exterior housing and levers, ensuring durability and long-lasting performance. With the capacity to manage up to 100 access codes and log 1,000 audit events, it streamlines access control while eliminating the hassles of traditional keys and cards. The E-Plex 2000 is non-handed, pre-assembled for left-hand door installation, and easily adaptable for right-hand doors in the field. It accommodates various backset options, including a 2¾” (70 mm) backset for mortise installations. The lock includes both ANSI A115.3 “T” and A115.2 ASA strikes, further enhancing its versatility. Additional features include a key-in-lever cylinder compatible with the Schlage “C” keyway and small format interchangeable core preparation. Finished in satin chrome (626/US26D), this lock not only offers security but also complements a range of commercial environments. With a minimum stile requirement of 5″ (127 mm) and a compact design weighing just 11 lbs, the Kaba Access E2067BLL-626-41 is an ideal choice for enhancing security without compromising aesthetics.
Eplex 2000 Mortise Lock
E-Plex 2000 Mortise Lock, 100 Access Codes, 1,000 Audit Events, With Deadbolt, 6/7-Pin SFIC Prep, Less Core, Satin Chrome
E-Plex 2000 Exit Trim, 100 Access Codes, 1,000 Audit Events, Von Duprin 98/9975 Mortise Devices, 6/7-Pin SFIC Prep, Less Core, Satin Chrome
Eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 access codes
- Construction:Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
- Handing:Non-handed, pre-assembled for left-hand door installation—easily changed in the field
- Backset:
- Cylindrical:2¾” (70 mm) backset, 2⅜” (60 mm) backset
- Mortise:2¾” (70 mm) backset
- Exit Trim Model: Varies by Exit Device
- Latches:
- Cylindrical Models: ½” (13 mm) throw latch, ¾” (19 mm) throw latch (optional)
- Mortise Models: ¾” (19 mm) latch, 1″ (25 mm) deadbolt (optional)
- Strikes:Cylindrical locks packaged standard with both ANSI A115.3 “T” Strike and A115.2 ASA Strike
- Minimum Stile Required:5″ (127 mm)
- Key-in-Lever Cylinder:Kaba 1539 6-pin cylinder—Schlage “C” Keyway
- Interchangeable Core:Small format—Best and equivalent (6 or 7-pin length); cylinder not included
Attributes
Manufacturer surcharge: 7.0%
Base Material: Brass or Bronze
Commercial Residential: Commercial
Cylinder Type: SFIC Prep Less Core
Finish: 626/US26D
Finish Family: Matte Silver
Installation: Commercial
Lock Platform: Mortise Lock with Keypad Trim
Pack Height: 5.75″
Pack Length: 12″
Pack Qty: 1
Pack Width: 10.25″
Series: E-Plex 2000 Series
Series Name: E-Plex
Ship Weight: 11 lbs.
Subtype: Mortise Locks with Trim
Type: Integrated and Pushbutton
Unit of Measure: Each
Resources
- E-Plex 2000 / E-Plex 2000 with PowerStar How to Hard Reset a pre-2012 Lock (Old Method)
- E-Plex 2000: Perform a Hard Reset When You Know the Master Code (2012-Present Locks)
- E-Plex 2000: Perform a Hard Reset when the Master Code is Unknown. (2012-Present Locks)
- Kaba E-Plex / PowerPlex Electronic Pushbutton Lock – 2000 Series Installation Instructions
- Kaba E-Plex / PowerPlex Electronic Pushbutton Lock – 2000 Series Operations Manual
- Kaba E-Plex / PowerPlex Electronic Pushbutton Lock – E2000/P2000/E5000 Series Lock Set Up Guide
- Lock Command Options with s – E-Plex/PowerPlex 2000 Series
- Technical specifications for E-Plex 2000 Electronic Pushbutton Locks
