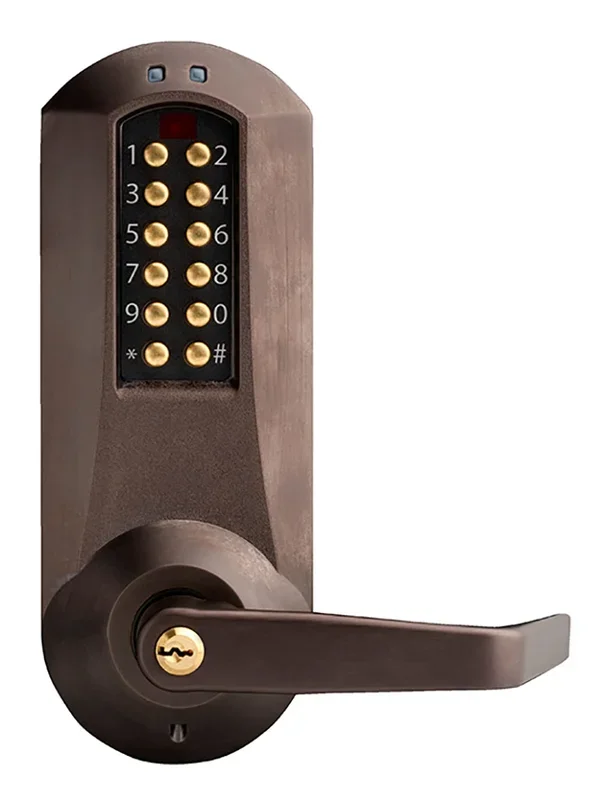

Dormakaba E5210XSWL-744-41 Eplex 5200 Cylindrical Lock
Kaba Access Dormakaba E5210XSWL-744-41 Eplex 5200 Cylindrical Lock is engineered for superior security and convenience in commercial environments. This heavy-duty Grade 1 lock features solid cast housings and zinc levers, ensuring durability for extensive indoor and outdoor use. With the ability to store up to 3,000 access codes and maintain 30,000 audit events, it offers robust tracking and management of access. Designed for easy installation, the E-Plex 5200 is non-handed and pre-assembled for left-hand doors, with field-changeable handing for flexibility. The cylindrical lockset accommodates two backset options: 2¾” (70 mm) and 2⅜” (60 mm), while the latch options include a ½” (13 mm) throw latch and an optional ¾” (19 mm) throw latch. The exit device compatibility ensures a seamless integration with various exit device models. Available in an elegant dark bronze finish with brass accents, the E-Plex 5200 not only enhances security but also adds a refined look to your doors. Suitable for a minimum stile width of 5″ (127 mm), this device is perfect for commercial applications where reliable access control is essential.
Eplex 5200 Cylindrical Lock
E-Plex 5200 Exit Trim, 3,000 Access Codes, 30,000 Audit Events, KIL, Schlage C Keyway, Dark Bronze with Brass Accents
E-Plex 5200 Exit Trim, 3,000 Access Codes, 30,000 Audit Events, KIL, Schalge C Keyway, Dark Bronze with Brass Accents
E-Plex 5200 Series provides exterior access by combination, while allowing free egress.
- Construction:Extra heavy-duty Grade 1 lock; cylindrical lockset, solid cast housings; solid cast zinc levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
- Handing:Non-handed, pre-assembled for left-hand door installation—easily changed in the field
- Backset:
- Cylindrical: 2¾” (70 mm) backset, 2⅜” (60 mm) backset
- Mortise: 2¾” (70 mm) backset
- Exit Trim Model:Varies by Exit Device
- Cylindrical: 2¾” (70 mm) backset, 2⅜” (60 mm) backset
- Latches:
- Cylindrical Models: ½” (13 mm) throw latch, ¾” (19 mm) throw latch (optional)
- Mortise Models: ¾” (19 mm) latch, 1″ (25 mm) deadbolt (optional)
- Exit Device:Not supplied (see list above for compatibility)
- Exit Device Latch:Supplied with Exit Device
- Exit Device Hub Rotation:Up to 60º
- Minimum Stile Required:5″ (127 mm)
Attributes
Manufacturer surcharge: 7.0%
Base Material: VARIES
Commercial Residential: Commercial
Cylinder Type: Conventional Cylinder
Finish: 744
Finish Family: Dark Bronze
Installation: Commercial
Lock Platform: Exit Device Trim, Rim with Keypad
Pack Qty: 1
Pins: 6
Series: E-Plex 5200 Series
Series Name: E-Plex
Std Keyway: C
Subtype: Exit Device Trim, Rim
Type: Integrated and Pushbutton
Unit of Measure: Each
Resources
- Kaba E-Plex Electronic Pushbutton Lock – 5000/5200/5600/5700 Series 1.25 Mortise Installation Inst
- Kaba E-Plex Electronic Pushbutton Lock – 5000/5200/5600/5700 Series Exit Installation Instructions
- Lock Command Options with s – E-Plex 3200/5200
- Technical specifications for E-Plex 5200 Electronic Pushbutton Locks
