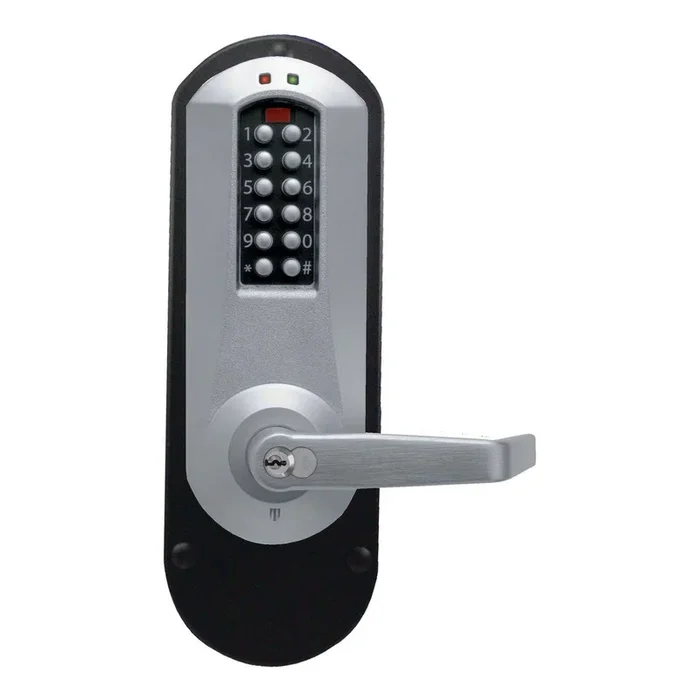

Dormakaba E5210BWL-626-41 Eplex 5200 Exit Trim
Kaba Access Dormakaba E5210BWL-626-41 Eplex 5200 Exit Trim offers a robust solution for secure access control while ensuring safe egress. With the capability to store 3,000 access codes and log up to 30,000 audit events, this exit trim is designed for high-traffic environments requiring reliable security. Constructed as an extra heavy-duty Grade 1 lock, it features a cylindrical lockset with solid cast housings and durable zinc levers. This ensures durability and extensive use in both indoor and outdoor applications. The non-handed design allows for easy installation on left-hand doors, which can be readily adjusted in the field to meet your specific needs. The Eplex 5200 series is compatible with various exit devices, providing flexibility for different configurations. The cylindrical models include a standard ½” throw latch, with an optional ¾” throw latch available. For mortise models, you can opt for a ¾” latch or a 1″ deadbolt for added security. With a sleek satin chrome finish (626/US26D), this exit trim not only enhances security but also adds a modern touch to your commercial space. The minimum stile requirement is 5″ (127 mm), ensuring compatibility with a wide range of door applications. Choose the Eplex 5200 for a blend of functionality and style.
Eplex 5200 Exit Trim
E-Plex 5200 Exit Trim, 3,000 Access Codes, 30,000 Audit Events, 6/7-Pin SFIC Prep, Less Core, Satin Chrome
E-Plex 5200 Series provides exterior access by combination, while allowing free egress.
- Construction:Extra heavy-duty Grade 1 lock; cylindrical lockset, solid cast housings; solid cast zinc levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
- Handing:Non-handed, pre-assembled for left-hand door installation—easily changed in the field
- Backset:
- Cylindrical: 2¾” (70 mm) backset, 2⅜” (60 mm) backset
- Mortise: 2¾” (70 mm) backset
- Exit Trim Model:Varies by Exit Device
- Cylindrical: 2¾” (70 mm) backset, 2⅜” (60 mm) backset
- Latches:
- Cylindrical Models: ½” (13 mm) throw latch, ¾” (19 mm) throw latch (optional)
- Mortise Models: ¾” (19 mm) latch, 1″ (25 mm) deadbolt (optional)
- Exit Device:Not supplied (see list above for compatibility)
- Exit Device Latch:Supplied with Exit Device
- Exit Device Hub Rotation:Up to 60º
- Minimum Stile Required:5″ (127 mm)
Attributes
Manufacturer surcharge: 7.0%
Base Material: Brass or Bronze
Commercial Residential: Commercial
Cylinder Type: SFIC Prep Less Core
Finish: 626/US26D
Finish Family: Matte Silver
Installation: Commercial
Lock Platform: Exit Device Trim, Rim with Keypad
Pack Qty: 1
Series: E-Plex 5200 Series
Series Name: E-Plex
Subtype: Exit Device Trim, Rim
Type: Integrated and Pushbutton
Unit of Measure: Each
Resources
- Kaba E-Plex Electronic Pushbutton Lock – 5000/5200/5600/5700 Series 1.25 Mortise Installation Inst
- Kaba E-Plex Electronic Pushbutton Lock – 5000/5200/5600/5700 Series Exit Installation Instructions
- Lock Command Options with s – E-Plex 3200/5200
- Technical specifications for E-Plex 5200 Electronic Pushbutton Locks
