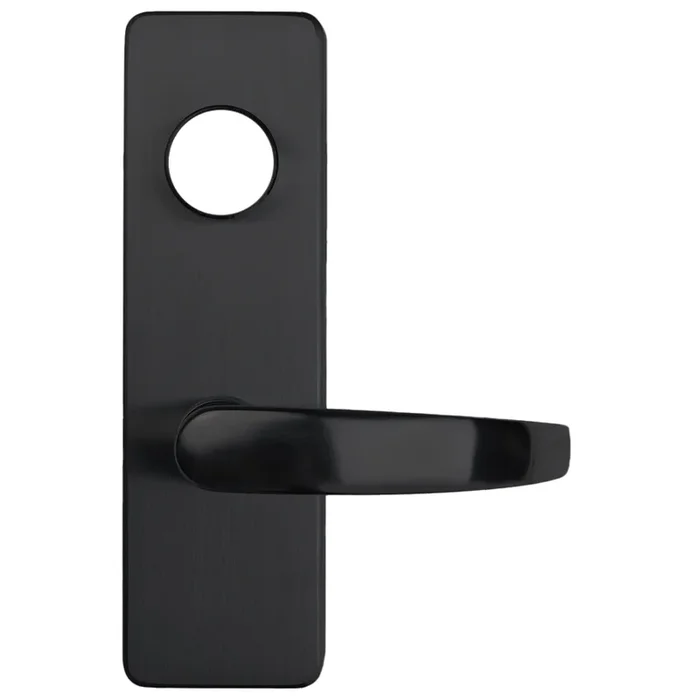

Detex EUV-FSE-S-693-RHR EU Electrified Trim S Lever, Fail Secure, for 70/71/80/81/82/83/87 Series, Black
Detex Corporation EUV-FSE-S-693-RHR Electrified Trim offers a robust solution for access control and security needs. Designed specifically for use with Detex’s wide stile exit devices, this fail secure (FSE) trim is perfect for applications including stairwell doors, elevator lobbies, and more. Its sleek black finish (693/SPBLK) not only enhances aesthetics but also ensures durability in high-traffic environments. This trim features a clutching mechanism that limits vandalism while providing a key override for emergency access during power failures. The spring-loaded tailpiece and vandal-resistant break-away lever design add an extra layer of security, making it ideal for installations in schools, hospitals, and retail spaces.Measuring 9-1/16 inches by 2-3/4 inches, it retrofits over existing Detex lever trims, offering a hassle-free upgrade to your security system. With a continuous duty rating of 24VDC/150mA and 12VDC/310mA, the EUV-FSE-S-693-RHR efficiently monitors the lever’s usage, sending signals to your access control system when activated.Notably, this trim is not field reversible; specification of handing is required at the time of order. Enhance your building’s security with the Detex EUV-FSE-S-693-RHR, where safety meets functionality.
EU Electrified Trim, S Lever on Escutcheon, Fail Secure (FSE), Less Mortise Cylinder, for 70/71/80/81/82/83/87 Series (Wide Stile CVR Exit Devices), RHR Right Hand Reverse, 9-1/16in x 2-3/4in, 693/SPBLK Black Painted
Notice: The info below is not item specific.
Provides remote means of locking or unlocking a door for authorized entry, access control, security or safety needs when used in conjunction with any Detex wide stile rim (10 series), surface vertical rod (20 series), mortise (30 series – specify EUxDM) or concealed vertical rod (70/71, 80/81, 82/83 series – specify EUV) exit device. Perfect for use on fire-rated doors, such as stairwell doors, allowing emergency entry after fire alarm activates fail safe trim. Excellent source of security for stairwell doors, elevator lobbies, or other access control systems used in installations in schools, universities, hospitals, retail, industrial, etc.
Features:
- Retrofits over existing Detex lever trim
- Clutching trim limits vandalism
- Key override for emergency entrance during loss of power (FSE)
- Cylinder override
- Spring loaded tailpiece
- Vandal resistant break-away type lever
Mechanical Options:
- Not field reversible
- EU: Comes standard as D trim, with S style lever and fail secure (FSE), for use with Detex wide stile (10 series) rim or (20 series) surface vertical rod device
- EU x DT or DU: Comes with T style or U style lever, for use with Detex wide stile (10 series) rim or (20 series) surface vertical rod device
- EUV: Comes standard as D trim, with S style lever and fail secure (FSE), for use with Detex wide stile (70/71, 80/81, 82/83 series) concealed vertical rod device
- EUV x DT or DU: Comes with T style or U style lever, for use with Detex wide stile (70/71, 80/81, 82/83 series) concealed vertical rod device
- EU x DM: Comes with S style lever, for use with Detex (30 series) mortise exit device
- EU x DMT or DMU: Comes with T style or U style lever, for use with Detex (30 series) mortise exit device
- KN: Knurling available on all levers
Electrical Options:
- Fail Secure (FSE): During power failure, device will be locked (security option) ex: EU x FSE x DU
- Fail Safe (FSA): During power failure or fire alarm activation, the trim will always be unlocked. (Life safety option) ex: EU x FSA x DM
- Not field selectable
Specifications:
- 24VDC/150ma continuous duty
- 12VDC/310ma continuous duty
- Monitors the lever and sends a signal to access control when lever is rotated
- Not retrofittable or field reversible – must specify handing
Finishes:
- 605/US3 – Polished brass
- 606/US4 – Brushed brass
- 611/US9 – Polished bronze
- 612/US10 – Brushed bronze
- 613/US10B – Oil rubbed bronze
- 693/SPBLK – Painted black
- 695/SP313 – Painted dark bronze
- 629/US32 – Polished stainless steel
- 630/US32D – Brushed stainless steel
Attributes
Alternate Codes: DTXEUV-FSE-S-RHR-693, DTXEUVFSESRHR693, EUVFSESRHR693
Category: Panic Devices & Exit Alarms, Panic Device Trims
Compatibility: 70/80 Series Concealed Vertical Rod Devices
Door Application: Panic Devices & Exit Alarms
Fail Safe/ Fail Secure: FSE- Fail Secure
Finish Code: 693
Finish Color: Black, Black Powder Coat, Sprayed Black
Handing: Right Handed Reverse
Lever Design: S – Detex
Manufacturer: Detex Corporation
Voltage: 24
Voltage Type: VDC – Direct
