Description

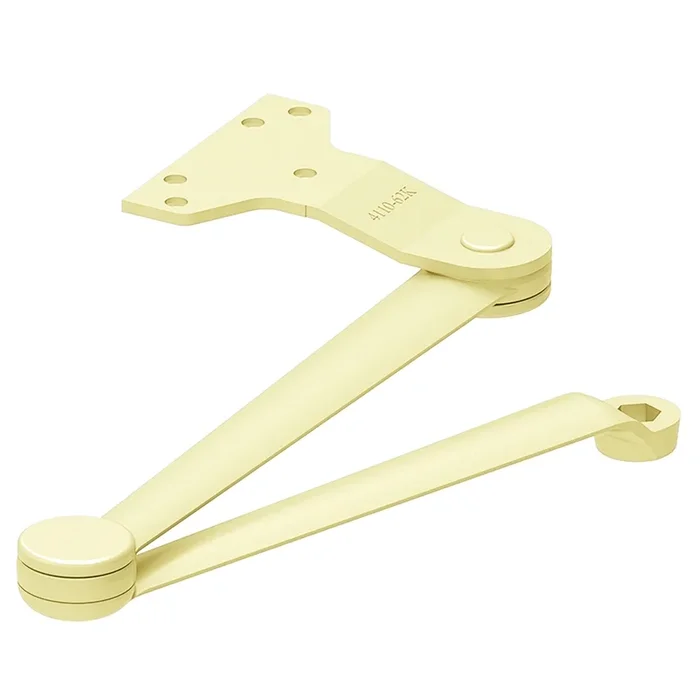

LCN 4040XP-3077EDA 632 Extra Duty Arm US3
LCN 4040XP-3077EDA 632 Extra Duty Arm US3 is engineered for the most demanding environments, making it the ideal choice for high-traffic applications such as institutions and commercial spaces. This heavy-duty closer features a forged solid steel main and forearm, ensuring exceptional durability and strength. With its bright brass finish, it not only performs well but also complements various architectural styles. Designed to withstand rigorous use, the 4040XP boasts a 44% increased bearing load capacity and the strongest pinion ever, with a 3/4″ journal diameter. The innovative V-shield™ seal offers 20% longer life, enhancing reliability in real-world conditions. The closer’s non-handed design allows for versatile installation options, accommodating hinge side, top jamb, or parallel arm configurations on either right or left swinging doors. Tested and certified under ANSI Standard A156.4, grade one, this closer meets ADA requirements and is UL and cUL listed for self-closing doors without hold-open features. Additionally, it offers fast and accurate installation with the LCN® Fast™ Power Adjust system. Backed by a 30-year limited warranty, the LCN 4040XP-3077EDA is a robust solution that combines advanced technology with exceptional value for your door control needs.
Extra Duty Arm US3
Extra Duty Arm, Forged Solid Steel Main and Forearm, Bright Brass Finish, Non-Handed
LCN’s most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCNbuilt the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
- 44% increased bearing load capacity
- Strongest pinion ever, at 3/4″ journal diameter
- Widest bearing ever,at 5/8″
- Stronger pinion teeth
- New V-shield™ seal with 20% longer life
- XP = eXtra Protection in real world applications
- Cast Iron
- Forged Steel Arm
- Double Heat Treated Steel Pinion
- All Weather Fluid
- Non-Handed
- LCN® Fast™ Power Adjust
- Fast & Accurate Installation
- UL & cUL Listed
- Tested and certified under ANSI Standard A156.4, grade one
- Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0″
- Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- UL and cUL listed for self-closing doors without hold-open
- 4040XP can be used with all 4040 accessories
Attributes
Manufacturer surcharge: 4.5%
Application: For 4040XP Series Door Closers
Baa Qualified: Yes
Base Material: Brass
Commercial Residential: Commercial
Country of origin: USA
Finish: 605/US3
Finish Family: Polished Brass
Grade: Grade 1
Handing: Non-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 30 Years
Mounting Style: Parallel Arm
Origin: USA
Pack Qty: 1
Series: 4040XP Series Surface Mounted Closers
Subtype: Door Closer Arms
Type: Door Closers and Operators
Unit of Measure: Each
Resources
- 4040XP Brochure
- 4040XP Feature Enhancements
- 4040XP Series Cut Sheet
- 4040XP Series Surface Mounted Closers Cut Sheet
- 4040XP/4041DA Installation Instructions
- LCN 4000 Series Catalog
- LCN 4040XP Closer Installation Video
- LCN 4040XP Series Infographic
- LCN 4040XP/4041 DA 120 Degree Top Jamb Push Side Mount Installation Guide
- LCN 4040XP/4041 DA CUSH 85-90-100-110 Degree Push Side Mount Installation Guide
- LCN 4040XP/4041DA 120 Degree & 180 Degree Pull Side Installation Guide
- LCN 4040XP/4041DA Drop Plate Installation Guide
- LCN 4040XP/4041DA EDA 110-180 Degree Installation Guide
- LCN Closers & Auto Operators Installation Guide
- LCN Closers & Automatic Operators Parts Manual
- Von Duprin Finishes Chart
