Description

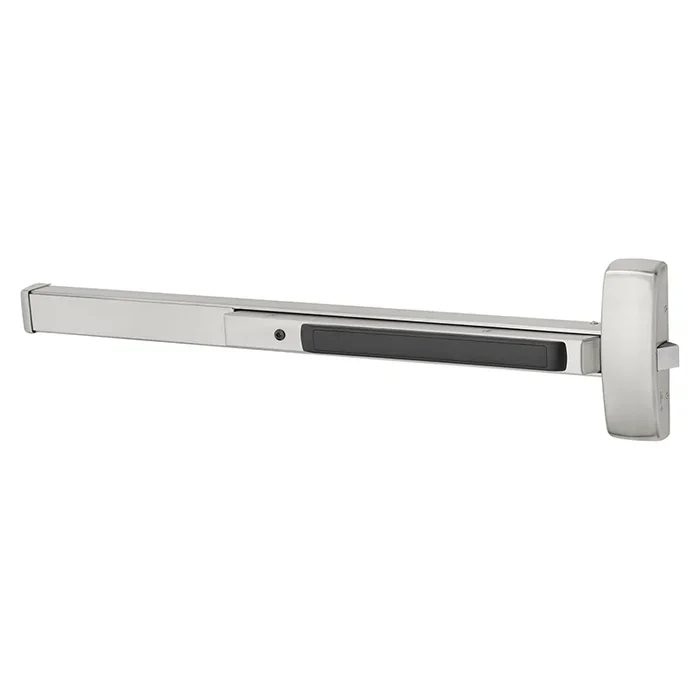

Sargent 8888G32D Heavy Duty Rim Exit Device for 43″-48″ x 7′ Door, Satin Stainless Steel
Sargent 8888G32D Extra Heavy Duty Rim Exit Only Exit Device is engineered for durability and reliability, making it an ideal choice for commercial and industrial applications. Designed to fit doors measuring 43″ to 48″ wide and 7′ tall, this exit device features a satin stainless steel finish that not only enhances aesthetics but also provides long-lasting protection against wear and tear. With its modular construction and maintenance-free design, the Sargent 8888G32D minimizes the need for ongoing upkeep while ensuring dependable performance. Its design includes few moving parts, which contributes to its longevity and reduces the likelihood of mechanical failure. This device is ANSI/BHMA Grade 1 certified and is UL Fire and Panic listed, ensuring compliance with stringent safety standards. The exit device has a device length of 46″, suitable for doors with a thickness of 1-3/4″. It is specifically designed as an Exit Only function, making it an effective solution for emergency egress in various building types. The Sargent 8888 Series is backed by a limited 5-year warranty, highlighting its commitment to quality and customer assurance. Whether for new installations or retrofits, this exit device stands out as a reliable choice for building professionals and security-conscious homeowners alike.
Extra Heavy Duty Rim Exit Only Exit Device for 43″ to 48″ x 7′ Door Satin Stainless Steel Finish
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are “key” to the security of them all.
- Device & trim sold separately; easy to mix and match
- Designed for standard width stile applications on wood and metal doors
- 7 functions available as determined by the trim function
- 3 trim designs available:
- 700 ET Controls
- 88 Lever & Rose trim
- Pull trims
- Single and double door applications with a mullion
- UL Fire and Panic listed
- Available in rim, mortise, surface vertical rod and concealed vertical rod
- ANSI/BHMA Grade 1
- Modular construction, maintenance-free design
- Few moving parts
- 7 Functions: available as determined by the trim function
Attributes
Accessible: No
Ada Compliance: No
Alternate Codes: 142841, 8888G32D
Ansi: ANSI/BHMA A156.3
Baa Qualified: Yes
Bar Style: Push Bar
Burglar Rated: No
Category: Exit Devices
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: USA
Design: Rim Device
Device Length: 48 In.
Device Type: Rim
Dimension: 46″
Dogging: Hex Key
Dogging Options: Hex Key Dogging
Door Application: Panic Devices
Door Material: Metal or Wood
Door Thickness: 1-3/4″ to 2-1/4″
Door Type: Metal, Wood
Door Width: 48″
Exit Device Type: Rim Exit
Finish: Satin Stainless Steel
Finish Code: US32D
Finish Color: Satin Stainless Steel
Finish : Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Function: Exit Only
Grade: Grade 1
Hand: Non-Handed
Handing: Non-Handed
Hazardous Material: NO
Includes Cylinder: No
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 5 Years
Manufacturer Warranty: Limited 5 Year Warranty
Material: Stainless Steel
Mechanical Function: Universal
Minimum Stile Size: 4-1/2″ Minimum Stile Width
Minimum Style Size: 4-3/4″
No Of Inners: 1
Order_ Qty: 1
Origin: USA
Pack Height: 6″
Pack Length: 51″
Pack Qty: 1
Pack Volume: 2295 in³
Pack Width: 7.5″
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 8888 Series
Ship Weight: 15 lbs.
Strike Standard: 649
Subcategory: Rim Exit Devices
Subtype: Exit Device
Supplier: Sargent
Trim Type: Less trim
Type: PANIC DEVICES & EXIT ALARMS
Ul Listing: UL10C & UL305
Ul Listing Type: UL10C and UL305
Unit of Measure: Each
