Description

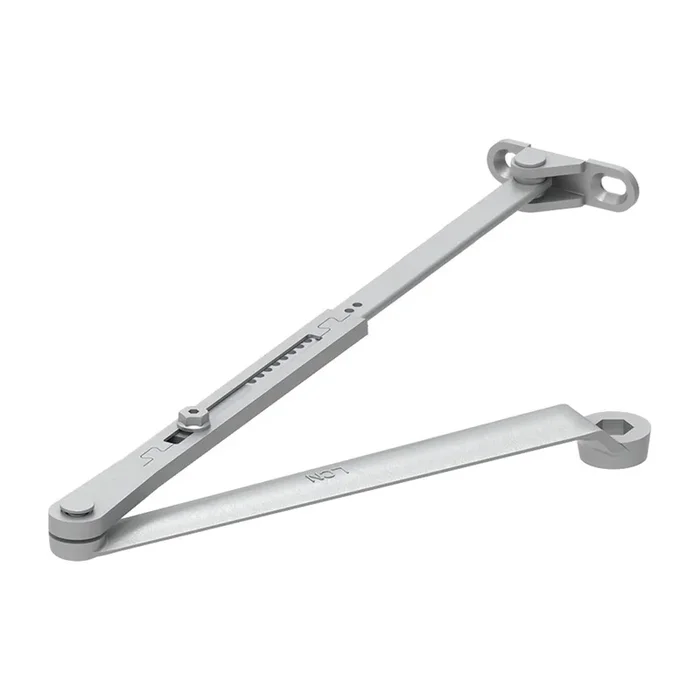

LCN 4040XP-3077XL 689 Extra-Long Regular Arm AL Assembly
LCN 4040XP-3077XL 689 Extra-Long Regular Arm AL offers exceptional durability and versatility, making it the ideal choice for high-traffic institutional and commercial environments. This heavy-duty closer is designed to withstand the rigors of demanding applications while providing reliable performance. Its robust construction includes a cast iron body and a forged steel arm, ensuring longevity even in the most challenging conditions. The LCN 4040XP features an extra-long arm with an aluminum painted finish, enhancing both aesthetics and functionality. Equipped with a strong pinion boasting a 3/4″ journal diameter and the widest bearing at 5/8″, this door closer delivers a 44% increase in bearing load capacity. The innovative V-shield™ seal extends service life by 20%, while all-weather fluid ensures operation in varying climates. This non-handed closer is adaptable for hinge side, top jamb, or parallel arm mounting on both right and left swinging doors. It meets ADA requirements and is UL and cUL listed, ensuring compliance with safety standards. With a generous 30-year limited warranty, the LCN 4040XP-3077XL guarantees peace of mind and exceptional value for your door hardware needs.
Extra-Long Regular Arm AL
Extra Long Arm, Aluminum Painted Finish
LCN’s most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCNbuilt the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
- 44% increased bearing load capacity
- Strongest pinion ever, at 3/4″ journal diameter
- Widest bearing ever,at 5/8″
- Stronger pinion teeth
- New V-shield™ seal with 20% longer life
- XP = eXtra Protection in real world applications
- Cast Iron
- Forged Steel Arm
- Double Heat Treated Steel Pinion
- All Weather Fluid
- Non-Handed
- LCN® Fast™ Power Adjust
- Fast & Accurate Installation
- UL & cUL Listed
- Tested and certified under ANSI Standard A156.4, grade one
- Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0″
- Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- UL and cUL listed for self-closing doors without hold-open
- 4040XP can be used with all 4040 accessories
Attributes
Manufacturer surcharge: 4.5%
Application: For 4040XP Series Door Closers
Baa Qualified: Yes
Base Material: Varies
Commercial Residential: Commercial
Country of origin: USA
Finish: 689
Finish Family: Matte Silver
Grade: Grade 1
Handing: Non-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 30 Years
Mounting Style: Top Jamb
Origin: USA
Pack Qty: 1
Series: 4040XP Series Surface Mounted Closers
Subtype: Door Closer Arms
Type: Door Closers and Operators
Unit of Measure: Each
