Description

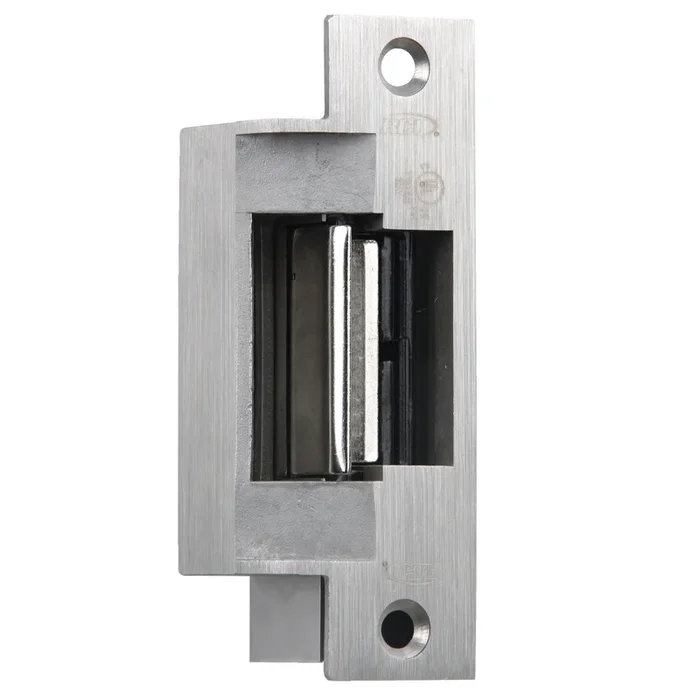

RCI F1114-05 32D F1 Series Fire-Rated Strike
RCI F1114-05 32D F1 Series Fire-Labeled Strike offers a reliable solution for securing fire-rated openings with its robust design and functionality. This fire-rated electric strike features a 4-7/8″ faceplate crafted from durable stainless steel, making it ideal for use in hollow metal frames. Designed to accommodate latch projections of 1/2″ (12.7 mm), 5/8″ (16 mm), or 3/4″ (19 mm), it also provides up to 1/4″ (6.4 mm) of horizontal adjustment to relieve side-load pressure and ensure precise latch alignment. The RCI F1114-05 is UL 1034 burglary-resistant listed and boasts a fire rating of 1-1/2 hours, certified to ANSI/BHMA standard A156.31, Grade 1, with an impressive endurance rating of 500,000 cycles. Operating on 12 VAC/DC and featuring a fail-secure function, this strike is perfect for commercial applications, including public buildings and industrial environments. With a matte silver finish (630/US32D) and a flat face with square corners, it blends seamlessly into various architectural styles. This electric strike is not just a security measure; it’s an essential component for controlled access in fire-rated scenarios, ensuring safety and reliability for years to come.
F1 Series Fire-Labeled Strike
Fire Rated Electric Strike, 4-7/8″ Faceplate, For 3/4″ Projection Latches, 12 VAC/DC, Fail Secure, Satin Stainless Steel
F1 Centerline Strikes Features stainless steel faceplate with square corners ideal for hollow metal frames . Accommodates 1/2″ (12 .7mm), 5/8″ (16mm) or 3/4″ (19mm) latch projection Up to 1/4″ (6 .4mm) horizontal adjustment, relieves side-load pressure, ensuring proper latch alignment. UL 1034 burglary-resistant Listed CAN/ULC S104 & UL 10C, 1-1/2 hour fire-rating Listed. Certified to ANSI/BHMA standard A156 .31, Grade 1, endurance 500,000 cycles
Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments
For use in: Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments
Attributes
Manufacturer surcharge: 9.0%
Amp Draw: .15 Amps at 12VAC, .20 Amps at 12VDC
Base Material: Stainless Steel
Commercial Residential: Commercial
Faceplate Shape: Flat Face, Square Corners
Faceplate Size: 4-7/8″ x 1-1/4″
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
For Use With: Cylindrical Locks, Mortise Exit and Latch Locks
Frame Application: Metal
Function: Fail Secure
Installation: Commercial
Limited Warranty: 5 Years
Operating Voltage: 12 VAC/DC
Pack Qty: 1
Series: RCI Electric Strikes
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
