Sargent LC827324VLNL26D Fail Secure 24V Electro Mechanical Mortise Lock, L Lever, Satin Chrome
Sargent LC827324VLNL26D Fail Secure Electro Mechanical Double Cylinder 24 Volt Mortise Lock offers exceptional security while enhancing energy efficiency. Designed with SARGENT’s EcoFlex technology, this heavy-duty lever-style lock achieves up to 89% energy savings, making it an eco-conscious choice for various applications, from commercial to educational settings.This mortise lock features a robust satin chrome finish (US26D) and integrates seamlessly with all SARGENT key systems, including Degree, Signature, KESO, and XC. With a 2-3/4″ backset and a door thickness range of 1-3/4″, it is versatile enough to fit a variety of installations. The lock is UL listed for fire safety, rated up to 3 hours, providing added peace of mind. Engineered for durability, the Sargent LC827324 has passed the rigorous UL Cycle test, boasting a remarkable 16 million cycles (Verification ID: V584148). The 5″ lever design and LN rose add an elegant touch, while its fail-secure functionality ensures that the lock remains secure even during power outages.Backed by a limited 10-year mechanical and 2-year electrical warranty, this lock is not just a purchase; it’s a long-term investment in security and reliability.

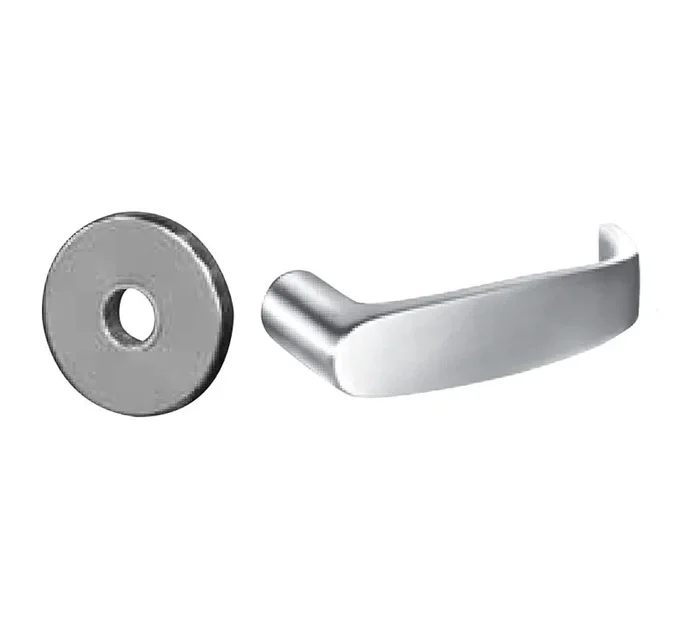

Fail Secure Electro Mechanical Double Cylinder 24 Volt Mortise Lock with L Lever and LN Rose Less Cylinder Satin Chrome Finish
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are “key” to the security of them all.
- UL Cycle Above and Beyond test completed at 16 million cycles (Verification ID: V584148)
- Integrates with all SARGENT key systems (Degree, Signature, KESO, and XC)
- Utilizes EcoFlex technology on all electromechanical functions, creating up to 89% energy savings.
- Available in 56 different functions, including electromechanical, security and monitoring
- Heavy duty lever-style mortise lock
Attributes
Amp Draw: 500mA Peak, 15mA Holding
Application: Complete Lock
Baa Qualified: Yes
Backset: 2-3/4″ Backset
Base Material: Brass or Bronze
Bolt Projection: 3/4″
Bolt Protection: 3/4″
Category: Commercial Electronic Devices
Chassis Type: Mortise Chassis
Country of Origin: Usa
Country of origin: USA
Cylinder Type: Less Cylinder
Design: L Lever and LN Rose
Dimension: 5″ Lever with 2-3/8″ Projection, and 2-1/8″ Rose
Door Range: 1-3/4″
Door Thickness: 1-3/4″
Finish: Satin Chrome
Finish Code: US26D
Finish : Satin Chrome
Fire Rated: Yes
Fire Rating: 2 Hours {B}
Function: 73-Electrical Fail Secure
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/4″ x 8″
Lever Knob Design: L – Lever
Leverknob Design: L Lever
Limited Warranty: 2 Years
Lock Face Size: 8″ X 1-1/4″
Manufacturer Warranty: Limited 10 Year Mechanical and 2 Year Electrical Warranty
Material: Solid Cast Brass
No Of Inners: 1
Operating Voltage: 12VDC/24VDC
Order_ Qty: 1
Origin: USA
Pack Height: 4.38″
Pack Length: 9.25″
Pack Qty: 1
Pack Volume: 227.64 in³
Pack Width: 5.63″
Power: Hard Wired
Power Supply: Wired
Rose Escutcheon Design: LN Rose (2″ Diameter)
Roseescutcheon Design: LN Rose (2″ Diameter)
Screws: Combination
Series: 8200 Series
Ship Weight: 6.1 lbs.
Std Strike Height: 4-7/8″
Std Strike Number: 82-0110
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Strike: ASA Strike
Strike Dimension: 1-1/4″ x 4-7/8″
Strike Height: 4-7/8″
Strike Number: 82-0110
Strike Type: ASA
Strike Width: 1-1/4″
Subcategory: Commercial Electronic Locksets
Subtype: Electronic Locksets
Type: Electronics
Ul Listing Type: UL-cUL Fire-Rated Up to 3 Hours
Unit of Measure: Each
Resources
- 2019 Sargent Price Book
- Ecoflex Promotional Sheet
- Ecoflex Promotional Sheet
- Sargent 7800/8200 Series Mortise Locks Catalog
