Description
Sargent LC827124VLNJ26D Fail Secure Electro Mechanical 24V Mortise Lock, J Lever, Satin Chrome
Sargent LC827124VLNJ26D Fail Secure Electro Mechanical Single Cylinder 24 Volt Mortise Lock combines security and convenience in a sleek satin chrome finish. Designed for commercial applications, this lockset features a fail secure function, ensuring that the door remains locked during a power failure while providing easy access when needed.With a 2-3/4″ backset and compatibility for doors up to 1-3/4″ thick, the LC827124VLNJ26D is engineered to fit a variety of installations. The J Lever design, complemented by an LN rose-less cylinder, provides an elegant and modern look while ensuring durability and ease of use.The lockset measures 5-1/4″ in lever length with a projection of 2-13/16″, making it both functional and aesthetically pleasing. The latch faceplate dimensions of 1-1/4″ x 8″ and an ASA strike measuring 1-1/4″ x 4-7/8″ provide additional robustness to the locking mechanism, enhancing security.Certified under UL and cUL for 3-hour fire ratings, this product meets stringent safety standards, making it suitable for a variety of commercial environments. With its reliable performance and stylish design, the Sargent LC827124VLNJ26D is the ideal choice for professionals seeking quality in architectural door hardware.

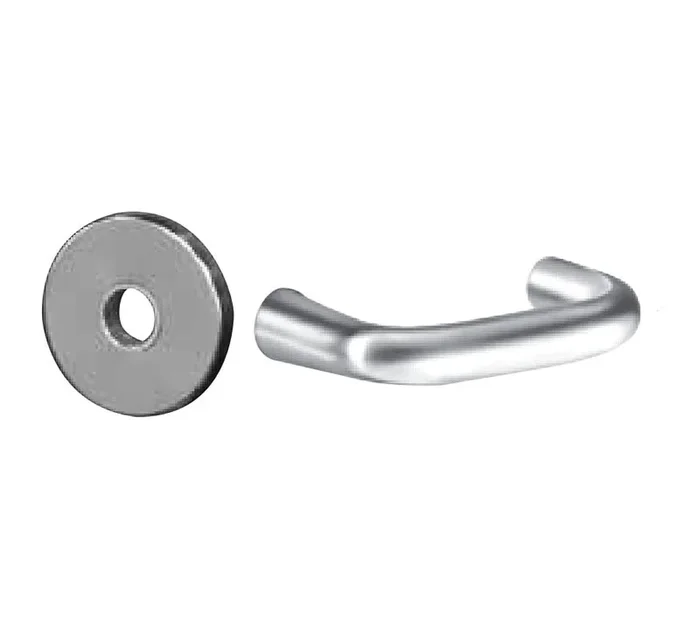

Fail Secure Electro Mechanical Single Cylinder 24 Volt Mortise Lock with J Lever and LN Rose Less Cylinder Satin Chrome Finish
Attributes
Amp Draw: 500mA Peak, 15mA Holding
Application: Complete Lock
Baa Qualified: Yes
Backset: 2-3/4″ Backset
Base Material: Brass or Bronze
Bolt Projection: 3/4″
Bolt Protection: 3/4″
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Country of origin: USA
Cylinder Type: Less Cylinder
Dimension: 5-1/4″ Lever with 2-13/16″ Projection, and 2-1/8″ Rose
Door Range: 1-3/4″
Door Thickness: 1-3/4″
Finish: Satin Chrome
Finish Code: US26D
Finish : Satin Chrome
Fire Rated: 2 Hours {B}
Fire Rating: 2 Hours {B}
Function: 71-Electrical Fail Secure
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/4″ x 8″
Lever Knob Design: J – Lever
Leverknob Design: J Lever
Limited Warranty: 2 Years
Lock Face Size: 8″ X 1-1/4″
No Of Inners: 1
Operating Voltage: 12VDC/24VDC
Order_ Qty: 1
Origin: USA
Pack Height: 4.38″
Pack Length: 9.25″
Pack Qty: 1
Pack Volume: 227.64 in³
Pack Width: 5.63″
Power: Hard Wired
Rose Escutcheon Design: LN Rose (2″ Diameter)
Roseescutcheon Design: LN Rose (2″ Diameter)
Screws: Combination
Series: 8200 Series
Ship Weight: 6.1 lbs.
Std Strike Height: 4-7/8″
Std Strike Number: 82-0110
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Strike: ASA Strike
Strike Dimension: 1-1/4″ x 4-7/8″
Strike Height: 4-7/8″
Strike Number: 82-0110
Strike Type: ASA
Strike Width: 1-1/4″
Subcategory: Mortise Locksets
Subtype: Electric Mortise Lock
Type: Electric Locks
Ul Listing Type: UL and cUL 3 Hour Fire Rated
Unit of Measure: Each
