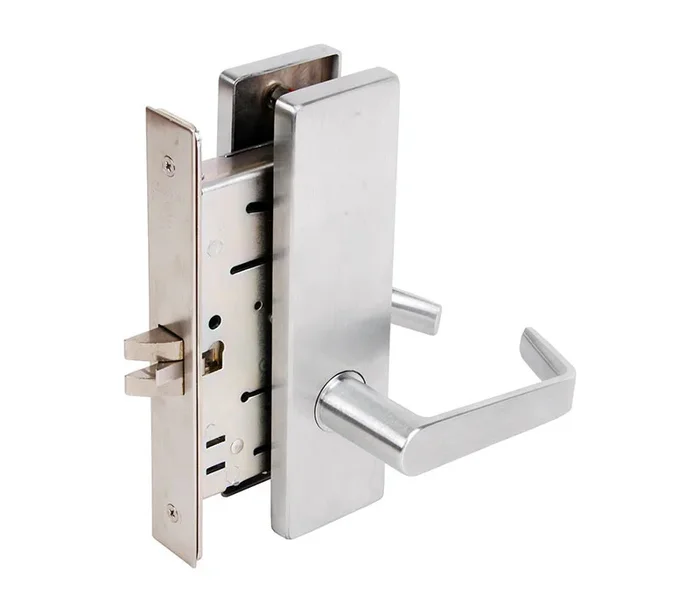

Falcon Lock MA531P DN 606 Corridor Mortise Lock for Apartments
Falcon Lock MA531P DN 606 Apartment Corridor Mortise Lock is a Grade 1 lock designed to provide exceptional security for high-traffic areas such as offices, hospitals, and schools. Featuring a durable 5-pin conventional cylinder and a sleek Dane lever with a Napa escutcheon, this lock combines functionality with an attractive satin brass finish. Built from cold-formed steel and zinc dichromate plated, the robust .090″ thick case ensures longevity, while the heavy-duty through-bolted inserts guarantee proper trim alignment. The lock accommodates door thicknesses ranging from 1-3/8″ to 2-1/2″ and includes a 2-3/4″ backset. Its reversible handing allows for flexible installation, making it suitable for various configurations. The MA531P is equipped with a stainless steel latch bolt and deadbolt, providing superior resistance against tampering. It meets ANSI/BHMA 156.13, Series 1000 standards and is UL listed for 3-hour fire ratings, ensuring it meets rigorous safety requirements. With features like an interchangeable core for easy re-keying and compatibility with SFIC products, this lock stands out for its practicality and reliability. The Falcon MA531P DN 606 is an excellent choice for those seeking dependable security solutions in commercial settings.
Apartmnt Corridor Mortise Lock
Grade 1 Apartment Corridor Door Mortise Lock, 5-Pin Conventional Cylinder, Dane Lever, Napa Escutcheon, Satin Brass Finish, Field Reversible
The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon’s toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they’re backed by one of the best names in the business – Allegion.
Provides security and is built to stand up to constant use without fail.
- Door thickness:Standard accommodates thickness of 1-3/8” to 2-1/2”.
- Backset:2-3/4” only.
- Case:Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
- Hubs:Hardened steel.
- Handing:Right hand is standard; left hand optional. Reversible in the field.
- Cylinders:Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
- Keyways:“G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
- Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
- Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
- Dead Bolt:1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
- Faceplates:(Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
- Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
- Electrified Functions:Available in 12 or 24 VDC.
- ANSI/BHMA:Meets ANSI/BHMA 156.13, Series 1000.
- UL:3 hour A label.
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI/BHMA 156.13 Series 1000 Grade 1
Ansi Function: F20 – Entry/Office
Base Material: Brass
Bolt Projection: 3/4″ Latch & 1″ Bolt
Bolt Throw: 3/4″ Latch & 1″ Bolt
Cam Number: 5622
Commercial Residential: Commercial
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4″ to 1-7/8″
Finish: 606/US4
Finish Family: Matte Brass
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: MA531-Apartment Corridor Door
Function Family: Corridor
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Latch Backset Dim: 2-3/4″
Latch Backset Dimension: 2-3/4″
Lever Knob: Lever
Leverknob Design: D – Dane Lever
Leverknob Design Family: Straight Return Lever
Lock Face Size: 8″ x 1-1/4″
Of Keys: 2
Pack Height: 5″
Pack Length: 10.25″
Pack Qty: 1
Pack Width: 9″
Pbs Options: 10293938
Pins: 5
Projection: 2-1/2″
Rose Escutcheon: Escutcheon
Roseescutcheon Design: N – Napa Escutcheon
Roseescutcheon Dimensions: 8-1/8″ x 2-1/4″
Screws: Combination
Series: MA Series Grade 1 Mortise Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Type: Anti-Friction & Auxiliary Latch & Deadbolt
Std Strike Height: 4-7/8″
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Resources
- MA Series Grade 1 Mortise Locks Cut Sheet
- MA-Series Installation Instructions
- MA-Series Sell Sheet
- MA-Series Service Manual
- Video: Falcon MA Mortise Lock Installation
- Von Duprin Finishes Chart
