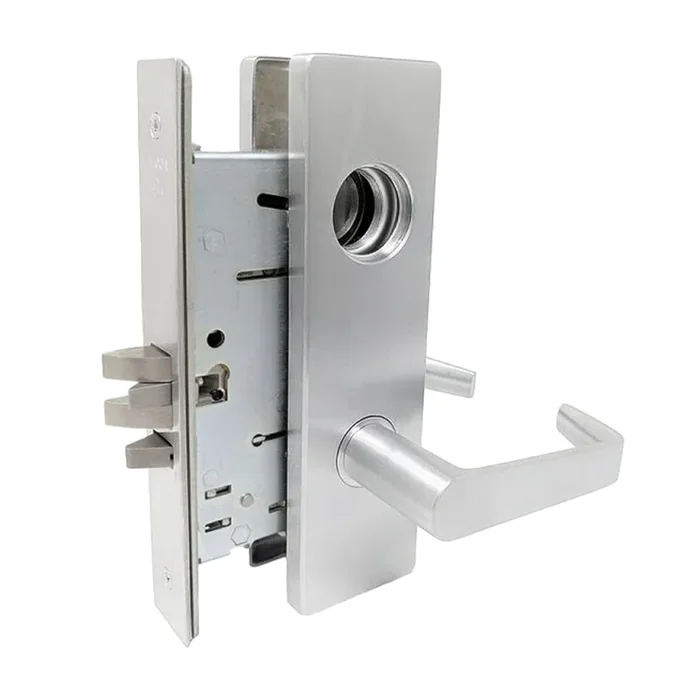

Falcon Lock MA411L DN 626 Asylum Mortise Lock Instructions
Falcon MA411L DN 626 Asylum Mortise Lock offers exceptional performance, designed specifically for high-traffic commercial environments such as offices, hospitals, and educational facilities. This Grade 1 lock features a durable satin chrome finish and is built to withstand constant use while providing reliable security. The MA series is particularly user-friendly, with a field-reversible handing option, allowing for versatile installation. Constructed from cold-formed steel and zinc dichromate plating, the lock’s robust case is complemented by a two-piece stainless steel latch bolt with a 3/4-inch projection, ensuring reliable operation. The solid brass cylinder and plug come standard with nickel silver keys, while the lock accommodates door thicknesses ranging from 1-3/8″ to 2-1/2″. For enhanced protection, the MA411L features a 1-inch throw deadbolt made from stainless steel, and its heavy-duty through-bolted trim ensures proper alignment and strength. Additionally, this lock meets ANSI/BHMA 156.13, Series 1000 standards, and is UL listed for 3-hour fire ratings. With the Falcon MA411L, you get a dependable and aesthetically pleasing solution, perfect for securing institutional settings while offering ease of re-keying and compatibility with SFIC products from various manufacturers.
Asylum Mortise Lock
Grade 1 Asylum Mortise Lock, Less Conventional Cylinder, Dane Lever, Napa Escutcheon, Satin Chrome Finish, Field Reversible
The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon’s toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they’re backed by one of the best names in the business – Allegion.
Provides security and is built to stand up to constant use without fail.
- Door thickness:Standard accommodates thickness of 1-3/8” to 2-1/2”.
- Backset:2-3/4” only.
- Case:Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
- Hubs:Hardened steel.
- Handing:Right hand is standard; left hand optional. Reversible in the field.
- Cylinders:Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
- Keyways:“G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
- Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
- Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
- Dead Bolt:1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
- Faceplates:(Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
- Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
- Electrified Functions:Available in 12 or 24 VDC.
- ANSI/BHMA:Meets ANSI/BHMA 156.13, Series 1000.
- UL:3 hour A label.
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI/BHMA 156.13 Series 1000 Grade 1
Ansi Function: F30 – Asylum
Base Material: Brass or Bronze
Bolt Projection: 3/4″ Latch
Bolt Throw: 3/4″ Latch
Cam Number: 5622
Commercial Residential: Commercial
Cylinder Type: Less Conventional Cylinder
Door Thickness: 1-3/4″ to 1-7/8″
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: MA411-Asylum
Function Family: Institution
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Latch Backset Dim: 2-3/4″
Latch Backset Dimension: 2-3/4″
Lever Knob: Lever
Leverknob Design: D – Dane Lever
Leverknob Design Family: Straight Return Lever
Lock Face Size: 8″ x 1-1/4″
Pack Qty: 1
Pbs Options: 10348829, 10348829
Projection: 2-1/2″
Rose Escutcheon: Escutcheon
Roseescutcheon Design: N – Napa Escutcheon
Roseescutcheon Dimensions: 8-1/8″ x 2-1/4″
Screws: Combination
Series: MA Series Grade 1 Mortise Locks
Std Latch Backset Dim: 2-3/4″
Std Latch Type: Anti-Friction & Auxiliary Latch
Std Strike Height: 4-7/8″
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Resources
- MA Series Grade 1 Mortise Locks Cut Sheet
- MA-Series Installation Instructions
- MA-Series Sell Sheet
- MA-Series Service Manual
- Video: Falcon MA Mortise Lock Installation
- Von Duprin Finishes Chart
