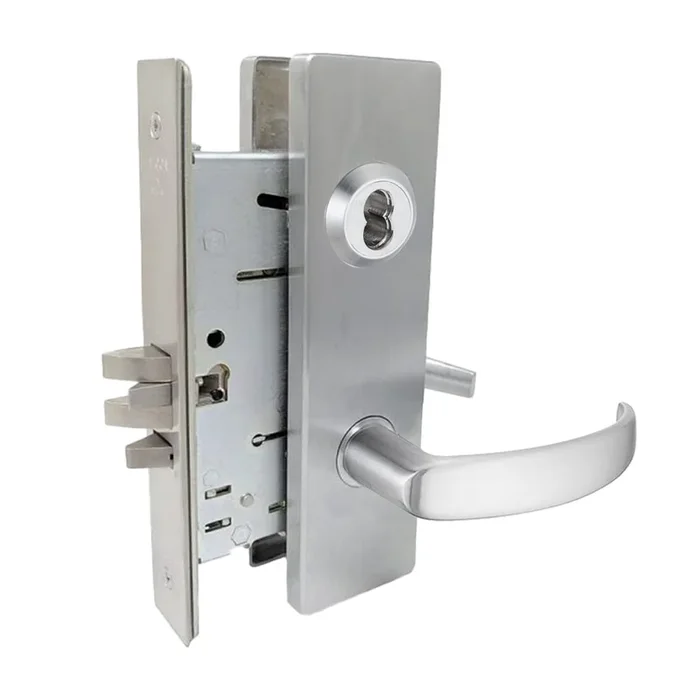

Falcon Lock MA561B QN 626 Classroom Mortise Lock
Falcon MA561B QN 626 Classroom Mortise Lock delivers exceptional security and durability without compromising on cost, making it a superior choice for offices, hospitals, educational institutions, and various commercial environments. This Grade 1 classroom mortise lock features a sleek Satin Chrome finish and is designed to endure high levels of daily use.Engineered for versatility, the MA561B is field-reversible and accommodates door thicknesses from 1-3/8″ to 2-1/2″. The lock is prepared for an SFIC core, offering easy re-keying and compatibility with other manufacturers’ products. Its robust construction includes a cold-formed steel case, hardened steel hubs, and a two-piece stainless steel latch bolt with a 3/4″ projection. Moreover, the lock features a 1″ throw deadbolt and heavy-duty trim that ensures proper alignment through its through-bolted inserts. The Falcon MA561B meets ANSI/BHMA 156.13 standards and is UL listed for up to 3-hour fire ratings, ensuring reliability when it matters most. With its robust design, high-security features, and ease of installation, the Falcon MA561B QN 626 Classroom Mortise Lock is an ideal solution for securing your facilities effectively.
Classroom Mortise Lock
Grade 1 Classroom Mortise Lock, SFIC Prep Less Core, Quantum Lever, Napa Escutcheon, Satin Chrome Finish, Field Reversible
The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon’s toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they’re backed by one of the best names in the business – Allegion.
Provides security and is built to stand up to constant use without fail.
- Door thickness:Standard accommodates thickness of 1-3/8” to 2-1/2”.
- Backset:2-3/4” only.
- Case:Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
- Hubs:Hardened steel.
- Handing:Right hand is standard; left hand optional. Reversible in the field.
- Cylinders:Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
- Keyways:“G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
- Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
- Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
- Dead Bolt:1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
- Faceplates:(Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
- Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
- Electrified Functions:Available in 12 or 24 VDC.
- ANSI/BHMA:Meets ANSI/BHMA 156.13, Series 1000.
- UL:3 hour A label.
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI/BHMA 156.13 Series 1000 Grade 1
Ansi Function: F05 – Classroom
Base Material: Brass or Bronze
Bolt Projection: 3/4″ Latch
Bolt Throw: 3/4″ Latch
Cam Number: 5622
Commercial Residential: Commercial
Cylinder Type: SFIC Prep Less Core
Door Thickness: 1-3/4″ to 1-7/8″
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: MA561-Classroom
Function Family: Classroom
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Latch Backset Dim: 2-3/4″
Latch Backset Dimension: 2-3/4″
Lever Knob: Lever
Leverknob Design: Q – Quantum Lever
Leverknob Design Family: Curved Return Lever
Lock Face Size: 8″ x 1-1/4″
Pack Height: 5″
Pack Length: 10.25″
Pack Qty: 1
Pack Width: 9″
Pbs Options: 10293942
Projection: 2-11/16″
Rose Escutcheon: Escutcheon
Roseescutcheon Design: N – Napa Escutcheon
Roseescutcheon Dimensions: 8-1/8″ x 2-1/4″
Screws: Combination
Series: MA Series Grade 1 Mortise Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Type: Anti-Friction & Auxiliary Latch
Std Strike Height: 4-7/8″
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
