Description

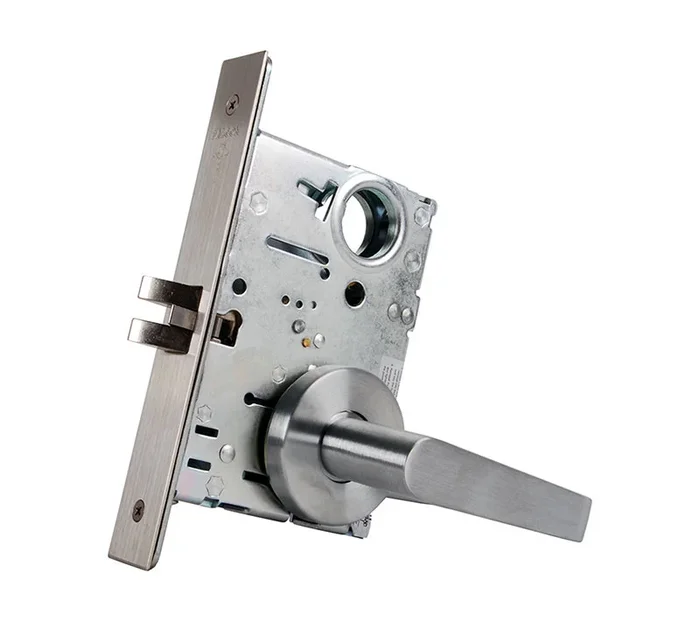

Falcon Lock MA161 DG 626 LHR Mortise Lock Connection/Exit Instructions
Falcon MA161 DG 626 LHR Connecting/Exit Mortise Lock offers Grade 1 security designed for high-traffic environments such as offices, hospitals, and educational facilities. This non-keyed lock features a sleek Dane Lever in a Gala Rose design, finished in durable satin chrome, ensuring both style and functionality. Engineered for reliability, the MA Series is built to withstand constant use, making it one of Falcon’s most dependable solutions. The lock accommodates door thicknesses ranging from 1-3/8″ to 2-1/2″ with a 2-3/4″ backset. Its robust cold-formed steel case is zinc dichromate plated for added durability, while the heavy-duty, bind-resistant trim ensures perfect alignment and strength. The two-piece stainless steel latch bolt projects 3/4″, providing enhanced security, and the 1″ throw deadbolt features a saw-resistant roller for added protection. Designed for easy retrofitting, the interchangeable core facilitates quick re-keying and is compatible with SFIC products from other manufacturers. Rated for 3 hours of fire resistance, this lock meets ANSI/BHMA 156.13 standards and is UL listed. Choose the Falcon MA161 for a reliable, stylish, and secure locking solution that meets the demands of commercial applications.
Connecting/Exit Mortise Lock
Grade 1 Connecting Room/Exit Mortise Lock, Non-Keyed, Dane Lever, Gala Rose, Satin Chrome Finish, Left-Hand Reverse
The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon’s toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they’re backed by one of the best names in the business – Allegion.
Provides security and is built to stand up to constant use without fail.
- Door thickness:Standard accommodates thickness of 1-3/8” to 2-1/2”.
- Backset:2-3/4” only.
- Case:Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
- Hubs:Hardened steel.
- Handing:Right hand is standard; left hand optional. Reversible in the field.
- Cylinders:Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
- Keyways:“G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
- Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
- Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
- Dead Bolt:1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
- Faceplates:(Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
- Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
- Electrified Functions:Available in 12 or 24 VDC.
- ANSI/BHMA:Meets ANSI/BHMA 156.13, Series 1000.
- UL:3 hour A label.
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI/BHMA 156.13 Series 1000 Grade 1
Ansi Function: F31 – Exit
Base Material: Brass or Bronze
Bolt Projection: 3/4″ Latch
Bolt Throw: 3/4″ Latch
Commercial Residential: Commercial
Cylinder Type: Non-Keyed
Door Thickness: 1-3/4″ to 1-7/8″
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: MA161-Connecting Room/Exit
Function Family: Exit
Grade: Grade 1
Handing: Left-Hand Reverse
Installation: Commercial
Latch Backset Dim: 2-3/4″
Latch Backset Dimension: 2-3/4″
Lever Knob: Lever
Leverknob Design: D – Dane Lever
Leverknob Design Family: Straight Return Lever
Lock Face Size: 8″ x 1-1/4″
Pack Qty: 1
Projection: 2-1/2″
Rose Escutcheon: Rose
Roseescutcheon Design: G – Gala Rose
Roseescutcheon Dimensions: 2-9/16″ Diameter
Screws: Combination
Series: MA Series Grade 1 Mortise Locks
Std Latch Backset Dim: 2-3/4″
Std Latch Type: Anti-Friction & Auxiliary Latch
Std Strike Height: 4-7/8″
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Resources
- MA Series Grade 1 Mortise Locks Cut Sheet
- MA-Series Installation Instructions
- MA-Series Sell Sheet
- MA-Series Service Manual
- Video: Falcon MA Mortise Lock Installation
- Von Duprin Finishes Chart
