Description

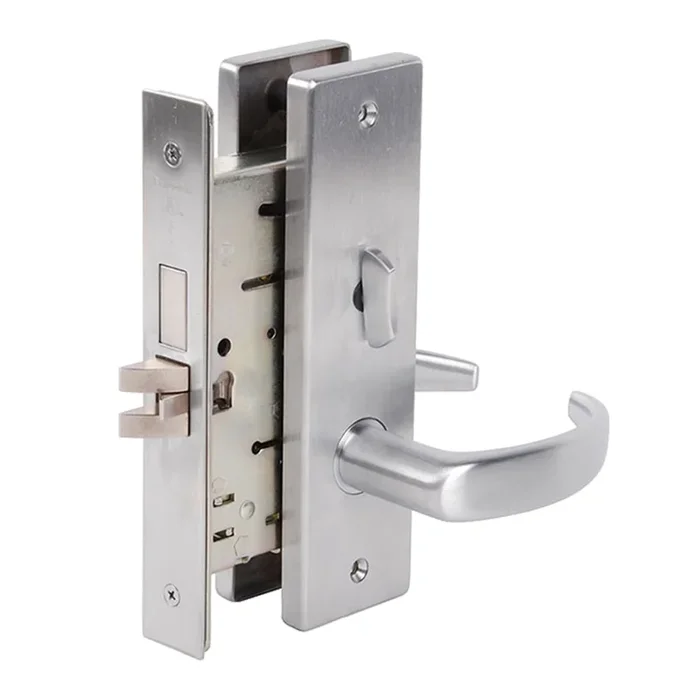

Falcon Lock MA541B QN 626 Mortise Lock for Entry/Office Use
Falcon Lock MA541B QN 626 Entry/Office Mortise Lock offers superior security and durability, making it an ideal choice for various commercial applications such as offices, hospitals, and educational facilities. This Grade 1 mortise lock features an entry/office function and is prepped for SFIC systems, allowing for easy re-keying with interchangeable cores compatible with other manufacturers. Constructed from cold-formed steel with a zinc dichromate plating, the lock is designed to withstand constant use. The two-piece stainless steel latch bolt and heavy-duty deadbolt ensure robust protection, while the bind-resistant trim construction guarantees proper alignment and stability. The Quantum Lever and Napa Escutcheon add a stylish touch without compromising functionality. Accommodating standard door thicknesses of 1-3/8″ to 2-1/2″, the Falcon MA541B features a 2-3/4″ backset and is reversible for right or left-handed installations. Equipped with solid brass cylinders and available keyways, it comes standard with two nickel silver keys. The lock meets ANSI/BHMA 156.13, Series 1000 standards and is UL listed for a 3-hour A label fire rating, ensuring safety and compliance in any environment.Experience peace of mind with the reliability of Falcon’s MA Series locks, backed by Allegion’s trusted reputation in the industry.
Entry/Office Mortise Lock
Grade 1 Mortise Lock, Entry/Office Function, SFIC Prep, Less Core, Quantum Lever, Napa Escutcheon, Satin Chrome
The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon’s toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they’re backed by one of the best names in the business – Allegion.
Provides security and is built to stand up to constant use without fail.
- Door thickness:Standard accommodates thickness of 1-3/8” to 2-1/2”.
- Backset:2-3/4” only.
- Case:Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
- Hubs:Hardened steel.
- Handing:Right hand is standard; left hand optional. Reversible in the field.
- Cylinders:Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
- Keyways:“G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
- Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
- Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
- Dead Bolt:1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
- Faceplates:(Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
- Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
- Electrified Functions:Available in 12 or 24 VDC.
- ANSI/BHMA:Meets ANSI/BHMA 156.13, Series 1000.
- UL:3 hour A label.
Attributes
Manufacturer surcharge: 4.5%
Ansi Function: F21 – Entry Office
Base Material: Brass or Bronze
Commercial Residential: Commercial
Cylinder Type: SFIC Prep Less Core
Finish: 626/US26D
Function: MA521-Entry/Office Lock
Grade: Grade 1
Installation: Commercial
Leverknob Design: Q – Quantum Lever
Pack Height: 5″
Pack Length: 10.25″
Pack Qty: 1
Pack Width: 9″
Pbs Options: 10293942
Roseescutcheon Design: N – Napa Escutcheon
Series: MA Series Grade 1 Mortise Locks
Ship Weight: 7 lbs.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- MA Series Grade 1 Mortise Locks Cut Sheet
- MA-Series Installation Instructions
- MA-Series Sell Sheet
- MA-Series Service Manual
- Video: Falcon MA Mortise Lock Installation
- Von Duprin Finishes Chart
