Description

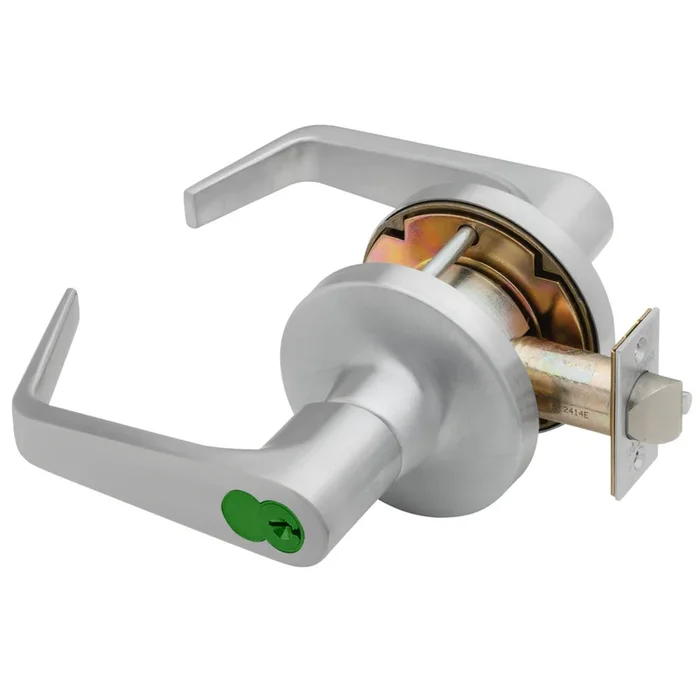

Falcon Lock T501HD D 626 Grade 1 Entry Lock
Falcon Lock T501HD D 626 Grade 1 Entry Lock offers exceptional security and durability for high-traffic and heavy-use environments. This Grade 1 cylindrical lock is designed to withstand the demands of institutional applications, ensuring reliable performance over time. Featuring a sleek satin chrome finish, the T501HD is both aesthetically pleasing and built for resilience. The lock is SFIC prep with a construction core, making re-keying a breeze. It accommodates any manufacturer’s cylinder, allowing easy retrofitting to existing systems. With a non-handed design and compatibility for door thicknesses ranging from 1-3/4″ to 2-1/8″, this lock is versatile for various installations. Constructed with robust materials, including brass and cold-formed steel, the T501HD exceeds ANSI/BHMA Grade 1 testing requirements, providing peace of mind in security. It features a 9/16″ bolt projection and UL listed latches, ensuring reliable locking mechanisms. The lock is also equipped with heavy wrought brass or bronze roses and solid levers, enhancing both function and style. Backed by a 10-year limited warranty, the Falcon T501HD D 626 Grade 1 Entry Lock is a solid choice for commercial properties seeking a dependable, high-quality locking solution.
Grade 1 Entry Lock
Grade 1 Entry Cylindrical Lock, SFIC Prep With Construction Core, Dane Lever, Standard Rose, Satin Chrome Finish, Non-Handed
The T Series extra heavy-duty Grade 1 cylindrical lock is designed to stand up to high-traffic and heavy-abuse applications. The lock can accept any manufacturer⢬ìôs cylinder, and the cylinder can easily be removed for quick, easy re-keying, so retrofitting a current building is simple. The T Series is constructed with a compression spring that allows the lock to exceed ANSI/BHMA Grade 1 testing requirements. Perfect for high-use institutional applications, the T Series lock delivers by providing a solid product at a solid price.
Can accept any manufacturer’s cylinder, and the cylinder can easily be removed for quick, easy re-keying.
- Door Thickness: 1-3/4” to 2-1/8” standard. Thin door adapter kit (A30775-000-00) available for doors thinner than 1-3/4”, please specify door thickness.
- Backset: 2-3/4” standard. 2-3/8” also available. Link (A22161-005-10) available for 5” backset.
- Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
- Attachment: Lock chassis secured to door by threaded mounting nuts. Completely preassembled outer trim and inner spindle assembly are through-bolted over chassis using (2) 10-32 screws. Adding rose and lever to inner spindle assembly completes installation.
- Handing: Locks are non-handed.
- Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. 7-pin cylinders also available. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard. Interchangeable core design is available for small format (SFIC) and large format for most manufacturers.
- Keyways: “G” keyway standard on conventional cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways.
- Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted through door. Levers are pressure cast (solid levers–no inserts) material finished to match mating parts.
- Latches: 9/16” bolt projection, UL listed with latch faceplates 2-1/4” x 1-1/8” with square corners standard. 3/4” projection, UL listed latch with 2-3/4” backset also available. Adjustable front standard.
- Strikes: 4-7/8” x 1-1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.
- Screws: Furnished with combination screws for use in wood or metal doors and frames.
- Electrified Functions: Available in 24 VDC .185 AMP.
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI/BHMA A156.2, Series 4000, Grade 1
Ansi Function: F82 – Entry
Baa Qualified: Yes
Bolt Projection: 1/2″ Latch
Bore Hole Diameter: 2-1/8″
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: SFIC Prep With Construction Core
Door Thickness: 1-3/4″ – 2-1/4″
Dust Box: None
Finish: 626/US26D
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: T501-Entry
Grade: Grade 1
Handing: Non-Handed
Installation: Commercial
Keying: Construction
Latch Bore Diameter: 1″
Leverknob Design: D – Dane Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 2-1/4″ x 1-1/8″
Of Keys: Keys not Included
Origin: Mexico
Pack Height: 3.75″
Pack Length: 9.25″
Pack Qty: 1
Pack Volume: 242.81 in³
Pack Width: 7″
Pbs Options: 10294565
Pins: 6 to 7
Projection: 3-1/2″
Restrictions: None
Roseescutcheon Design: Standard Rose
Roseescutcheon Dimensions: 3-1/2″ Rose Diameter
Screws: Combination
Series: T Series Grade 1 Cylindrical Lever Locks
Ship Weight: 5.5 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 23981145
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8″
Std Strike Number: 5164
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: A Label
Unit of Measure: Each
Resources
- Falcon Cylindrical Lock Guide
- T Series Data sheet
- T-Series Installation Instructions
- T-Series Installation Instructions – Electrical
- T-Series Sell Sheet
- T-Series Service Manual
- T/W Series Data Sheet
- Von Duprin Finishes Chart
