Description

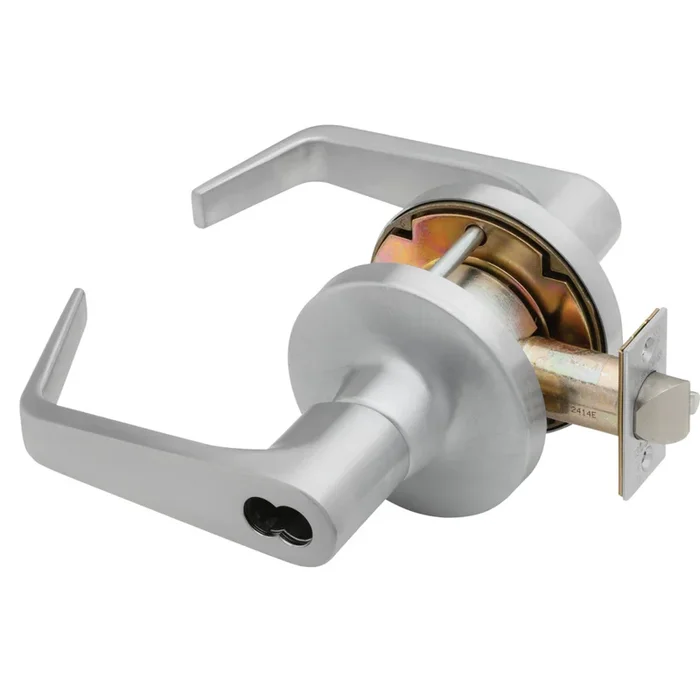

Falcon Lock T581BD D 626 43-005 Grade 1 Storeroom Lock
Falcon Lock T581BD D 626 43-005 Grade 1 Storeroom Lock is engineered for high-traffic environments, providing superior durability and security. This Grade 1 cylindrical lock features a Dane lever and standard rose design, with a satin chrome finish that combines aesthetics with functionality. Its versatile non-handed design allows for easy installation on doors ranging from 1-3/4″ to 2-1/4″ thick, and the lock can accommodate a 5″ backset extension. Constructed with a robust compression spring, the T581BD exceeds ANSI/BHMA Grade 1 testing requirements, making it ideal for institutional applications. The lock accepts any manufacturer’s cylinder, which can be effortlessly removed for quick re-keying, ensuring flexibility when retrofitting existing systems. The heavy-duty components are crafted from brass or cold-formed steel, zinc plated for rust resistance, and equipped with stainless steel springs. Additional features include a 9/16″ bolt projection with UL listed latches and ANSI strikes, ensuring compliance with safety standards. The T581BD is backed by a 10-year limited warranty, reflecting Falcon’s commitment to quality. Perfect for commercial settings, this storeroom lock delivers a reliable and solid solution for security needs.
Grade 1 Storeroom Lock
Grade 1 Storeroom Cylindrical Lock, SFIC Prep Less Core, Dane Lever, Standard Rose, 5″ Backset Extension, Satin Chrome Finish, Non-Handed
The T Series extra heavy-duty Grade 1 cylindrical lock is designed to stand up to high-traffic and heavy-abuse applications. The lock can accept any manufacturer⢬ìöâââìâìÃâìâôs cylinder, and the cylinder can easily be removed for quick, easy re-keying, so retrofitting a current building is simple. The T Series is constructed with a compression spring that allows the lock to exceed ANSI/BHMA Grade 1 testing requirements. Perfect for high-use institutional applications, the T Series lock delivers by providing a solid product at a solid price.
Can accept any manufacturer’s cylinder, and the cylinder can easily be removed for quick, easy re-keying.
- Door Thickness: 1-3/4” to 2-1/8” standard. Thin door adapter kit (A30775-000-00) available for doors thinner than 1-3/4”, please specify door thickness.
- Backset: 2-3/4” standard. 2-3/8” also available. Link (A22161-005-10) available for 5” backset.
- Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
- Attachment: Lock chassis secured to door by threaded mounting nuts. Completely preassembled outer trim and inner spindle assembly are through-bolted over chassis using (2) 10-32 screws. Adding rose and lever to inner spindle assembly completes installation.
- Handing: Locks are non-handed.
- Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. 7-pin cylinders also available. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard. Interchangeable core design is available for small format (SFIC) and large format for most manufacturers.
- Keyways: “G” keyway standard on conventional cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways.
- Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted through door. Levers are pressure cast (solid levers–no inserts) material finished to match mating parts.
- Latches: 9/16” bolt projection, UL listed with latch faceplates 2-1/4” x 1-1/8” with square corners standard. 3/4” projection, UL listed latch with 2-3/4” backset also available. Adjustable front standard.
- Strikes: 4-7/8” x 1-1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.
- Screws: Furnished with combination screws for use in wood or metal doors and frames.
- Electrified Functions: Available in 24 VDC .185 AMP.
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI/BHMA A156.2, Series 4000, Grade 1
Ansi Function: F86 – Storeroom
Baa Qualified: Yes
Bolt Projection: 1/2″ Latch
Bore Hole Diameter: 2-1/8″
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: SFIC Prep Less Core
Door Thickness: 1-3/4″ – 2-1/4″
Dust Box: None
Finish: 626/US26D
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: T581-Storeroom
Grade: Grade 1
Handing: Non-Handed
Installation: Commercial
Latch Bore Diameter: 1″
Leverknob Design: D – Dane Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 2-1/4″ x 1-1/8″
Origin: Mexico
Pack Height: 3.75″
Pack Length: 9.25″
Pack Qty: 1
Pack Volume: 242.81 in³
Pack Width: 7″
Pbs Options: 10293942, 114106585
Pins: 6 to 7
Projection: 3-1/2″
Restrictions: None
Roseescutcheon Design: Standard Rose
Roseescutcheon Dimensions: 3-1/2″ Rose Diameter
Screws: Combination
Series: T Series Grade 1 Cylindrical Lever Locks
Ship Weight: 5.5 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 23981145
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8″
Std Strike Number: 5164
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: A Label
Unit of Measure: Each
