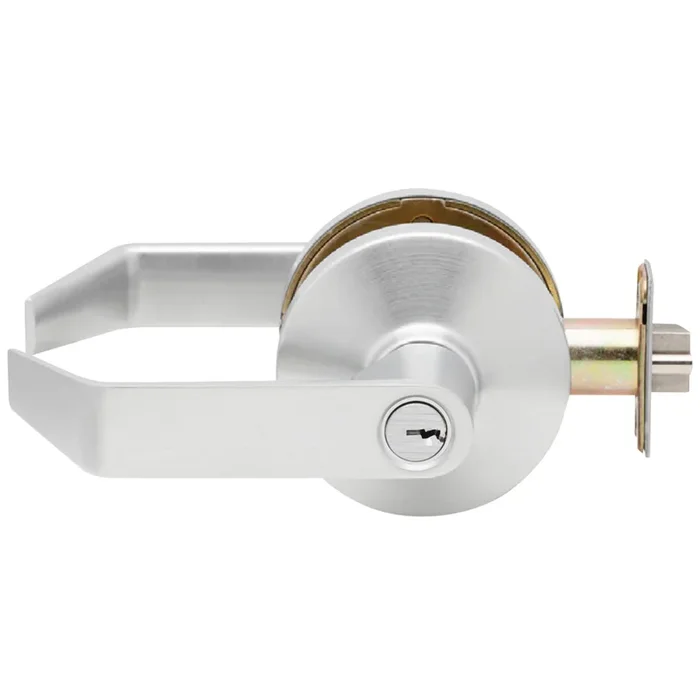

Falcon Lock B501PD D 626 Grade 2 Entry Lock
Falcon Lock B501PD D 626 Grade 2 Entry Lock offers a robust solution for high-traffic environments such as government, retail, industrial, and multi-family projects. This Grade 2 cylindrical lock features an entry function with a key in lever cylinder, designed for ease of use and reliability. The Dane lever style and standard rose, finished in a sleek satin chrome, add a modern touch while ensuring durability. The lock’s non-handed design allows for flexible installation on doors ranging from 1 3/8″ to 2″ thick. With an interchangeable core, quick re-keying is a breeze, and it is compatible with SFIC products from other manufacturers, enhancing its versatility. Constructed from brass and cold-formed steel, the lock’s components are zinc-plated and dichromated for rust resistance, ensuring long-lasting performance. Safety is paramount, as evidenced by its UL 3-hour fire rating and ANSI/BHMA A156.2, Series 4000, Grade 2 certification. The lock features a solid 1/2″ bolt projection and self-adjusting latches that accommodate both beveled and flat doors. Supplied with two nickel silver keys, the Falcon B501PD D 626 is both a stylish and secure choice for any commercial application, backed by a 10-year limited warranty.
Grade 2 Entry Lock
Grade 2 Cylindrical Lock, Entry Function, Key in Lever Cylinder, Dane Lever, Standard Rose, Satin Chrome Finish, Non-handed
When you need a tough, reliable lock for a government/military, retail, industrial or multi-family project, you need a Falcon B Series lock. Our full line of Grade 2 locksets are a perfect replacement for existing locks, or a smart specification in new construction. With upgraded finishes, these locks deliver style as well as strength. Falcon B Series locks feature an interchangeable core that can be removed for quick, easy re-keying, and are compatible with SFIC products from other manufacturers. Most importantly, they⢬ìöâÉâìâÉ⢬ìöâÇâìââ⢬ìöâÉâìâÇ⢬ìöâãâìâìú⢬ìöâÉâìâÇ⢬ìöâÖâìâìâ⢬ìöâÉâìâÉ⢬ìöâââìâìÃâìâìâ⢬ìöâÉâìâÇ⢬ìöâÇâìââ⢬ìöâÉâìâÉ⢬ìöâââìâìÃâìâìâ⢬ìöâÉâìâÇ⢬ìöâÇâìâè⢬ìöâÉâìâÉ⢬ìöâìúâìâìâ⢬ìöâÉâìâÇ⢬ìöâââìâìÃâìâû⢬ìöâÉâìâÉ⢬ìöâââìâìÃâìâìâ⢬ìöâÉâìâÇ⢬ìöâÇâìâè⢬ìöâÉâìâÉ⢬ìöâìúâìâìâ⢬ìöâÉâìâÇ⢬ìöâÇâìâìâ¢re backed by one of the best names in the business.
Features an interchangeable core that can be removed for quick, easy re-keying, and are compatible with SFIC products from other manufacturers.
- Door Thickness:1 3/8” to 2” standard.
- Backset: 2 3/4” standard. 2 3/8” also available.
- Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
- Attachment:Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.
- Handing:Locks are non-handed.
- Cylinders:Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.
- Competitor Cylinders:The B Series accepts these standard 6-pin cylinders: Assa, Kaba, Lori, Medeco, Primus and Schlage.
- Keyways:“G” keyway standard on standard cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways.
- Trim:Roses are 3 1/2” diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure cast zinc (solid levers-no inserts) material finished to match mating parts.
- Latches:1/2” bolt projection. UL (3-hour, A Label) listed. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2 3/8” backset with 2 1/4” x 1” latchfaces, 2 3/4” backset with 2 1/4” x 1 1/8” latchfaces. Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs.
- Strikes:4 7/8” x 1 1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strike size and configurations.
- Screws:Furnished with combination screws for use in wood or metal doors and frames.
- ANSI/BHMA:Exceeds ANSI/BHMA A156.2, Series 4000, Grade 2.
- UL:3-hour, A Label.
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2 Series 4000
Ansi Function: F82 – Entry
Baa Qualified: No
Bolt Projection: 1/2″
Bore Hole Diameter: 2-1/8″
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: Taiwan
Cylinder Type: Key in Lever Cylinder
Door Thickness: 1-3/8″ – 2″
Finish: 626/US26D
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: B501-Entry
Grade: Grade 2
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1″
Leverknob Design: D – Dane Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8″ x 2-1/4″
Origin: Taiwan
Pack Height: 9.5″
Pack Length: 8.25″
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 4.75″
Pbs Options: 10293942
Projection: 2-5/8″
Restrictions: No
Roseescutcheon Design: Standard Rose
Roseescutcheon Dimensions: 3-1/2″ Rose Diameter
Screws: Combination
Series: B Series Grade 2 Cylindrical Lever Locks
Ship Weight: 5 lbs.
Std Keyway: Falcon G
Std Latch Backset Dim: 2-3/4″
Std Latch Number: A57435-00D
Std Latch Type: Deadlatch
Std Strike Height: 1-1/4″
Std Strike Number: 5164
Std Strike Type: ANSI Strike
Std Strike Width: 4-7/8″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL 10B, 10C
Unit of Measure: Each
Resources
- B Series Grade 2 Cylindrical Lever Locks Cut Sheet
- B Series Installation Instructions
- Falcon Cylindrical Lock Guide
- Von Duprin Finishes Chart
