Description

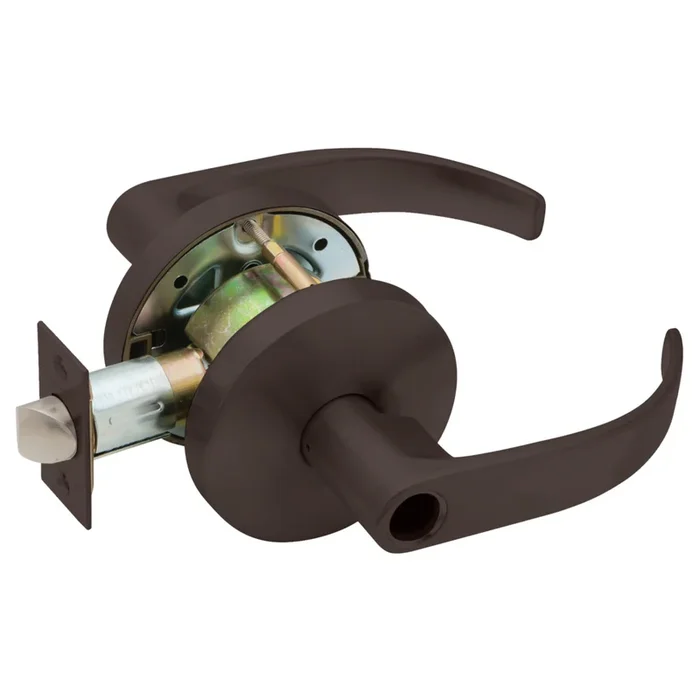

Falcon Lock W581LD SRQ 613 Grade 2 Storeroom Lock
Falcon W581LD SRQ 613 Grade 2 Storeroom Lock offers a reliable solution for securing lower traffic doorways in various settings, from government buildings to retail and multi-family properties. This Grade 2 cylindrical lock features a Quantum lever design and a small rose in a dark oxidized satin bronze oil-rubbed finish, ensuring both durability and aesthetic appeal. Designed to accommodate standard door thicknesses ranging from 1-3/8″ to 1-3/4″, the W581LD is non-handed, making installation straightforward. Its robust construction includes parts made from brass and cold-formed steel, zinc plated and dichromated for enhanced rust resistance. The latch boasts a 1/2″ bolt projection and is UL listed for 3-hour door assemblies, suitable for both beveled and flat doors. The lock accepts conventional cylinders and small format interchangeable cores compatible with SFIC products from other manufacturers. Keyways available include standard Falcon and Schlage C, with master keying options. Meeting ANSI/BHMA A156.2 Grade 2 standards and furnished with a 10-year limited warranty, the Falcon W581LD SRQ ensures both security and peace of mind. Ideal for commercial applications, it is a solid choice for those seeking a dependable locking solution at a competitive price.
Grade 2 Storeroom Lock
Grade 2 Storeroom Cylindrical Lock, Less Cylinder, Quantum Lever, Small Rose, Dark Oxidized Satin Bronze Oil Rubbed Finish, Non-handed
Falcon is dedicated to providing a solid product at a solid price no matter the application. When an affordable lock is needed for lower traffic doorways in government, retail, industrial or multi-family applications, the W Series lock fits perfectly. With two popular lever and knob styles as well as two popular rose diameters (big and small), Falcon can match most commercial door trim. The Falcon W Series locks feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers. Our conventional cylinders are available in all Falcon conventional key sections, as well as Schlage C keyway, which we now masterkey across the complete Falcon product line.
Feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers.
- Door Thickness:1-3/8” to 1-3/4” standard.
- Backset:2-3/4” standard; 2-3/8” also available.
- Mechanism:Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
- Attachment:Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.
- Handing:Locks are non-handed.
- Cylinder:Pinning in six chambers. Cylinder assemblies removable to re-key. Also available with 6- or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.
- Competitor Cylinder:The W Series accepts standard 6-pin cylinders available from Falcon, as well as Schlage, Corbin-Russwin, Yale and Sargent.
- Keyways:“G” keyway standard on Falcon standard cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways. Schlage “C” keyway also available on standard cylinders, includes master key. Master keying available on all Falcon and Schlage “C” keyways.
- Trim:Roses are heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.
- Latches:1/2” bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8” backset with 1” x 2-1/4” latch faces or 2-3/4” backset with 1-1/8” x 2-1/4” latch faces.
- Strikes:4-7/8” x 1-1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.
- Screws:Furnished with combination screws for use in wood or metal doors and frames.
- ANSI/BHMA:Meets ANSI/BHMA A156.2, Series 4000, Grade 2.
- UL:3-hour A label.
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.2-2011, Series 4000, Grade 2
Ansi Function: F86 – Storeroom
Baa Qualified: Yes
Bolt Projection: 1/2″ Latch
Bore Hole Diameter: 2-1/8″
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: Taiwan
Cylinder Type: Less Cylinder
Door Thickness: 1-3/8″ – 2″
Dust Box: Plastic
Finish: 613/US10B
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: W581-Storeroom
Grade: Grade 2
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1″
Leverknob Design: Q – Quantum Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8″ x 2-1/4″
Origin: Taiwan
Pack Height: 6.75″
Pack Length: 7.25″
Pack Qty: 1
Pack Volume: 183.52 in³
Pack Width: 3.75″
Pbs Options: 95899812
Projection: 2-3/8″
Restrictions: None
Roseescutcheon Design: Small Rose
Roseescutcheon Dimensions: 2-9/16″ Rose Diameter
Screws: Combination
Series: W Series Grade 2 Cylindrical Lever Locks
Ship Weight: 2.3 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 30-197
Std Latch Type: Deadlatch
Std Strike Height: 1-1/4″
Std Strike Number: 30-148
Std Strike Type: ANSI Strike
Std Strike Width: 4-7/8″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: A Label
Unit of Measure: Each
Resources
- Falcon Cylindrical Lock Guide
- T/W Series Data Sheet
- Video: Falcon W Series Small Rose Lock Installation
- Von Duprin Finishes Chart
- W Series Sell Sheet
- W Series Small Rose Installation Instructions, Dummy Trim
- W Series Small Rose Installation Instructions, Lever
- W Series W12 Lever Installation Instructions
- W Series with Levers Installation Instructions
