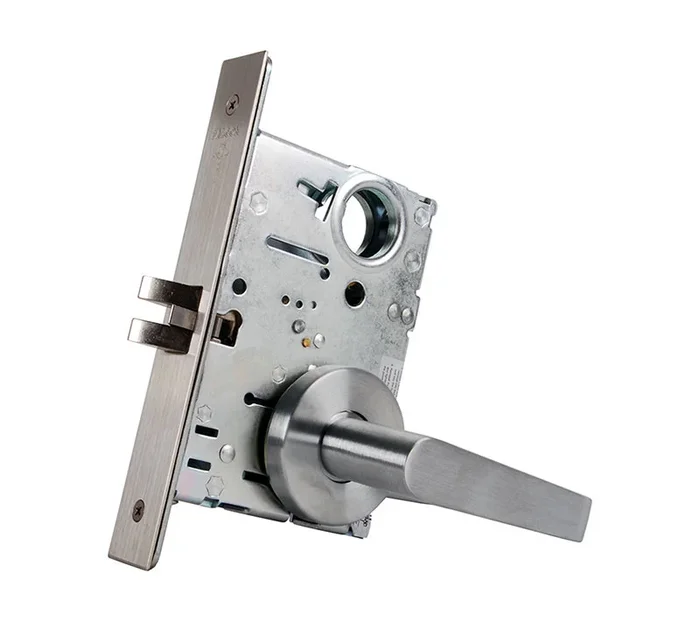

Falcon Lock MA451P DG 626 Hotel Guest Mortise Lock Instructions
Falcon Lock MA451P DG 626 Hotel Guest Mortise Lock offers a Grade 1 security solution designed for high-traffic environments such as offices, hospitals, and educational facilities. This durable mortise lock features a 5-pin conventional cylinder and a stylish Dane lever design with a Gala rose, finished in a sleek satin chrome that complements any decor. Engineered for reliability, the MA Series lock is built to withstand constant use, ensuring peace of mind for property owners and guests alike. Its field-reversible handing simplifies installation, making it adaptable to various door configurations. With a standard door thickness accommodation of 1-3/8″ to 2-1/2″ and a backset of 2-3/4″, it provides versatility for different door types. The lock’s robust construction includes a cold-formed steel case, a stainless steel latch bolt with a 3/4″ projection, and a 1″ throw deadbolt that features hardened steel rollers to resist tampering. Additional highlights include heavy-duty through-bolted trim for secure alignment and UL listing for a 3-hour fire rating. Designed to meet ANSI/BHMA 156.13 standards, the Falcon MA451P is the ideal choice for those seeking a blend of security, durability, and aesthetic appeal in commercial locking solutions.
Hotel Guest Mortise Lock
Grade 1 Hotel Guest Mortise Lock, 5-Pin Conventional Cylinder, Dane Lever, Gala Rose, Satin Chrome Finish, Field Reversible
The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon’s toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they’re backed by one of the best names in the business – Allegion.
Provides security and is built to stand up to constant use without fail.
- Door thickness:Standard accommodates thickness of 1-3/8” to 2-1/2”.
- Backset:2-3/4” only.
- Case:Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
- Hubs:Hardened steel.
- Handing:Right hand is standard; left hand optional. Reversible in the field.
- Cylinders:Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
- Keyways:“G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
- Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
- Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
- Dead Bolt:1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
- Faceplates:(Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
- Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
- Electrified Functions:Available in 12 or 24 VDC.
- ANSI/BHMA:Meets ANSI/BHMA 156.13, Series 1000.
- UL:3 hour A label.
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI/BHMA 156.13 Series 1000 Grade 1
Ansi Function: F15 – Hotel
Base Material: Brass or Bronze
Bolt Projection: 3/4″ Latch & 1″ Bolt
Bolt Throw: 3/4″ Latch & 1″ Bolt
Cam Number: 5622
Commercial Residential: Commercial
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4″ to 1-7/8″
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: MA451-Hotel Guest
Function Family: Hotel
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Latch Backset Dim: 2-3/4″
Latch Backset Dimension: 2-3/4″
Lever Knob: Lever
Leverknob Design: D – Dane Lever
Leverknob Design Family: Straight Return Lever
Lock Face Size: 8″ x 1-1/4″
Of Keys: 2
Pack Qty: 1
Pbs Options: 10293938
Pins: 5
Projection: 2-1/2″
Rose Escutcheon: Rose
Roseescutcheon Design: G – Gala Rose
Roseescutcheon Dimensions: 2-9/16″ Diameter
Screws: Combination
Series: MA Series Grade 1 Mortise Locks
Std Latch Backset Dim: 2-3/4″
Std Latch Type: Anti-Friction & Auxiliary Latch & Deadbolt
Std Strike Height: 4-7/8″
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Resources
- MA Series Grade 1 Mortise Locks Cut Sheet
- MA-Series Installation Instructions
- MA-Series Sell Sheet
- MA-Series Service Manual
- Video: Falcon MA Mortise Lock Installation
- Von Duprin Finishes Chart
