Description

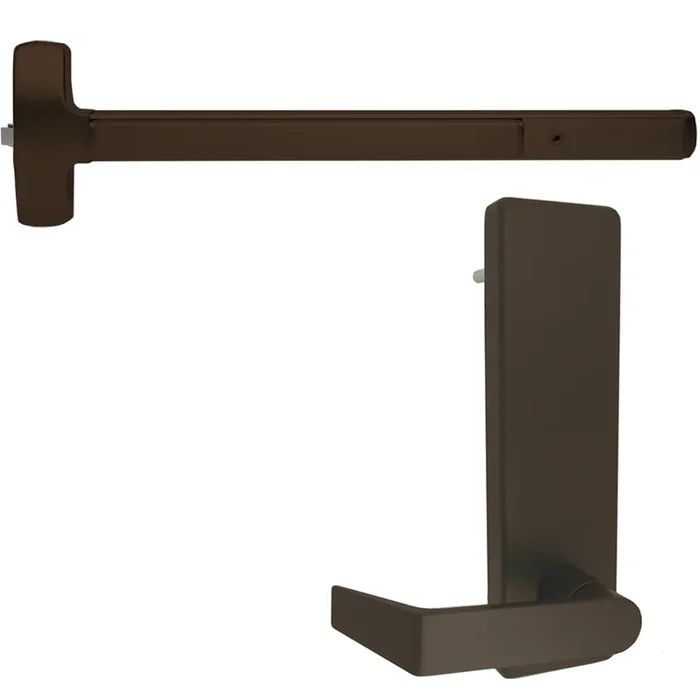

Falcon Lock 25R-L-DT-DAN-710-36-LHR Rim Exit Device w/ Dane Lever Dummy Trim 510L-DT, 36in, LHR, Grade 1, Dark Bronze
Falcon Lock 25R-L-DT-DAN-710-36-LHR KIT offers a robust solution for high-traffic exit needs with its rim exit device and dummy trim lever. Designed for commercial environments like offices, banks, and retail stores, this device ensures quick and efficient egress while maintaining aesthetic appeal. Constructed with extruded aluminum, it boasts exceptional strength and impact resistance, making it ideal for continual use. This Grade 1 certified exit device features a streamlined design with no exposed screws or rivets, resulting in a clean, modern look. The stainless steel push pad cover provides a scratch-resistant surface, while the hex dogging feature allows for easy operation. The device is non-handed and suitable for 1-3/4″ thick wood or metal doors, with a 36-inch width, accommodating various door styles. The kit includes the Dane lever dummy trim, enhancing versatility for different applications. Additionally, the 25R series can be electrified, allowing integration with building security systems for added convenience. With its durable construction and reliable performance, the Falcon Lock 25R-L-DT-DAN-710-36-LHR KIT is a smart choice for ensuring safety and accessibility in any commercial setting.
KIT – Rim Exit Device, Escutcheon x Dane Lever Dummy Trim 510L-DT, 36in, Hex Dogging, LHR Left Hand Reverse/Reversible, Grade 1, 710/313AN Dark Bronze Anodized
Notice: The info below is not item specific.
The 24/25 series heavy-duty architectural push pad exit devices provide quick, easy egress suitable for various applications. Offices, banks, assisted living facilities, retail stores and other commercial buildings have constant traffic, so the exit devices must be able to perform under continual use and abuse. The 24/25 series exit devices out-perform competitors and are offered at a reasonable price. The ANSI/BHMA grade 1 certified exit devices feature a sleek, streamlined styling and smart solutions for any building design while assuring egress in case of an emergency. The 25-R series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch and a streamlined touch bar design. This device can also be electrified for maximum ease of use and accessibility
Features:
- Extruded aluminum construction delivers greater strength and impact resistance
- Includes panic exit and fire exit hardware for single and double door applications
- No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation
- One trim input design provides maximum versatility and ability to use various trims
- Stainless steel push pad cover provides a scratch-resistant pushing surface
- Flush-end caps help prevent them from being destroyed or knocked off in abusive situations
- Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors
Functions:
- EO (01): Exit only, no trim.
- DT (02): Entrance by trim when actuating bar is locked down.
- NL (03): Entrance by trim when latchbolt is retracted by key. Key removable only when locked.
- TP (05): Entrance by thumbpiece. Key locks or unlocks thumbpiece.
- L or K (08): Entrance by knob or lever. Key locks or unlocks knob.
- L(NL) or K(NL) (03): Entrance by knob or lever when latchbolt is retracted by key. Lever/knob is rigid. Key removable only when locked.
Lever Designs:
- Avalon (AVA): Projection 3-1⁄4″
- Quantum (QUA): Projection 3-1⁄4″
- Dane (DAN): Projection 3″
- Broadway (BRW): Projection 3-1⁄5″
- Boardwalk (BRK): Projection 3-1⁄5″
- Danish (DSH): Projection 2-9⁄10″
- Latitude (LAT): Projection 3-1⁄10″
- Longitude (LON): Projection 3-1⁄10″
- Sutro (SUT): Projection 3-1⁄4″
Specifications:
- Hand: Non-handed.
- Strikes: 299 strike standard.
- Latchbolt: Stainless steel, 3⁄4″ throw.
- Deadlocking Latchbolt: Standard.
- Dogging Feature: Hex dogging standard
- Cylinder Dogging: Specify “CD” prefix. Uses 1-1⁄8″ long mortise cylinder with standard cam.
- Double Cylinder – Classroom Security: Available with L function for 25-R-L less dogging and F-25-R-L devices only. Specify handing. Cylinders sold separately.
- Doors: 1-3⁄4″ thick, wood or metal. Specify thickness if other than 1-3⁄4″.
- Projections: 2-3⁄4″ maximum, 2″ dogged.
- Mounting Height: 40-1⁄4″ from CL to finished floor.
- Electric Functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
- Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
- Sex Bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 – 425 (#I0-24) SNB. For devices with trim, specify 2 – 425 (#IO-24) SNB.
- ANSI: Certified ANSI A156.3-2001 grade 1 standards.
- Center Case and Working Parts: Center case is heavy wrought and sintered metal parts.
- Shim kits: For glass lite applications; 1⁄4″ thick, specify SK25-RM.
Stock Sizes:
- Single Door Application:
| Device | Door Size | Door Strike | Door Stile (in) | Min. Door Opening Width |
|---|---|---|---|---|
| 25-R | 3’ | 299 | 4″ | 2′ 7 1⁄2″ |
| 25-R | 3’ | 264 | 3 7⁄8″ | 2′ 7 3⁄8″ |
| 25-R | 3’ | 1439 | 3 1⁄4″ | 2′ 6 3⁄4″ |
| 25-R | 3’ | 1606 | 3 5⁄8″ | 2′ 7 1⁄8″ |
| 25-R | 4′ | 299 | 4″ | 3′ 1 1⁄2″ |
| 25-R | 4′ | 264 | 3 7⁄8″ | 3′ 1 3⁄8″ |
| 25-R | 4′ | 1439 | 3 1⁄4″ | 3′ 3⁄4″ |
| 25-R | 4′ | 1606 | 3 5⁄8″ | 3′ 1 1⁄8″ |
- Double Door Application:
| Device | Door Size | Strike x Mullion | Door Stile (in.) | Min. Door Opening Width |
|---|---|---|---|---|
| 25-R | 3’ | 299 x 2923 | 4-1⁄8″ | 2′ 7-1⁄2″ |
| 25-R | 3’ | 299 x 4023 | 4-3⁄8″ | 2′ 7-1⁄2″ |
| 25-R | 3’ | 264 x 2923 | 4″ | 2′ 7-3⁄8″ |
| 25-R | 3’ | 264 x 4023 | 4-1⁄4″ | 2′ 7-3⁄8″ |
| 25-R | 3’ | 1439 x 2923 | 3-7⁄8″ | 2′ 7-1⁄4″ |
| 25-R | 3’ | 1439 x 4023 | 4-1⁄8″ | 2′ 7-1⁄4″ |
| 25-R | 3’ | 1606 x 2923 | 4-1⁄4″ | 2′ 7-1⁄8″ |
| 25-R | 3’ | 1606 x 4023 | 4-1⁄2 “ | 2′ 7-1⁄8″ |
| 25-R | 4’ | 299 x 2923 | 4-1⁄8″ | 3′ 1-1⁄2″ |
| 25-R | 4’ | 299 x 4023 | 4-3⁄8″ | 3′ 1-1⁄2″ |
| 25-R | 4’ | 264 x 2923 | 4″ | 3′ 1-3⁄8″ |
| 25-R | 4’ | 264 x 4023 | 4-1⁄4″ | 3′ 1-3⁄8″ |
| 25-R | 4’ | 1439 x 2923 | 3-7⁄8″ | 3′ 1-1⁄4″ |
| 25-R | 4’ | 1439 x 4023 | 4-1⁄8″ | 3′ 1-1⁄4″ |
| 25-R | 4’ | 1606 x 2923 | 4-1⁄4″ | 3′ 1-1⁄8″ |
| 25-R | 4’ | 1606 x 4023 | 4-1⁄2 “ | 3′ 1-1⁄8″ |
| 25-Vx 25-R | 3’ | 1609 | 3-1⁄2″ | 2′ 7-5⁄8″ for 3-1⁄2″ Min stile |
| 25-Vx 25-R | 4’ | 1609 | 3-1⁄2″ | 3’ 1-5⁄8″ for 3-1⁄2″Min stile |
Finishes:
- US3/605 – Bright brass
- US4/606 – Satin brass
- US10/612 – Satin bronze
- US11/643e – Aged bronze
- US15/619 – Satin nickel
- US19/622 – Matte black
- US26/625 – Bright chrome
- US26D/626 – Satin chrome
- US28/628 – Anodized aluminum
- US32/629 – Bright stainless steel
- US32D/630 – Satin stainless steel
- 313AN/710 – Anodized duranodic
Attributes
Alternate Codes: 25R-L-DT-DAN-313AN-36-LHR, 25RLDTDAN313AN36LHR, FAL25R-L-DT-DAN-313AN-36-LHR
Category: Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices
Certifications: A156.3, ANSI, UL 305
Device Width: 36″
Dogging: HD – Hex Dogging
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Rim device
Finish Code: 313AN
Finish Color: Dark Bronze, Dark Bronze Anodized, Dark Bronze/Clear Coat, Dark Brown, Duranotic Dark Bronze
Function: Dummy Trim, Lever
Grade: Grade 1
Handing: Left Handed Reverse
Lever Design: Dane
Manufacturer: Falcon Lock
Series: 25
Strike Type: Rim Strike, Standard
Trim Option: Lever Trim
