Description

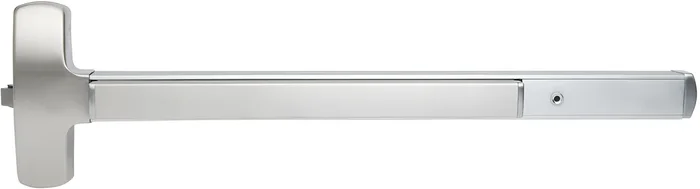

Falcon Lock 25R-EO-US4-48 Rim Exit Device, 48in, Hex Dogging, Grade 1, Satin Brass, 299 Strike
Falcon Lock 25R-EO-US4-48 Rim Exit Device is engineered for high-traffic environments, delivering reliable performance with its robust, single-point rim latch. At 48 inches, this exit-only device is designed with a streamlined touch bar, ensuring an efficient and accessible exit solution. Its extruded aluminum construction offers exceptional strength and impact resistance, making it a durable choice for any application.The 25-R Series features a sleek design with no exposed screws or rivets, providing a clean aesthetic that enhances any door installation. The stainless steel push pad cover is scratch-resistant, ensuring longevity and maintaining a polished appearance. The half-turn hex dogging feature eliminates wear and tear associated with traditional threaded parts, while the non-handed design allows for versatile installation on various door types. This exit device is compatible with 1-3/4″ thick wood or metal doors and is ANSI certified to Grade 1 standards. Its electric functions can easily integrate with existing building security systems, offering options such as motorized latch retraction and exit alarms. The Falcon Lock 25R-EO-US4-48 is the perfect choice for professionals needing a reliable, aesthetically pleasing, and functional exit device for commercial settings.
Rim Exit Device, Exit Only, 48in, Hex Dogging, 299 Strike, Grade 1, 606/US4 Satin Brass
Notice: The info below is not item specific.
The 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch and a streamlined touch bar design. This device can also be electrified for maximum ease of use and accessibility.
Features:
- Extruded aluminum construction delivers greater strength and impact resistance.
- No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
- One trim input design provides maximum versatility and ability to use various trims.
- Stainless steel push pad cover provides a scratch-resistant pushing surface.
- Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
- Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.
Specifications:
- Hand: Non-handed.
- Strikes: 299 strike standard.
- Latchbolt: Stainless steel, 3⁄4″ throw.
- Deadlocking Latchbolt: Standard.
- Dogging Feature: Half turn hex dogging standard. No threaded parts to wear out.
- Cylinder Dogging: Specify “CD” prefix. Uses 1-1⁄8″ long mortise cylinder with standard cam.
- Doors: 1-3⁄4″ thick, wood or metal. Specify thickness if other than 1-3⁄4″.
- Projections: 2-3⁄4″ maximum, 2″ dogged.
- Mounting Height: 40-1⁄4″ from CL to finished floor.
- Electric Functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
- Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
- Sex Bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 – 425 (#I0-24) SNB. For devices with trim, specify 2 – 425 (#IO-24) SNB.
- ANSI: Certified ANSI A156.3-2001 grade 1 standards.
- Center Case and Working Parts: Center case is heavy wrought and sintered metal parts.
- Shim kits: For glass lite applications; 1⁄4″ thick, specify SK25-RM.
Stock Sizes:
- Single Door Application
| Device | Door Size | Door Strike | Door Stile (in) | Min. Door Opening Width |
|---|---|---|---|---|
| 25-R | 3’ | 299 | 4″ | 2′ 7 1⁄2″ |
| 25-R | 3’ | 264 | 3 7⁄8″ | 2′ 7 3⁄8″ |
| 25-R | 3’ | 1439 | 3 1⁄4″ | 2′ 6 3⁄4″ |
| 25-R | 3’ | 1606 | 3 5⁄8″ | 2′ 7 1⁄8″ |
| 25-R | 4′ | 299 | 4″ | 3′ 1 1⁄2″ |
| 25-R | 4′ | 264 | 3 7⁄8″ | 3′ 1 3⁄8″ |
| 25-R | 4′ | 1439 | 3 1⁄4″ | 3′ 3⁄4″ |
| 25-R | 4′ | 1606 | 3 5⁄8″ | 3′ 1 1⁄8″ |
- Double Door Application
| Device | Door Size | Strike x Mullion | Door Stile (in.) | Min. Door Opening Width |
|---|---|---|---|---|
| 25-R | 3’ | 299 x 2923 | 4 1⁄8″ | 2′ 7 1⁄2″ |
| 25-R | 3’ | 299 x 4023 | 4 3⁄8″ | 2′ 7 1⁄2″ |
| 25-R | 3’ | 264 x 2923 | 4″ | 2′ 7 3⁄8″ |
| 25-R | 3’ | 264 x 4023 | 4 1⁄4″ | 2′ 7 3⁄8″ |
| 25-R | 3’ | 1439 x 2923 | 3 7⁄8″ | 2′ 7 1⁄4″ |
| 25-R | 3’ | 1439 x 4023 | 4 1⁄8″ | 2′ 7 1⁄4″ |
| 25-R | 3’ | 1606 x 2923 | 4 1⁄4″ | 2′ 7 1⁄8″ |
| 25-R | 3’ | 1606 x 4023 | 4 1⁄2 “ | 2′ 7 1⁄8″ |
| 25-R | 4’ | 299 x 2923 | 4 1⁄8″ | 3′ 1 1⁄2″ |
| 25-R | 4’ | 299 x 4023 | 4 3⁄8″ | 3′ 1 1⁄2″ |
| 25-R | 4’ | 264 x 2923 | 4″ | 3′ 1 3⁄8″ |
| 25-R | 4’ | 264 x 4023 | 4 1⁄4″ | 3′ 1 3⁄8″ |
| 25-R | 4’ | 1439 x 2923 | 3 7⁄8″ | 3′ 1 1⁄4″ |
| 25-R | 4’ | 1439 x 4023 | 4 1⁄8″ | 3′ 1 1⁄4″ |
| 25-R | 4’ | 1606 x 2923 | 4 1⁄4″ | 3′ 1 1⁄8″ |
| 25-R | 4’ | 1606 x 4023 | 4 1⁄2 “ | 3′ 1 1⁄8″ |
| 25-Vx 25-R | 3’ | 1609 | 3 1⁄2″ | 2′ 7 5⁄8″ for 3 1⁄2″ Min stile |
| 25-Vx 25-R | 4’ | 1609 | 3 1⁄2″ | 3’ 1 5⁄8″ for 3 1⁄2″ Min stile |
Finishes:
- US3/605 – Bright Brass
- US4/606 – Satin Brass
- US10/612 – Satin Bronze
- US11/643e – Aged Bronze
- US15/619 – Satin Nickel
- US19/622 – Matte Black
- US26/625- Bright Chrome
- US26D/626 – Satin Chrome
- US28/628 – Anodized Aluminum
- US32/629 – Bright Stainless Steel
- US32D/630 – Satin Stainless Steel
- 313AN/710 – Anodized Duranodic
Attributes
Alternate Codes: 25R-EO-US4-48, 25REOUS448
Category: Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices
Certifications: A156.3, ANSI, UL 305
Device Width: 48″
Dogging: HD – Hex Dogging
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Rim device
Finish Code: US4
Finish Color: Brushed Brass, Satin Brass
Function: Exit Only
Grade: Grade 1
Manufacturer: Falcon Lock
Series: 25
Strike Type: Rim Strike, Standard
