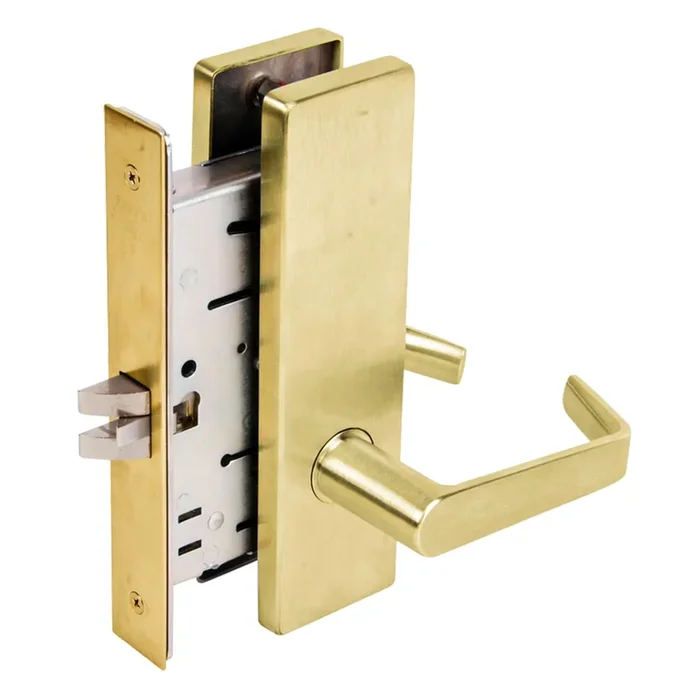

Falcon Lock MA101 DN 606 Passage Mortise Lock Instructions
Falcon MA101 DN 606 Passage Mortise Lock offers robust security and reliability, making it an ideal choice for commercial environments such as offices, hospitals, and educational institutions. As a Grade 1 Passage/Closet Mortise Lock, it features a non-keyed design with a sleek Dane lever and an elegant Napa escutcheon, all finished in a sophisticated satin brass. Designed for high-traffic areas, the MA Series lock is built to endure constant use without compromising performance. Its field-reversible handing and compatibility with both standard and interchangeable core cylinders make retrofitting simple and efficient. The lock accommodates door thicknesses from 1-3/8″ to 2-1/2″ and features a durable cold formed steel case, zinc dichromate plated for added longevity. With a 3/4″ stainless steel latch bolt and a 1″ deadbolt, this lock ensures reliable security. The heavy-duty through-bolted trim and armored front provide additional protection against tampering and misalignment. It meets ANSI/BHMA 156.13, Series 1000 standards, and is UL listed for 3-hour fire ratings. Whether you’re upgrading an existing installation or outfitting a new build, the Falcon MA101 DN 606 Passage Mortise Lock delivers performance you can trust, backed by Allegion’s renowned reputation in the industry.
Passage Mortise Lock
Grade 1 Passage/Closet Mortise Lock, Non-Keyed, Dane Lever, Napa Escutcheon, Satin Brass Finish, Field Reversible
The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon’s toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they’re backed by one of the best names in the business – Allegion.
Provides security and is built to stand up to constant use without fail.
- Door thickness:Standard accommodates thickness of 1-3/8” to 2-1/2”.
- Backset:2-3/4” only.
- Case:Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
- Hubs:Hardened steel.
- Handing:Right hand is standard; left hand optional. Reversible in the field.
- Cylinders:Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
- Keyways:“G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
- Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
- Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
- Dead Bolt:1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
- Faceplates:(Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
- Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
- Electrified Functions:Available in 12 or 24 VDC.
- ANSI/BHMA:Meets ANSI/BHMA 156.13, Series 1000.
- UL:3 hour A label.
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI/BHMA 156.13 Series 1000 Grade 1
Ansi Function: F01 – Passage
Base Material: Brass
Bolt Projection: 3/4″ Latch
Bolt Throw: 3/4″ Latch
Commercial Residential: Commercial
Cylinder Type: Non-Keyed
Door Thickness: 1-3/4″ to 1-7/8″
Finish: 606/US4
Finish Family: Matte Brass
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: MA101-Passage/Closet
Function Family: Passage
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Latch Backset Dim: 2-3/4″
Latch Backset Dimension: 2-3/4″
Lever Knob: Lever
Leverknob Design: D – Dane Lever
Leverknob Design Family: Straight Return Lever
Lock Face Size: 8″ x 1-1/4″
Pack Height: 5″
Pack Length: 10.25″
Pack Qty: 1
Pack Width: 9″
Projection: 2-1/2″
Rose Escutcheon: Escutcheon
Roseescutcheon Design: N – Napa Escutcheon
Roseescutcheon Dimensions: 8-1/8″ x 2-1/4″
Screws: Combination
Series: MA Series Grade 1 Mortise Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Type: Anti-Friction Latch
Std Strike Height: 4-7/8″
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
