Description

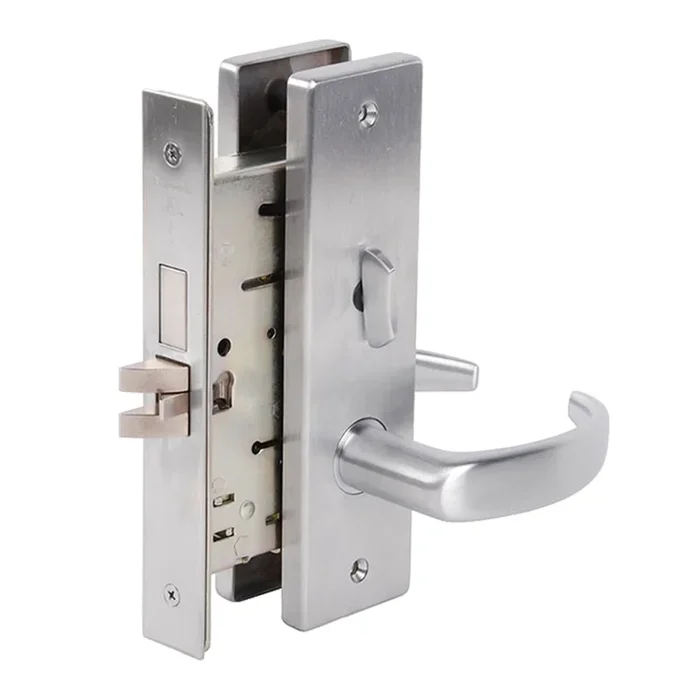

Falcon Lock MA311 QN 626 Privacy Bath Mortise Lock Instructions
Falcon MA311 QN 626 Privacy – Bath Mortise Lock offers a reliable solution for privacy needs in commercial spaces such as offices, hospitals, and educational institutions. This Grade 1 Privacy lock features the elegant Quantum Lever and the stylish Napa Escutcheon, all finished in a sleek satin chrome that complements any decor. Designed for durability, the MA Series is built to withstand constant use, ensuring long-lasting performance. Its retrofit-friendly interchangeable core allows for quick re-keying, compatible with SFIC products from other manufacturers, providing flexibility and convenience for building managers. The lock accommodates standard door thicknesses ranging from 1-3/8″ to 2-1/2″ and comes with a 2-3/4″ backset. Key features include a two-piece stainless steel latch bolt with a 3/4″ projection, a robust 1″ throw deadbolt, and heavy-duty through-bolted inserts for secure trim alignment. The strike is non-handed and meets ANSI A115.1 standards. Additionally, the Falcon MA311 is UL listed for a 3-hour fire rating, ensuring safety and compliance in critical environments.With its combination of security, style, and practicality, the Falcon MA311 QN 626 Privacy – Bath Mortise Lock is an excellent choice for any commercial application.
Privacy – Bath Mortise Lock
Grade 1 Privacy, Bedroom, Bath Mortise Lock, Quantum Lever, Napa Escutcheon, Satin Chrome Finish
The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon’s toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they’re backed by one of the best names in the business – Allegion.
Provides security and is built to stand up to constant use without fail.
- Door thickness:Standard accommodates thickness of 1-3/8” to 2-1/2”.
- Backset:2-3/4” only.
- Case:Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
- Hubs:Hardened steel.
- Handing:Right hand is standard; left hand optional. Reversible in the field.
- Cylinders:Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
- Keyways:“G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
- Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
- Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
- Dead Bolt:1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
- Faceplates:(Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
- Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
- Electrified Functions:Available in 12 or 24 VDC.
- ANSI/BHMA:Meets ANSI/BHMA 156.13, Series 1000.
- UL:3 hour A label.
Attributes
Manufacturer surcharge: 4.5%
Ansi Function: F19 – Privacy/Bed/Bath
Base Material: Brass or Bronze
Commercial Residential: Commercial
Finish: 626/US26D
Function: MA311-Privacy, Bedroom or Bath Lock
Grade: Grade 1
Installation: Commercial
Leverknob Design: Q – Quantum Lever
Pack Qty: 1
Roseescutcheon Design: N – Napa Escutcheon
Series: MA Series Grade 1 Mortise Locks
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- MA Series Grade 1 Mortise Locks Cut Sheet
- MA-Series Installation Instructions
- MA-Series Sell Sheet
- MA-Series Service Manual
- Video: Falcon MA Mortise Lock Installation
- Von Duprin Finishes Chart
