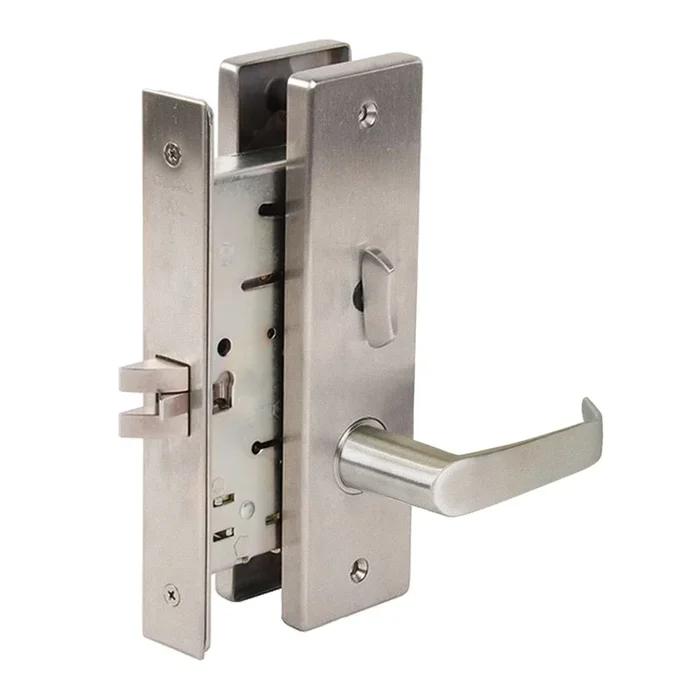

Falcon Lock MA321 DN 630 Privacy Mortise Lock Instructions
Falcon Lock MA321 DN 630 Privacy Mortise Lock combines robust security with sleek design, making it an ideal choice for commercial applications like offices, hospitals, and educational facilities. Designed to meet Grade 1 standards, this lock features the elegant Dane lever and Napa escutcheon, all finished in satin stainless steel for a modern aesthetic. Built to withstand heavy use, the MA Series lock includes a two-piece stainless steel latch bolt with a 3/4-inch projection and a durable 1-inch deadbolt, complete with hardened steel rollers that resist sawing. Its cold-formed steel case is zinc dichromate plated for added protection, while the adjustable faceplate accommodates various door bevels. Installation is straightforward, as the lock accommodates standard door thicknesses between 1-3/8 inches and 2-1/2 inches, with a backset of 2-3/4 inches. The interchangeable core allows for quick re-keying, compatible with SFIC products from other manufacturers. Additionally, heavy-duty through-bolted inserts ensure proper alignment and durability. With a UL rating of up to three hours for A label fire resistance and compliance with ANSI/BHMA standards, the Falcon MA321 DN 630 Privacy Mortise Lock is a trusted choice for maintaining security and privacy in any commercial environment.
Privacy Mortise Lock
Grade 1 Privacy Mortise Lock, Dane Lever, Napa Escutcheon, Satin Stainless Steel Finish
The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon’s toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they’re backed by one of the best names in the business – Allegion.
Provides security and is built to stand up to constant use without fail.
- Door thickness:Standard accommodates thickness of 1-3/8” to 2-1/2”.
- Backset:2-3/4” only.
- Case:Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
- Hubs:Hardened steel.
- Handing:Right hand is standard; left hand optional. Reversible in the field.
- Cylinders:Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
- Keyways:“G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
- Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
- Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
- Dead Bolt:1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
- Faceplates:(Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
- Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
- Electrified Functions:Available in 12 or 24 VDC.
- ANSI/BHMA:Meets ANSI/BHMA 156.13, Series 1000.
- UL:3 hour A label.
Attributes
Manufacturer surcharge: 4.5%
Ansi Function: F22 – Privacy
Base Material: Stainless Steel
Commercial Residential: Commercial
Finish: 630/US32D
Function: MA321-Privacy Lock
Grade: Grade 1
Installation: Commercial
Leverknob Design: D – Dane Lever
Pack Qty: 1
Roseescutcheon Design: N – Napa Escutcheon
Series: MA Series Grade 1 Mortise Locks
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
