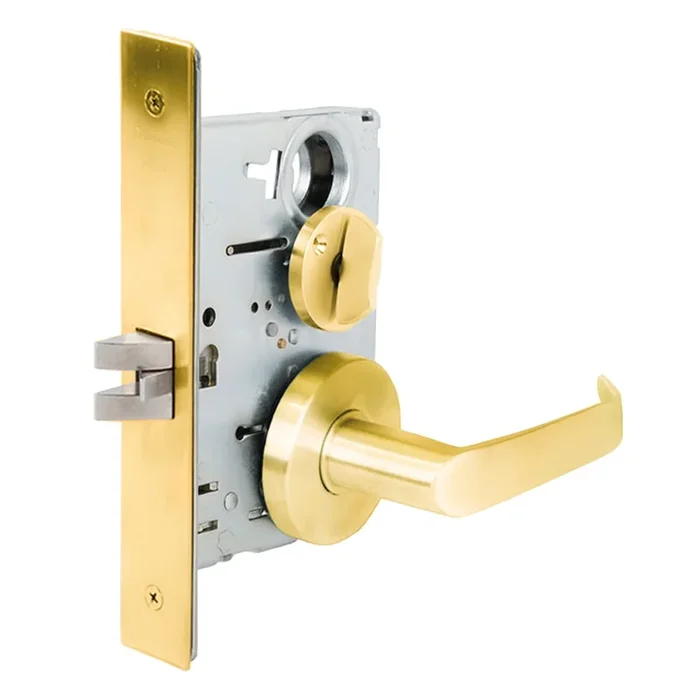

Falcon Lock MA321 DG 605 Privacy Mortise Lock Instructions
Falcon MA321 DG 605 Privacy Mortise Lock offers a robust Grade 1 privacy solution without entry lockout, making it ideal for high-traffic environments such as offices, hospitals, and educational facilities. Featuring a sleek Dane lever design and a Gala Rose escutcheon, this lock combines functionality with an elegant bright brass finish that complements various interior styles. Built for durability, the MA Series locks are crafted from cold-formed steel with zinc dichromate plating, ensuring long-lasting performance. The field-reversible handing allows for easy installation and adaptability to different door orientations. With a deadbolt throw of 1 inch and a stainless steel latch bolt with a 3/4-inch projection, this lock provides reliable security. The Falcon MA321 is equipped with solid brass cylinders and includes two nickel silver keys, ensuring effortless access control. Its heavy-duty through-bolted trim design enhances alignment and stability, while the lock meets ANSI/BHMA 156.13 standards and is UL listed for 3-hour fire ratings.This privacy mortise lock is designed to accommodate door thicknesses from 1-3/8 inches to 2-1/2 inches and features a non-handed strike for easy installation. Choose the Falcon MA321 DG 605 for security that stands the test of time.
Privacy Mortise Lock
Grade 1 Privacy With No Entry Lockout Mortise Lock, Non-Keyed, Dane Lever, Gala Rose, Bright Brass Finish, Field Reversible
The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon’s toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they’re backed by one of the best names in the business – Allegion.
Provides security and is built to stand up to constant use without fail.
- Door thickness:Standard accommodates thickness of 1-3/8” to 2-1/2”.
- Backset:2-3/4” only.
- Case:Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
- Hubs:Hardened steel.
- Handing:Right hand is standard; left hand optional. Reversible in the field.
- Cylinders:Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
- Keyways:“G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
- Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
- Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
- Dead Bolt:1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
- Faceplates:(Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
- Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
- Electrified Functions:Available in 12 or 24 VDC.
- ANSI/BHMA:Meets ANSI/BHMA 156.13, Series 1000.
- UL:3 hour A label.
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI/BHMA 156.13 Series 1000 Grade 1
Ansi Function: F22 – Privacy
Base Material: Brass
Bolt Projection: 3/4″ Latch
Bolt Throw: 3/4″ Latch
Commercial Residential: Commercial
Cylinder Type: Non-Keyed
Door Thickness: 1-3/4″ to 1-7/8″
Finish: 605/US3
Finish Family: Polished Brass
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: MA321-Privacy With No Entry Lockout
Function Family: Privacy
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Latch Backset Dim: 2-3/4″
Latch Backset Dimension: 2-3/4″
Lever Knob: Lever
Leverknob Design: D – Dane Lever
Leverknob Design Family: Straight Return Lever
Lock Face Size: 8″ x 1-1/4″
Pack Qty: 1
Projection: 2-1/2″
Rose Escutcheon: Rose
Roseescutcheon Design: G – Gala Rose
Roseescutcheon Dimensions: 2-9/16″ Diameter
Screws: Combination
Series: MA Series Grade 1 Mortise Locks
Std Latch Backset Dim: 2-3/4″
Std Latch Type: Anti-Friction Latch
Std Strike Height: 4-7/8″
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Resources
- MA Series Grade 1 Mortise Locks Cut Sheet
- MA-Series Installation Instructions
- MA-Series Sell Sheet
- MA-Series Service Manual
- Video: Falcon MA Mortise Lock Installation
- Von Duprin Finishes Chart
