Description

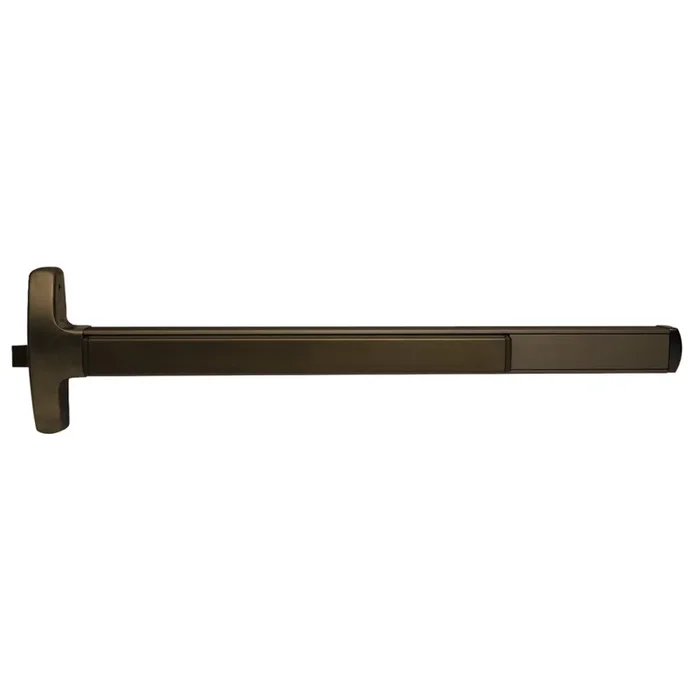

Falcon Lock MELRX24-R-C 4 313AN RHR Rim Exit Device with Nightlatch – 4′ Instruction
Falcon Lock MELRX24-R-C 4 313AN RHR Rim Exit Device is a top-tier solution for high-traffic areas demanding both security and accessibility. Engineered to meet Grade 1 standards, this 48-inch narrow stile exit device features a sleek pushpad design, ensuring effortless operation while maintaining an attractive appearance. The device incorporates a night latch function, providing reliable security without compromising ease of use. Constructed from durable materials, the stainless steel pushpad cover offers a scratch-resistant surface, making it ideal for commercial environments. With motorized electric latch retraction, this exit device enhances accessibility, allowing for seamless integration into access control systems. Designed for right-hand reverse applications, it accommodates doors made of wood or metal with a thickness of 1-3/4 inches. The Falcon Lock MELRX24-R-C operates without a pull cylinder, featuring a cylinder-only escutcheon trim, which streamlines installation and maintains a clean aesthetic. The device is provided with a request-to-exit switch, ensuring compliance with safety standards. Finished in dark bronze anodized aluminum, it not only performs exceptionally but also adds a polished look to your door hardware. Choose the Falcon MELRX24-R-C for a reliable, stylish, and efficient exit solution tailored for commercial use.
Rim Exit Device, Nightlatch 4′
Grade 1 Rim Exit Bar, Narrow Stile Pushpad, 48″ Device, Night Latch Function, No Pull Cylinder Only Escutcheon Trim, Less Dogging, Motorized Electric Latch Retraction, Request to Exit, Dark Bronze Anodized Aluminum Finish, Right Hand Reverse
The Falcon 24-R Series narrow stile rim device allows for application versatility in high-traffic installations. Standard features include a single-point, rim type latch and a streamlined touch bar design. This device can also be electrified for maximum ease of use and accessibility.
Narrow Stile
Stainless steel pushpad cover for a scratch-resistant surface.
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.3-2001
Commercial Residential: Commercial
Device Length: 48″
Device Type: Rim
Dogging Options: Less Dogging
Door Material: Wood or Metal
Door Thickness: 1-3/4″
Electric Options: Motorized Electric Latch Retraction
Finish: 313
Finish Family: Dark Bronze
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Right Hand Reverse
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Mechanical Function: Night Latch
Minimum Stile Size: 2-1/8″
Pack Qty: 1
Pbs Options: 40090292, 40135713, 216157553
Physical Appearance: Narrow Stile Pushpad
Reversible: No
Series: 24 Series Exit Devices
Strike Standard: 299F
Subtype: Rim Exit Devices
Switch Type: Request to Exit
Trim Design: No Pull
Trim Part No: 718C-C SP313 RHR
Trim Type: Cylinder Only Escutcheon
Type: Exit Devices
Unit of Measure: Each
Resources
- 19, 24, 25 and XX Series Exit Devices Service Manual
- 24 Series / 25 Series Sell Sheet
- 24 Series Exit Devices Cut Sheet
- 24-C Installation Instructions
- 24-R Installation Instructions
- 24-V Installation Instructions
- 24-WDC Installation Instructions
- Falcon Motorized Electric Latch Retraction Kit Data Sheet
- Von Duprin Finishes Chart
