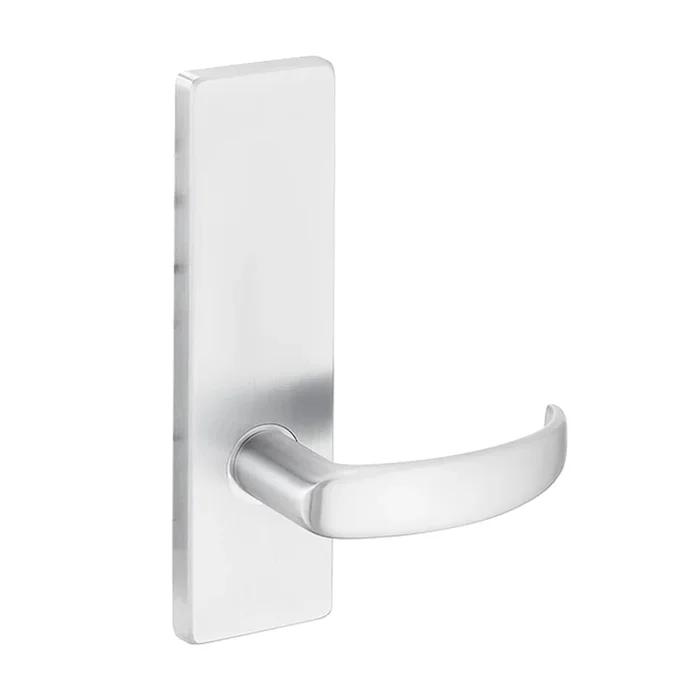

Falcon Lock MA12 QN 625 Single Dummy Mortise Lock
Falcon Lock MA12 QN 625 Single Dummy Mortise Lock combines robust security with sleek design, making it an ideal choice for commercial settings such as offices, hospitals, and educational institutions. This Grade 1 Single Dummy Mortise Trim features the Quantum Lever and Napa Escutcheon, finished in a bright chrome that complements any décor while ensuring durability. Designed for high performance, the MA Series lock is engineered to endure constant use without compromising security. Its interchangeable core simplifies re-keying, allowing for quick adjustments and compatibility with SFIC products from other manufacturers. The lock accommodates standard door thicknesses ranging from 1-3/8″ to 2-1/2″ and has a backset of 2-3/4″. Constructed with a cold-formed steel case and reinforced with heavy-duty components, including a two-piece stainless steel latch bolt and a robust deadbolt, the MA12 provides exceptional resistance to tampering. It features bind-resistant trim with heavy-duty inserts for reliable alignment and strength. Additionally, it meets ANSI/BHMA standards and is UL listed for a 3-hour fire rating. Upgrade your security with the Falcon MA12 QN 625, where functionality meets style for lasting peace of mind.
Single Dummy Mortise Lock
Grade 1 Single Dummy Mortise Trim, Quantum Lever, Napa Escutcheon, Bright Chrome Finish
The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon’s toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they’re backed by one of the best names in the business – Allegion.
Provides security and is built to stand up to constant use without fail.
- Door thickness:Standard accommodates thickness of 1-3/8” to 2-1/2”.
- Backset:2-3/4” only.
- Case:Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
- Hubs:Hardened steel.
- Handing:Right hand is standard; left hand optional. Reversible in the field.
- Cylinders:Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
- Keyways:“G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
- Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
- Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
- Dead Bolt:1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
- Faceplates:(Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
- Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
- Electrified Functions:Available in 12 or 24 VDC.
- ANSI/BHMA:Meets ANSI/BHMA 156.13, Series 1000.
- UL:3 hour A label.
Attributes
Manufacturer surcharge: 4.5%
Base Material: Brass or Bronze
Commercial Residential: Commercial
Finish: 625/US26
Function: MA12-Single Dummy Trim
Grade: Grade 1
Installation: Commercial
Leverknob Design: Q – Quantum Lever
Pack Qty: 1
Roseescutcheon Design: N – Napa Escutcheon
Series: MA Series Grade 1 Mortise Locks
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- MA Series Grade 1 Mortise Locks Cut Sheet
- MA-Series Installation Instructions
- MA-Series Sell Sheet
- MA-Series Service Manual
- Video: Falcon MA Mortise Lock Installation
- Von Duprin Finishes Chart
