Description

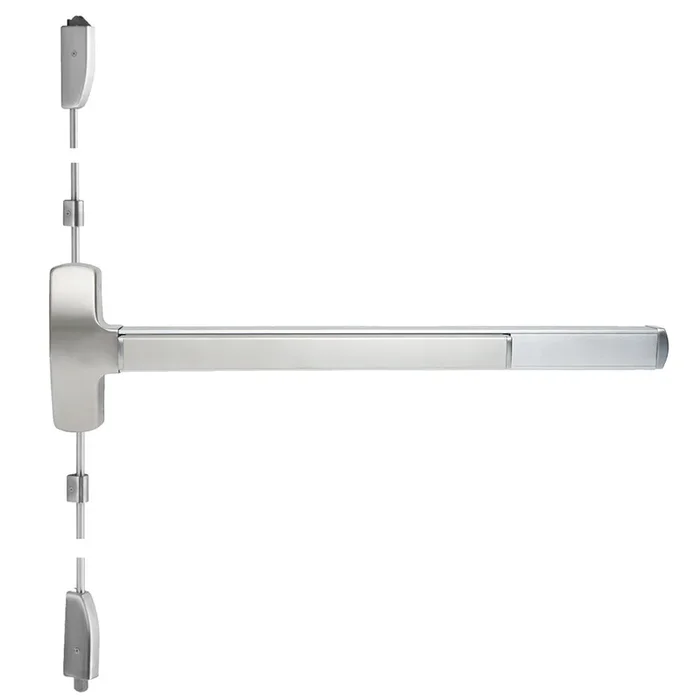

Falcon Lock F-25-V-L-NL-D 3 32D RHR SVR Nightlatch Exit Device, 3′
Falcon Lock F-25-V-L-NL-D 3 32D RHR SVR Exit Device offers a robust solution for high-traffic environments, featuring a Grade 1 surface vertical rod design that ensures reliability and safety. This 36″ fire-rated device is suitable for doors up to 84″ in height and is designed with a night latch function, providing added security when needed. The architectural wide-stile pushpad enhances both usability and aesthetics, making it ideal for various applications, including offices, churches, retail spaces, and healthcare facilities. Constructed from durable stainless steel with a sleek satin finish (630/US32D), this exit device not only meets ANSI A156.3-2001 standards but also offers versatility with less dogging options. The Falcon 25 Series is equipped with patent-pending deadlocking technology, ensuring maximum safety during operation. Its streamlined styling allows for a clean installation while accommodating new construction or retrofitting needs. With features like a choice of A or B label fire ratings, electrified options, and a full complement of trims, the Falcon F-25-V-L-NL-D is a smart choice for building professionals looking for quality, durability, and flexibility in exit hardware solutions.
SVR Exit Device, Nightlatch 3′
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36″ Fire Rated Device, 84″ Door Height, Night Latch Function, Dane Lever Trim, Less Dogging, Satin Stainless Steel Finish, Right Hand Reverse
High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon 25-V Series delivers with a surface-applied design that includes standard top latch and deadlocking. The sleek touch bar design ensures an attractive installation.
Architectural wide-stile push pad exit devices providing quality and durability at an affordable price.
A host of features makes this a smart solution, like a choice of an A or B label fire rating, electrified and panic options, and a full complement of trims. Sleek, streamlined styling and a choice of wide-stile device applications means a smart solution for your building design, as well as its use.
Features:
- Maximum flexibility in a variety of applications
- Wide range of features and options
- Patent pending deadlocking technology
Applications:
- Frequent traffic
- Offices, churches, hospitality, retail, education, healthcare
- Interior, exterior, new construction, retro-fit
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.3-2001
Base Material: Stainless Steel
Commercial Residential: Commercial
Device Length: 36″
Device Type: Surface Vertical Rod
Dogging Options: Less Dogging
Door Height: 84″
Door Material: Wood or Metal
Door Thickness: 1-3/4″
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: Yes {Variable}
Grade: Grade 1
Handing: Right Hand Reverse
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Mechanical Function: Night Latch
Minimum Stile Size: 3-1/2″
Pack Qty: 1
Pbs Options: 65172895
Physical Appearance: Wide Stile Pushpad
Reversible: Yes
Series: 25 Series Exit Devices
Strike Bottom: 2130
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 3788
Trim Design: D – Dane
Trim Part No: 510L-NL-D US32D
Trim Type: Lever
Type: Exit Devices
Unit of Measure: Each
Resources
- 19, 24, 25 and XX Series Exit Devices Service Manual
- 24 Series / 25 Series Sell Sheet
- 25 Series Exit Devices Cut Sheet
- 25-C Installation Instructions
- 25-M Installation Instructions
- 25-R Installation Instructions
- 25-V Installation Instructions
- 25-WDC Installation Instructions
- 510L-NL/510L-DT 513K-NL/513K-DT Installation Instructions
- Falcon Motorized Electric Latch Retraction Kit Data Sheet
- Video: Falcon 25R Rim Exit Device Installation
- Von Duprin Finishes Chart
