Description

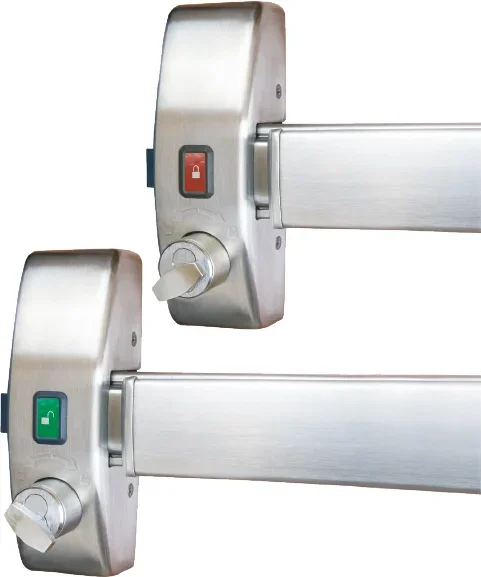

PHI FL2110VI-4908A-LHR-630-36 Fire Rated Rim Exit Device, Double Cylinder, Vandal Resistant Lever, 36in
Precision Hardware PHI FL2110VI-4908A-LHR-630-36 Fire Rated Rim Exit Device is engineered for superior safety and security in high-traffic environments such as schools, auditoriums, and gymnasiums. This double-cylinder exit device features a visual lock/unlock indicator, ensuring that users can quickly assess the security status, even in low light conditions. The ANSI “10” function, also known as the Intruder Function, adds an additional layer of security with its quarter-turn activation for swift lockdown procedures. Constructed from grade 1 materials, the PHI FL2110VI is designed to withstand the rigors of heavy use, making it ideal for facilities that demand reliability and durability. The vandal-resistant lever and escutcheon plate trim are specifically designed to resist abuse, while the weatherproof embossed directional indicator ensures that users can easily identify lock/unlock status without the concern of peeling labels. With a satin stainless steel finish (630/US32D), this device not only meets fire-rated standards but also complements a variety of architectural styles. This exit device is available as a complete unit or as a retrofit conversion kit for existing Precision models, making it a versatile choice for enhancing building security.
Fire Rated Rim Exit Device, Double Cylinder with Visual Indicator, Key Locks/Unlocks Vandal Resistant Lever x Escutcheon Plate Trim, LHR, Only Trim is Reversible, No Dogging, 36in, Grade 1, 630/US32D Stainless Steel
Notice: The info below is not item specific.
Precision exit devices have earned a reputation for strength in every situation—performing in even the most abusive applications. Designed for high occupancy arenas including classrooms, auditoriums or gymnasiums, the Precision 2110VI exit device provides code compliant safe egress with fast and efficient security lockdown. The 2110VI incorporates the ANSI “10” function, also referred to as the “Intruder Function” with Lock/Unlock status and directional indicator integrated into the housing and contains reflective material that may be seen in low light conditions. It boasts an embossed directional indicator that offers quarter-turn (90°) activation to enable faster lock down. The Precision 2110VI is available as a complete exit device or as a retrofit field conversion kit.
Features:
- Integrated visual lock/unlock indicator – resistant To high traffic & abuse.
- Low light color-coded reflective security indicator – Enables easy to read security status in low light facility lock down protocols.
- Embossed directional indicator – Visual friendly lock/unlock directional indicator – weatherproof, no peeling labels.
- Quarter-turn lock down activation – Fast & efficient security lock down requiring limited key or thumbturn rotation.
- Field conversion kits – Enables field conversion of existing 2108 or 2110 precision exit devices to include visual indicators
Functions:
- 10VI: Intruder function with visual lock/unlock & directional indicator (available on rim only)
- 10: Intruder function with directional indicator
- 10/Intruder function- Interior key or thumb-turn locks/unlocks outside lever trim. Lever trim key retracts latch (rim cylinder or thumb turn sold separately)
- Note: Hex or cylinder dogging not recommended for use with 2110VI double cylinder function
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 613 – Oil-rubbed bronze
- 622 – Powder coated black
- 625 – Bright chrome
- 626W – Satin chrome weatherized
- 628 – Satin aluminum, clear anodized
- 630 – Satin stainless steel
- 630AM Satin – Stainless steel with ultra shield
Attributes
Alternate Codes: FL2110VI-4908A-LHR-630-36, FL2110VI4908ALHR63036, PHGFL2110VI-4908A-630-36-LHR
Category: Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices
Device Width: 36″
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Rim device
Finish Code: 630
Finish Color: Satin Stainless Steel
Fire Rated: Yes
Function: Entry, Institution, Office
Handing: Left Handed Reverse
Lever Design: A
Pull Design: Square
Rose/ Escutcheon: 49 Escutcheon – PHI
Series: 3R0
