Description

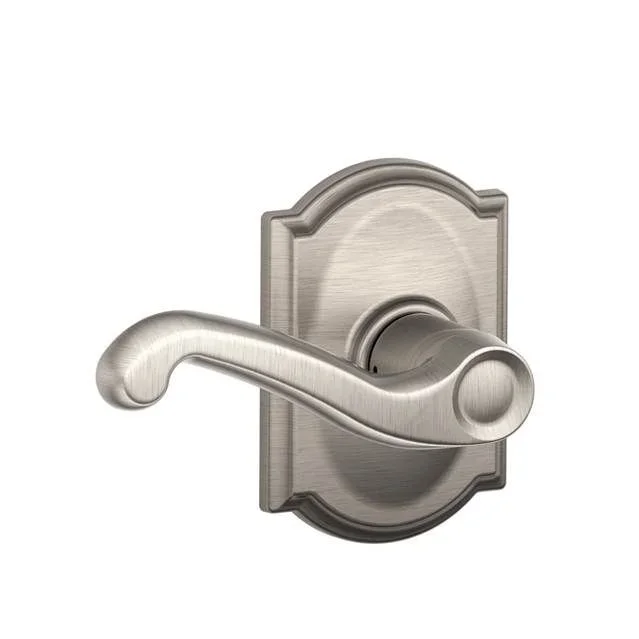

Schlage F10FLA619CAM Flair Lever Camelot Rose Passage Lock, Satin Nickel, 16080 Latch, 10027 Strike
Schlage Residential F10FLA619CAM Flair Lever with Camelot Rose Passage Lock offers a perfect blend of style and functionality, making it an excellent choice for both residential and commercial spaces. Designed for doors ranging from 1-3/8″ to 1-3/4″ thick, this non-locking passage lever is ideal for closets and rooms where privacy is not a concern.The Flair lever, paired with the elegant Camelot rose, not only enhances the aesthetic appeal of your interiors but also ensures quality construction for exceptional security. The satin nickel finish adds a touch of sophistication, coordinating seamlessly with plumbing and lighting fixtures. With reversible handing, installation is a breeze-requiring only a screwdriver and following a simple three-step process. This model is certified as Commercial Grade 2, providing peace of mind in high-traffic areas. Its adjustable spring latch accommodates dual backset options of 2-3/8″ or 2-3/4″, and a 2-1/8″ crossbore size ensures compatibility with standard door preparations.Backed by a limited lifetime mechanical and finish warranty, the Schlage F10FLA619CAM lever is not only a stylish addition but also a durable choice for your door hardware needs.
Flair Lever with Camelot Rose Passage Lock with 16080 Latch and 10027 Strike Satin Nickel Finish
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
- Non-Locking – Ideal for Closets and Rooms Where Locking is Not Needed
- Reversible Handing
- Easy 3-Step Installation, Only a Screwdriver Needed
- Lifetime Mechanical & Finish Warranty
- Quality Materials and Construction for Exceptional Security
- Quality Finishes Coordinate with Plumbing and Lighting
- Certified Commercial Grade 2
- For 1-3/8″ to 1-3/4″ Doors
- Limited Lifetime Mechanical and Finish Warranty
Attributes
Ansi: A156.36-2016, A156.40-2015
Ansi Function: F75 – Passage
Backset: Dual Option, Round or Drive In, Adjustable Spring Latch, 2-3/8″ or 2-3/4″ Backset
Base Material: Brass or Bronze
Category: Mechanical Residential Locksets
Commercial Residential: Residential
Country of origin: Mexico
Crossbore Size: 2-1/8″ Bore
Design: Flair Lever with Camelot Rose
Dimension: 4″ Lever and 2-1/4″ Projection with 2-3/4″ x 4-1/8″ Rose
Door Range: 1-3/8″ to 1-3/4″
Door Thickness: 1-3/8 In. – 1-3/4 In.
Finish: Satin Nickel
Finish Code: 619
Finish : Satin Nickel Plated Clear Coated
Finish Family: Matte Silver
Function: F10-Hall and Closet
Function Family: Passage
Grade: Grade 2
Handing: Reversible
Hazardous Material: NO
Installation: Residential
Latch Faceplate Dimension: 1″ x 2-1/4″
Lever Knob Design: FLA – Flair
Leverknob Design: FLA – Flair Lever
Leverknob Design Family: Straight Lever
Limited Warranty: Lifetime
Manufacturer Warranty: Limited Lifetime Mechanical and Finish Warranty
Material: Zinc
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
PO date: 2024-10-01
Pack Qty: 1
Pbs Options: 199022796
Projection: 2-1/4″
Rose Escutcheon Design: CAM – Camelot
Roseescutcheon Design: CAM – Camelot Rose
Roseescutcheon Dimensions: 12-7/8″ x 3-1/4″
Screws: Combination
Series: F Series
Std Strike Height: 2-1/4″
Std Strike Number: 10-027
Std Strike Type: Full Lip Radius Strike
Std Strike Width: 1-5/8″
Strike: Round Corner Full Lip Strike
Strike Dimension: 2-1/4″ x 1-5/8″ x 1-1/8″ Lip
Subcategory: Residential Door Levers
Subtype: Door Levers
Type: Residential Locksets
Unit of Measure: Each
Upc: 043156120345
Upc Code: 43156120345
