Description

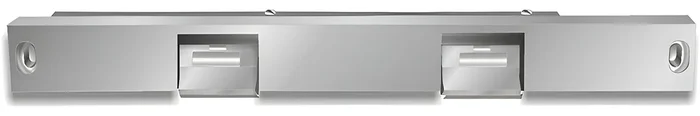

Folger Adam 310-4-2 F 12D 630 LCBMA 300 Series Double Strike Instructions
Folger Adam 310-4-2 F 12D 630 LCBMA 300 Series Double Strike is a robust electric strike designed for heavy-duty applications, making it ideal for both commercial and industrial settings. Constructed entirely of stainless steel, this electric strike ensures exceptional strength and corrosion resistance, effectively handling high-abuse environments where other strikes may fail.This fail-safe model features a complete 12VDC electric strike with a double, PK keeper configuration and a 5″ center-to-center (CTC) latchbolt. The device is UL 1034 burglary-resistant listed and meets the ANSI/BHMA A156.31 Grade 1 standards, ensuring its reliability and security. With a static strength of 1,500 lbs and dynamic strength of 70 ft-lbs, it offers impressive durability, while its endurance rating of 500,000 cycles guarantees long-lasting performance. Designed for surface vertical rod exit devices, the 310 Series accommodates a Pullman-style latchbolt and features an adjustable keeper to address door and frame misalignment. Tamper resistant and easy to install, it comes with a plug-in connector for convenience. Backed by a five-year limited warranty, this electric strike is a smart choice for secure access solutions in demanding environments.
300 Series Double Strike
Fail Safe, Complete 12VDC Electric Strike, Double, PK Keeper, 5″ CTC Latchbolt & Locking Cam Monitor with Auxiliary Switch, Satin Stainless Steel
The 310 Series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes.
The 310-4 vertical surface mounted series is designed for heavy duty applications on single or double doors.
This line of electric strikes will accommodate rim exit devices with a swinging, Pullman style latchbolt.
- UL1034, burglary-resistant listed
- UL 294 (6th Edition) listed
- ANSI/BHMA A156.31, Grade 1
- New York City accepted
- RoHS compliant
- Tamper resistant, heavy-duty construction
- Constructed entirely of stainless steel for strengthand corrosion resistance
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance 500,000 cycles
- Adjustable keeper to allow for door andframe misalignment
- Pullman keeper
- Non-handed
- Fail Secure (standard)
- Plug-in connector
- Five year limited warranty
Attributes
Amp Draw: .51 @ 12V .25 @ 24V
Application: Surface Vertical Rod Pairs
Baa Qualified: Yes
Base Material: Stainless Steel
Commercial Residential: Commercial
Configuration: Double, 5″ ctc
Country of origin: USA
Faceplate Size: 14″ x 1-1/2″
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
For Use With: Surface Vertical Rod Exit Devices
Frame Application: Metal or Wood
Function: Fail Safe
Grade: Grade 1
Holding Force: 1500 lbs.
Installation: Commercial
Keeper Size: PK Keeper
Limited Warranty: 5 Years
Operating Voltage: 12 VDC
Origin: USA
Pack Height: 2.5″
Pack Length: 17.25″
Pack Qty: 1
Pack Volume: 258.75 in³
Pack Width: 6″
Series: 310-4-x Series Electric Strikes
Ship Weight: 5.2 lbs.
Subtype: Electric Strikes
Switch Type: Latchbolt, Locking Cam Monitor with Auxiliary Switch
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Resources
- AA ESH Electric Strike Overview
- Electric Strike Selector Guide
