Description

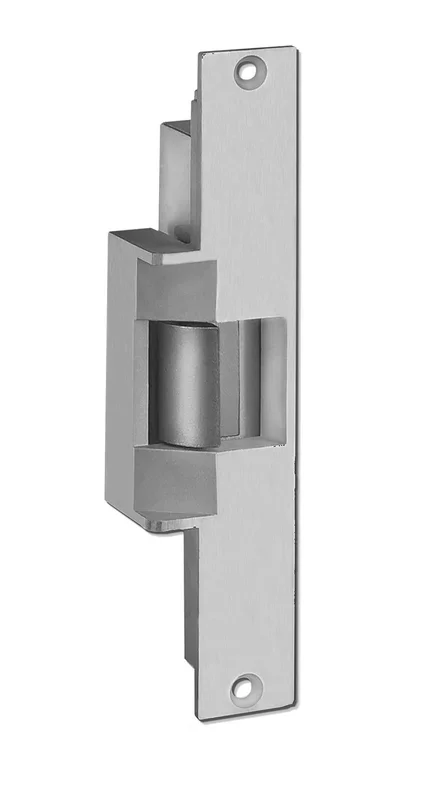

Folger Adam 310-2 3/4 24D 612 300 Series Electric Strike
Folger Adam 310-2 3/4 24D 612 300 Series Electric Strike offers unmatched reliability and security for demanding environments. This fail-secure electric strike is engineered for heavy-duty applications, featuring a robust stainless steel construction that stands up to high abuse scenarios where other electric strikes may fail. With a 3-hour fire rating, it complies with UL 10C for both single and double doors, ensuring fire safety standards are met. Designed for compatibility with cylindrical locks, mortise exit, and latch locks, the 310 Series provides exceptional functionality with a static strength of 1,500 lbs and a dynamic strength of 70 ft-lbs. The keeper depth of 3/4″ and its horizontally adjustable keeper accommodate door and frame misalignments, enhancing installation flexibility.Operating on 24VDC with a low amp draw of just .25 amps, this electric strike is not only energy-efficient but also equipped with a tamper-resistant design for added security. The unit comes with a five-year limited warranty, reflecting its durability and quality. Ideal for commercial settings, the Folger Adam 310-2 is the perfect choice for those who demand strength, reliability, and compliance in their door hardware solutions.
300 Series Electric Strike
Fail Secure, Complete 24VDC Electric Strike, 3/4″ Keeper, Satin Bronze
The 310 Series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes.
The 310 Series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications.
The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes.
- UL 10C fire-rated, 3 hour single door(fail secure only)
- UL 10C fire-rated, 3 hour double door(fail secure only)
- CAN4-S104 (ULC-S104) fire door conformant
- UL1034, burglary-resistant listed
- UL 294 (6th Edition) listed
- ANSI/BHMA A156.31, Grade 1
- New York City accepted
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- RoHS compliant
- .51 Amps @ 12VDC continuous duty
- .25 Amps @ 24VDC continuous duty
- Tamper resistant, heavy-duty construction
- Constructed entirely of stainless steel for strength and corrosion resistance
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance rating 500,000 cycles
- Horizontally adjustable keeper to allow for door and frame misalignment
- 1/2″ keeper depth (310-2)
- Non-handed
- Fail Secure (standard)
- Plug-in connector
- Five year limited warranty
- Fail Safe
- LCBMA – Latchbolt & Locking Cam Monitor with Auxiliary Switch (all except 310-2 3/4OB)
Attributes
Amp Draw: .51 @ 12V .25 @ 24V
Application: 3/4″ Latchbolt
Baa Qualified: Yes
Base Material: Bronze
Commercial Residential: Commercial
Configuration: Centered
Country of origin: USA
Faceplate Size: 9″ x 1-3/8″
Finish: 612/US10
Finish Family: Matte Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
For Use With: Cylindrical Locks, Mortise Exit and Latch Locks
Frame Application: Metal or Wood
Function: Fail Secure
Grade: Grade 1
Holding Force: 1500 lbs.
Installation: Commercial
Keeper Size: 3/4″
Limited Warranty: 5 Years
Operating Voltage: 24 VDC
Origin: USA
Pack Height: 2.5″
Pack Length: 12.25″
Pack Qty: 1
Pack Volume: 183.75 in³
Pack Width: 6″
Series: 310 Series Electric Strikes
Ship Weight: 3.2 lbs.
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Resources
- 310 Series Electric Strikes Cut Sheet
- AA ESH Electric Strike Overview
- Electric Strike Selector Guide
