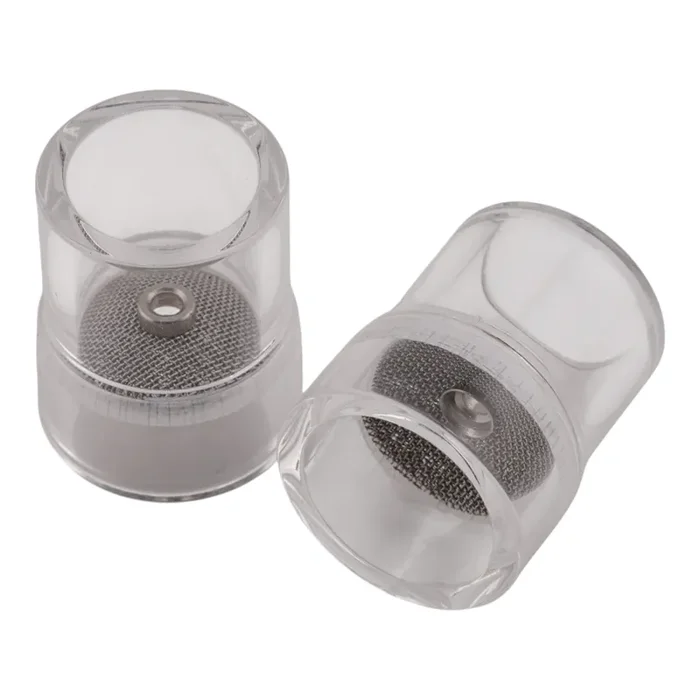

FRK FP12 Quartz TIG Cup
The FRK FP12 glass TIG cup is a large TIG cup specialized for use with stainless steel and exotic metals. With a built in diffuser screen, this product offers superior shield gas coverage. This cup is made of fused quartz, which can handle much more heat than Pyrex/borosilicate glass TIG cups
Features:
- Size #12
- Superior amperage rating compared to OEM
- Includes diffuser for 3/32″ tungsten
- Recommended flow rate 21-30 CFH
- Max tungsten stick out 1″
- Sold as a package of 2
Superior Amperage Rating:
- Max Amps with 1/16″-1.6mm Tungsten 70-150A DC / 60-125A AC
- Max Amps with 3/32″-2.4mm Tungsten 150-250A DC / 120-210A AC
- Max Amps with 1/8″-3.2mm Tungsten 225-330A DC / 150-250A AC
Set-Up Required for 2 Series (9, 20) TIG Torch:
- 2 Series Gas Lens
- 2 Series Wedge Collet
- 2 Series Gas Lens Heat Shield
Set-Up Required for 3 Series (17, 26, 18) TIG Torches:
- 4 Series Stubby Gas Lens
- 4 Series Stubby Wedge Collet
- 4 Series Gas Lens Heat Shield
