Description

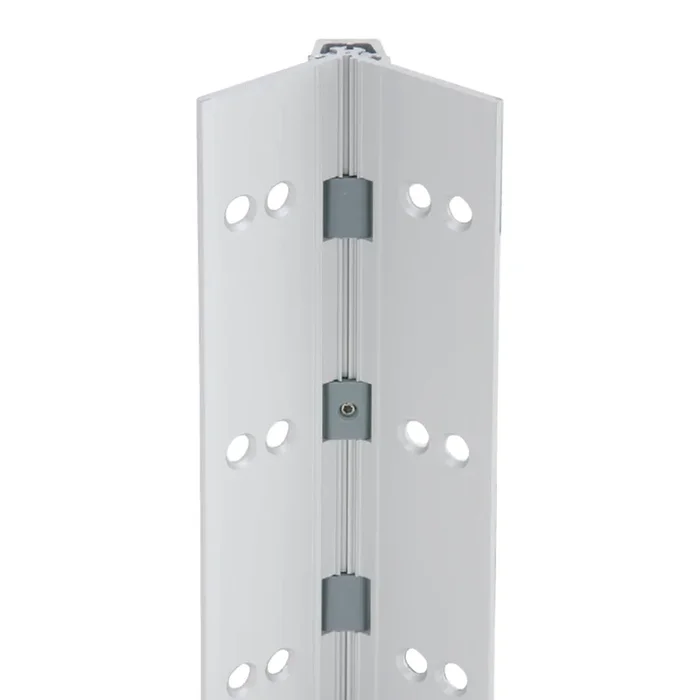

Ives 112HD 83IN 628 Heavy Duty Continuous Hinge – 83in for 1-3/4in Doors, 450lbs, Satin Aluminum
Ives 112HD 83IN 628 Full Mortise Heavy Duty Continuous Hinge is engineered for superior durability and performance, making it an ideal choice for high-use applications. Designed for standard 1-3/4 inch doors and capable of supporting weights up to 450 pounds without reinforcing, this hinge ensures longevity and reliability in busy environments. Its innovative geared continuous design distributes weight evenly along the full length of the frame, significantly reducing the stress typically found at the door’s top hinge point. This unique feature not only minimizes the risk of hinge failure but also keeps doors in perfect alignment, effectively eliminating sagging. The hinge measures 83 inches in length and is compatible with doors up to 48 inches wide, providing flexibility for various installations. It is non-handed, allowing for custom cut lengths, and can be flush mounted for a clean appearance. The hinge exceeds Grade 1 ANSI/BHMA standards, ensuring robust performance even under heavy use. Available in a clear aluminum anodized finish (US28/628), the Ives 112HD hinge also offers optional electric power transfer features and various mounting hardware choices to suit your specific needs. Trust Ives to provide the strength and reliability your doors deserve.
Full Mortise Heavy Duty Continuous Hinge – 83in, 1-3/4in Doors, up to 450lbs, 628/US28 Satin Aluminum
Notice: The info below is not item specific.
Geared continuous hinges are designed to last the life of a building by distributing the weight of a door along the entire length of its frame. The unique design reduces the high amount of stress normally associated at the top of the door and frame on butt hinge applications. Not only does this reduce hinge failure, it also keeps a door in constant alignment, eliminating the chance of door sag. These characteristics make continuous hinges suitable for high-use and high-traffic doors.
Features:
- For 1 3⁄4″ doors
- Spread bearing design
- Non-handed for custom cut lengths
- Flush mounted, no inset
- 48″ Maximum door width
- Beveled or square edge doors
- For doors weighing up to 450 pounds without reinforcing, 600 pounds with reinforcing
Specifications:
- Standard length: 83″, 85″, 95″, 120″
- Standard mounting hardware: 12-24 x 3⁄4″ Steel self drilling/self tapping phillips head screw
- Certifications: Exceeds Grade 1 ANSI/BHMA 156.26 for 150lbs and 300lbs
Options:
- EPT: Electric power transfer
Optional Mounting Hardware:
- SECHM: Security screws – hollow metal door and frame
- SECWDHM: Security screws – 1⁄2 wood, 1⁄2 hollow metal
- SECWDWD: Security screws – wood door and frame
- TEKWD: 1⁄2 Self drill, self tap 1⁄2 wood
- TF: Thread forming screws
- WD: Wood door and frame
Finishes:
- US28/628 – Clear Aluminum Anodized
- 313AN/710 – Dark Bronze Anodized
Attributes
Alternate Codes: 112HD83 628, 112HD83628, 112HD 83IN 628, 112HD83IN628, IVE112HD83 628
Category: Continuous Hinges, Hinges
Door Size: 48″ Max.
Door Type: Metal Door, Wood Door
Finish Color: Satin Chrome
Handing: Non-Handed
Hinge Rating: 450 lbs
Hinge Size: 83″
Hinge Style: Full Mortise
Hinge Type: Continuous Hinge
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
