Description

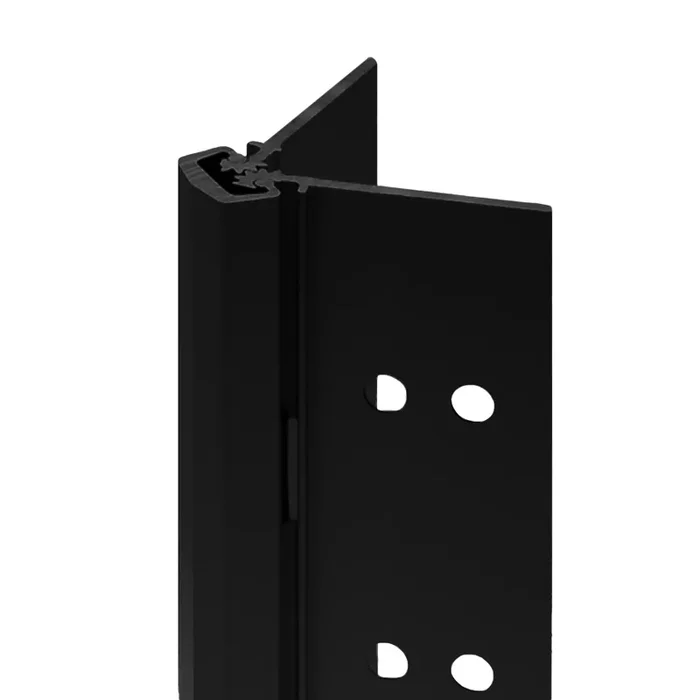

Select Products SL11-95-BK-HD300 95in Heavy Duty Geared Continuous Hinge, Up to 300lb, BK Black
SELECT Products Limited SL11-95-BK-HD300 Full Mortise Heavy Duty Geared Continuous Hinge offers an exceptional solution for high-traffic doors, designed to support loads of up to 300 lb. Made from durable aluminum and available in a sleek black finish, this 95-inch hinge is perfect for those needing reliability and longevity in demanding environments.Engineered to withstand over 25 million cycles, this continuous hinge ensures a lifespan equivalent to more than 60 years of average use, minimizing the need for replacements and maintenance. This not only helps reduce waste but also promotes energy efficiency, making it an eco-friendly choice for modern buildings. The SL11 hinge is compatible with 1-3/4″ doors and accommodates a maximum door width of 48 inches in either 16 gauge hollow metal or 1/8″ aluminum. It can be customized for various lengths and features a comprehensive screw count that ensures secure installation.Whether you opt for conventional overhead closers or concealed sliding arm solutions, the SL11 integrates seamlessly into your setup. Backed by a continuous warranty, this hinge delivers peace of mind alongside its robust functionality, making it an ideal choice for both building professionals and knowledgeable homeowners.
Full Mortise Heavy Duty Geared Continuous Hinge, 95in, Up to 300lb. High Frequency, BK Black
Notice: The info below is not item specific.
The aluminum geared continuous hinges provide the longest-lasting solution for high-traffic doors. As a result, they save materials and energy. Our hinges have been proven to withstand 25 million cycles – equal to more than 60 years of use on the average high-traffic door. A longer life cycle means fewer hinges used, which means fewer resources used, fewer emissions produced and fewer tons of waste. And fewer maintenance dollars and headaches for you. They last so long we back them with our never-ending continuous warranty. They’re a hassle-free way to make a greener building.
Features:
- Lengths: 83″, 85″, 95″ and 120″ lengths standard for nominal door heights. Custom lengths are available.
- Load/Frequency Rating: For 1-3/4″ doors. 48″ max. door width in 16 gauge hollow metal (min.) or 1/8″ aluminum (min.).
- Heavy Duty 300: For high-frequency doors up to 300 lb. without frame or door reinforcement.
- Heavy Duty 600: For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.
- Heavy Duty (LL): Our heavy duty 600 with additional fastener holes for low- to medium-frequency doors up to 1,000 lb., including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy or extra-wide doors.
- Finishes: All SL11 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
- Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.
SL11 Hinge Screw Count:
| Hinge Length and Duty Rating | Door Screws | Frame Screws |
|---|---|---|
| 79″ HD600 | 19 | 19 |
| 83″ HD300/HD600 | 19 | 19 |
| 85″ HD300/HD600 | 19 | 19 |
| 95″ HD300/HD600 | 21 | 21 |
| 120″ HD300/HD600 | 23 | 23 |
| 83″ LL | 26 | 26 |
| 85″ LL | 26 | 26 |
| 95″ LL | 30 | 30 |
| 120″ LL | 34 | 34 |
Attributes
Ship via: No UPS – Common Carrier Only
Alternate Codes: SL11-95-BK-HD300, SL1195BKHD300
Category: Continuous Hinges, Hinges
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
