Description

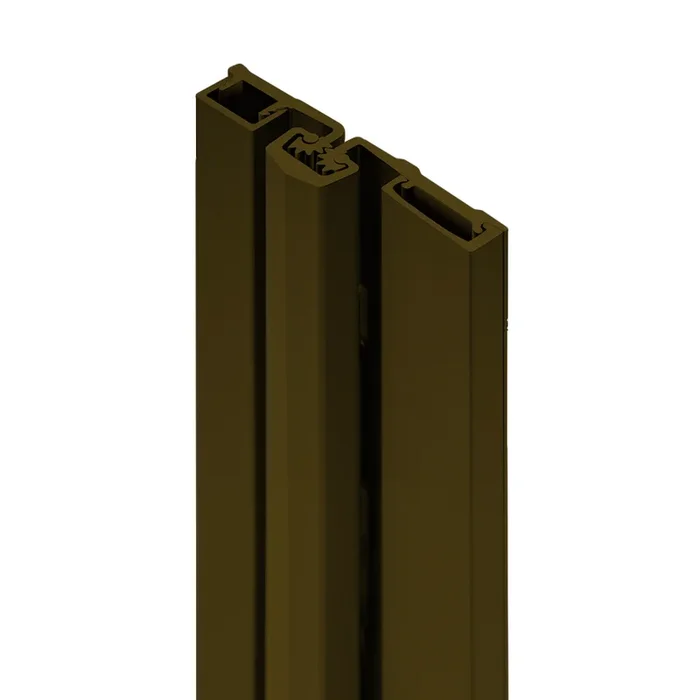

Select Products SL57-83-BR-HD600 Heavy Duty Geared Continuous Hinge, 83in, 600lb, High Frequency, BR Bronze
SELECT Products Limited SL57-83-BR-HD600 Full Surface Heavy Duty Geared Continuous Hinge is engineered for durability and high performance, capable of supporting doors weighing up to 600 pounds. Constructed from extruded 6063 T6 aluminum alloy, this hinge features self-lubricating polyester thrust bearings, ensuring smooth operation even under heavy use. With a standard length of 83 inches, it is suitable for doors ranging from 1-3/8″ to 1-3/4″ thick, and accommodates a maximum door width of 48 inches in 16-gauge hollow metal or 1/8″ aluminum. The SL57 hinge is available in three attractive finishes-clear, dark bronze, and black anodized aluminum-while custom anodized or painted finishes can be ordered. However, it’s important to note that field-applied finishes will void the warranty. This hinge is compatible with various closers, including conventional overhead and concealed sliding arm options, but requires replacement for pivot-type floor closers with fixed center pivots. For added convenience, the SL57-83-BR-HD600 comes with a specified screw count: 10 door screws and 14 frame screws, ensuring a secure installation. Enhance your project with this reliable and robust solution from SELECT Products Limited, designed for high-frequency applications where strength and longevity are paramount.
Full Surface Heavy Duty Geared Continuous Hinge, 83in, Up to 600lb. High Frequency, BR Dark Bronze
Notice: The info below is not item specific.
Features:
- Material: Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.
- Lengths: 83″, 85″, 95″ and 120″ lengths standard for nominal door heights.
- Load/Frequency Rating: For 1-3/8″ – 1-3/4″ doors standard; long barrel nuts available for 2″ – 2-1/4″ doors. 48″ max. door width in 16 gauge hollow metal (min.) or 1/8″ aluminum (min.).
- Heavy Duty 300: For high-frequency doors up to 300lb without frame or door reinforcement.
- Heavy Duty 600: For high-frequency doors up to 600lb. Rivnuts are recommended in the frame when the door exceeds 450lb.
- Finishes: All SL57 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
- Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.
SL57 Hinge Screw Count:
| Hinge Length and Duty Rating | Door Screws | Frame Screws |
|---|---|---|
| 83″ HD300/HD600 | 10 | 14 |
| 85″ HD300/HD600 | 10 | 14 |
| 95″ HD300/HD600 | 11 | 15 |
| 120″ HD300/HD600 | 14 | 18 |
Attributes
Alternate Codes: SL57-83-BR-HD600, SL5783BRHD600
Category: Continuous Hinges, Hinges
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
