Description

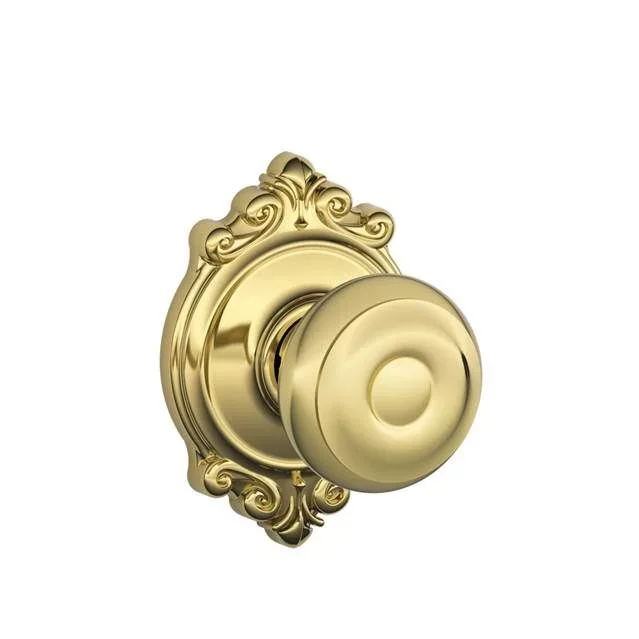

Schlage F10GEO505BRK Georgian Passage Knob with Brookshire Rose, Brass Finish, 16080 Latch
Schlage Residential F10GEO505BRK Georgian Knob with Brookshire Rose Passage Lock combines timeless elegance with robust functionality. Designed for doors between 1-3/8″ and 1-3/4″ thick, this non-locking passage knob is perfect for closets and rooms where privacy isn’t a concern. Its reversible handing makes installation a breeze, allowing for easy adaptation to your specific needs. Constructed from durable zinc and finished in a stunning lifetime brass, this knob not only enhances the aesthetic appeal of your space but also ensures lasting performance. The 2-3/16″ knob and 2-5/16″ projection are complemented by a stylish 3″ x 4-1/4″ Brookshire Rose, adding a classic touch to any interior.Installation is straightforward, requiring only a screwdriver thanks to the easy 3-step process. The adjustable spring latch supports dual backset options of 2-3/8″ or 2-3/4″, ensuring compatibility with various door configurations. Plus, with a limited lifetime mechanical and finish warranty, you can trust in the quality and durability that Schlage is known for. Certified as Commercial Grade 2 and graded best in residential security, durability, and finish, the F10GEO505BRK is an ideal choice for discerning homeowners and building professionals alike.
Georgian Knob with Brookshire Rose Passage Lock with 16080 Latch and 10027 Strike Lifetime Brass Finish
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
- Non-Locking – Ideal for Closets and Rooms Where Locking is Not Needed
- Quality Materials and Construction for Exceptional Security
- Easy 3-Step Installation, Only a Screwdriver Needed
- Lifetime Mechanical & Finish Warranty
- Quality Finishes Coordinate with Plumbing and Lighting
- Certified Commercial Grade 2
- Graded Best in Residential Security, Durability, and Finish
- For 1-3/8″ to 1-3/4″ Doors
- Reversible Handing
- Limited Lifetime Mechanical and Finish Warranty
Attributes
Ansi Function: F75 – Passage
Backset: Dual Option, Round or Drive In, Adjustable Spring Latch, 2-3/8″ or 2-3/4″ Backset
Bolt Protection: 1/2 In.
Category: Mechanical Residential Locksets
Crossbore Size: 2-1/8″ Bore
Design: Georgian Knob with Brookshire Rose
Dimension: 2-3/16″ Knob and 2-5/16″ Projection with 3″ x 4-1/4″ Rose
Door Range: 1-3/8″ to 1-3/4″
Door Thickness: 1-3/8 In. – 1-3/4 In.
Finish: Lifetime Brass
Finish Code: 505
Finish : Lifetime Brass
Function: F10-Hall and Closet
Grade: Grade 2
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Latch Faceplate Dimension: 1″ x 2-1/4″
Latch Number: 16-080
Latch Type: Spring Latch (Unguarded)
Lever Knob Design: GEO – Georgian
Lock Face Size: 2-1/4 In. x 1 In.
Manufacturer Warranty: Limited Lifetime Mechanical and Finish Warranty
Material: Zinc
No Of Inners: 1
Order_ Qty: 1
PO date: 2024-09-02
Rose Escutcheon Design: BRK – Brookshire
Screws: Combination
Series: F Series
Strike: Round Corner Full Lip Strike
Strike Dimension: 2-1/4″ x 1-5/8″ x 1-1/8″ Lip
Strike Height: 2-1/4 In.
Strike Number: 10-027
Strike Type: Full Lip Rad
Strike Width: 1-5/8 In.
Subcategory: Residential Door Knobs
Subtype: Door Knobs
Type: Residential Locksets
Upc: 043156760954
