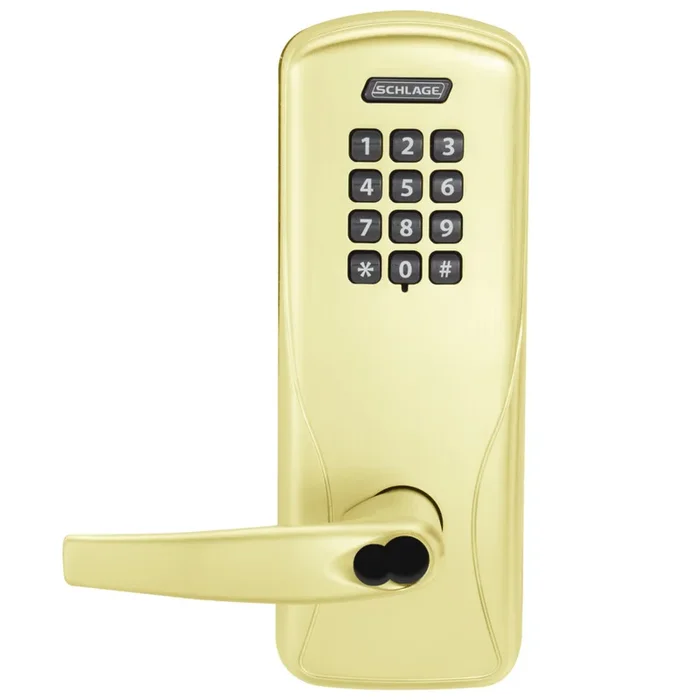

Schlage CO100CY70KPATH605JR Grade 1 Manual Programmable Cylindrical Lock
Schlage Electronics CO100CY70KPATH605JR is a Grade 1 Classroom/Storeroom Cylindrical Lock that seamlessly combines security with user-friendly access control. Designed for commercial applications, this lock features a keypad that can accommodate up to 500 unique users, allowing for easy management of access rights without the hassle of issuing mechanical keys. Its manual programming capability enables administrators to add or delete PIN codes directly at the door, ensuring quick updates as needed. Constructed with a durable brass finish and featuring the elegant Athens lever, this right-handed lock incorporates a dead latch for added security. The Schlage FSIC prep less core provides flexibility for master keying options, and its robust design is UL listed for fire safety, rated for up to 3 hours.Operating on 4 AA batteries, the CO100 offers impressive battery life, lasting up to two years with an exterior temperature tolerance ranging from -31°F to 151°F. Its straightforward installation and compliance with ADA standards make it a practical choice for any facility. Upgrade your security with the Schlage CO100CY70KPATH605JR and enjoy peace of mind knowing your access control is both secure and efficient.
Gr 1 Cylindrical, Manual Prog
Grade 1 Classroom/Storeroom Cylindrical Lock, Keypad, 500 Users, Schlage FSIC Prep Less Core, Athens Lever, Dead Latch, Bright Brass Finish, Right-Handed
The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.
CO-200 offline lock offers credential reader module options, managing up to 2000 users and audits.
The CO Series offers ideal solutions for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system.
The CO-200 steps up significantly in functionality from CO-100 keypad programmable locks. It can be manually or computer programmed with downloads occurring at the lock via the SUS mobile app on a compatible Android device. Credential use can include 3-6 digit PIN, proximity and magnetic stripe cards; dual authentication card + PIN readers are available for extra security. More importantly, this lock offers up to 2000 users with audit capability to note the who, where and when of building or room access.
CO-200 can work in the same offline system as AD-200, CO-220 and CT5000. They can be manually programmed for basic use or managed with PC-based Schlage Express™ software. Select Software Alliance members also offer access control solutions for the CO-200 with added capability that can include lock schedules and audits. Features and capabilities will vary by system; please visit the Software Management tab for additional details.
Reader options
- Proximity reader (125 kHz)
- Proximity reader with keypad
- Magnetic stripe reader in swipe style (triple track, field configurable)
- Magnetic stripe reader with keypad in swipe style
- Keypad only
User verification
- Capable of credential verification <1 second
- Up to 2,000 users/audits depending on access control software
Programming interface
- Schlage Utility Software (SUS) with compatible Android device transfers programming information from computer to lock using the SUS-A cable connection
- Schlage Express PC-based software or Software Alliances member solutions provide access control management for users, audits and locks
Additional
- Battery life – up to 2 years with 4 AA batteries
- Exterior Temp: -31° to 151°F (-35° to 66°C)
- Interior Temp: 32° to 120°F (0° to 49°C) (battery)
- Humidity: 0 – 100% non-condensing
Chassis
- Cylindrical
- Mortise
- Mortise deadbolt
- Exit trim
- Each offered with LED indicator or push button depending on lock function choice
Cylinder and keys
- Standard keyway: Schlage 6-pin Everest 29 S123 with two patented keys
- Classic and restricted keyways, master keying and grand master keying options
- Key-in-lever, FSIC, and SFIC cylinder options
- Less cylinder options to fit common Sargent®, Corbin Russwin®, Medeco®, Yale®and Falcon®cylinders
Functions
- 70 Classroom/Storeroom (cylindrical and mortise only)
- 50 Office (cylindrical and mortise only)
- 40 Privacy with programmable occupancy indication option
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Amp Draw: 250 mA
Ansi: ANSI/BHMA A156.25 (full outdoor), A156.2 Series 4000 Grade 1
Base Material: Brass
Battery Life: 2 Years
Bolt Projection: 1/2″
Bolt Throw: 1/2″
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Schlage FSIC Prep Less Core
Design A: ATH – Athens Lever
Door Thickness: 1-3/4″
Dust Box: No
Finish: 605/US3
Finish Family: Polished Brass
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 70-Classroom/Storeroom
Function Family: Storeroom
Grade: Grade 1
Handing: Right-Handed
Installation: Commercial
Keypad Type: Pushbutton
Latch Backset Dim: 2-3/4″
Latch Backset Dimension: 2-3/4″
Leverknob Design: ATH – Athens Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 2 Years
Lock Platform: Cylindrical Lock with Keypad
Operating Voltage: 4 to 7 VDC
Origin: Mexico
Pack Qty: 1
Pins: 6
Power: 4 AA Batteries
Projection: 3-5/16″
Reader Technology: Keypad Reader
Rose Number: 03-042 RHO 605
Roseescutcheon Design: RHO – Rhodes
Roseescutcheon Dimensions: 3-7/16″ Diameter
Screws: Combination
Series: CO Series Standalone Electronic Locks
Software Included: No
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 13-247 605
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 1-1/4″
Std Strike Number: 10-025 605
Std Strike Type: ANSI Strike
Std Strike Width: 4-7/8″
Strike Dimensions: 4-7/8″ x 1-1/4″
Subtype: Cylindrical Locks with Keypad Trim
Type: Integrated and Pushbutton
Ul Listing: UL 294, ULC S319, UL 10C Listed
Unit of Measure: Each
Users: 500
