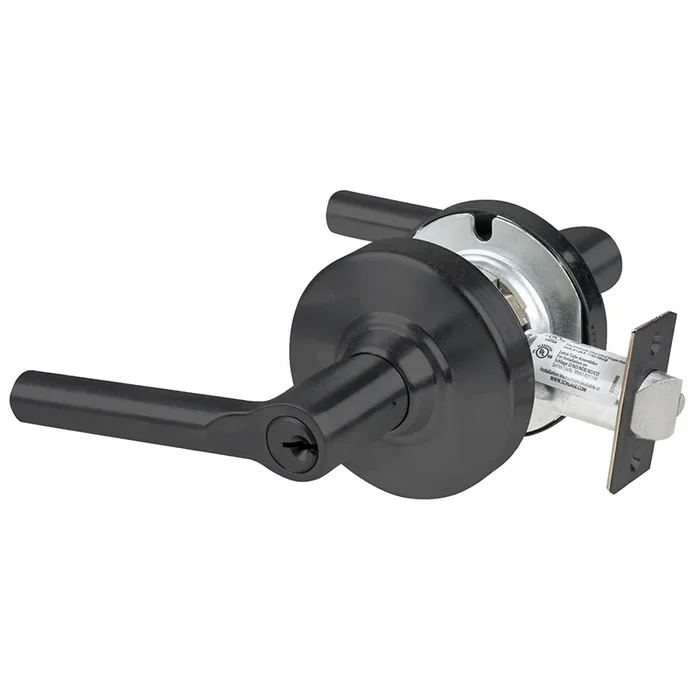

Schlage ND80PDEL BRW 622 Grade 1 Fail Safe Storeroom Lock
Schlage ND80PDEL BRW 622 Gr 1 Storeroom, Fail Safe is a Grade 1 Electrified Cylindrical Lock designed for high-security and fire safety applications, ensuring reliable access control in busy environments. With a storeroom function, this lock operates on 12-24 VDC, delivering fail-safe performance that secures your premises while enabling easy egress in emergencies. The ND Series features a durable matte black finish and a Broadway lever, offering both style and functionality. Its robust construction includes a 6-pin conventional cylinder and a 2-3/4″ backset, making it suitable for doors with a thickness of 1-3/4″ to 2″. This electrified lock is UL Listed, ensuring compliance with stringent safety standards. Ideal for high traffic areas, the Schlage ND80PDEL can be easily integrated into new construction, allowing for seamless electrified door preparation and wiring. It boasts auto-detecting 12-24VDC input, low current draw, and modular Request to Exit (RX) capability, enhancing its versatility for various applications. Whether part of a wired access control system or used independently, this lock supports multiple configurations, making it a smart choice for commercial environments. With a one-year limited warranty, you can trust the reliability and performance of Schlage’s innovative locking solutions.
Gr 1 Storeroom, Fail Safe
Grade 1 Electrified Cylindrical Lock, Storeroom Function, 12-24 VDC, Fail Safe, 2-3/4″ Backset, Broadway Lever, 6-Pin Cylinder, Matte Black Finish
ND Series locks are available for electrically locking and unlocking controls for high security and fire safety applications.They are UL Listed and rated for both fire and electrical single-point locking on labeled doors. RX feature is available on ND10, ND12, ND80 and ND96 families. Switch is ready to be used in a normally open or normally closed application.
Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications.
Wired electrified locks complement the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch.
Applications
The electrified ND is ideally used in:
- High traffic areas, where line power ensures continuous operation
- New construction, where electrified door prep, hinges and wiring can easily be incorporated into the building
Key Features
All mechanical features plus:
- Auto-detecting 12-24VDC input
- Selectable EL/EU operation
- Low 0.23 amp max current draw that allows multiple locks on a single power supply
- Low 0.010 amp holding current that eliminates “hot levers” in electrically locked applications
- Modular Request to Exit (RX) that can be added at any time
- Inventory friendly–one lock supports 12-24V, EL or EU, with or without RX
- Six electrified functions for application flexibility
Attributes
Manufacturer surcharge: 4.5%
Amp Draw: 0.23
Application: Storeroom Lever
Baa Qualified: Yes
Base Material: Brass or Bronze
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4″ to 2″
Dust Box: None
Finish: 622/US19
Finish Family: Black
Function: Electrically Locked (Fail Safe)
Grade: Grade 1
Installation: Commercial
Latch Backset Dim: 2-3/4″
Leverknob Design: BRW – Broadway Lever
Leverknob Design Family: Straight Lever
Limited Warranty: 1 Year
Lock Face Size: 2-1/4″ X 1-1/8″
Operating Voltage: 12/24 VDC
Origin: Mexico
Pack Height 2: 10″
Pack Length 2: 16.38″
Pack Qty: 1
Pack Width 2: 14.63″
Pbs Options: ‘4541274,4541421
Power: Hard Wired
Product Height: 4.75″
Product Length: 9.5″
Product Width: 8.25″
Roseescutcheon Design: 3-7/16″ Diameter
Screws: Combination
Series: ND Series Electrified Lever Locks
Ship Weight: 5 lbs.
Std Latch Number: 14-047
Std Latch Type: Guarded Latch
Std Strike Height: 4-7/8″
Std Strike Number: 10-025
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Electric Cylindrical Lock
Switch Type: None
Type: Electric Locks
