Description

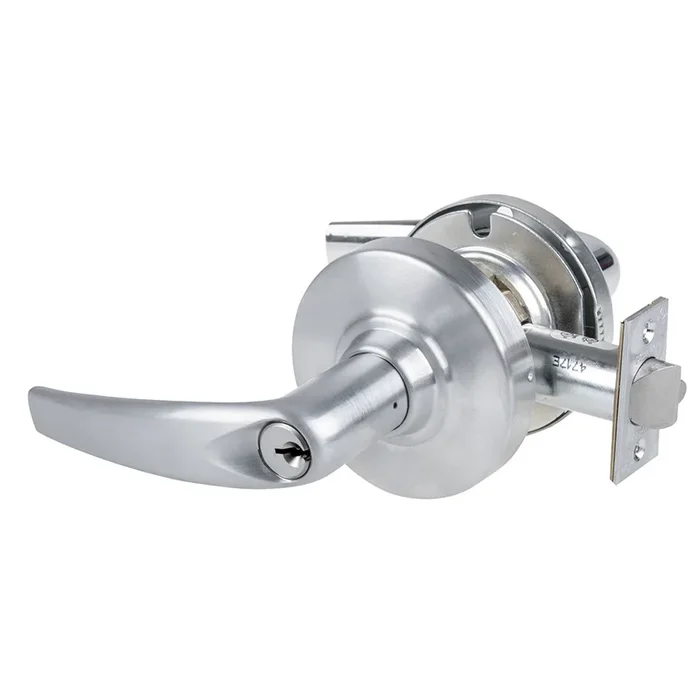

Schlage ND80PDEL ATH 626 RX Grade 1 Fail Safe Storeroom Lock
Schlage ND80PDEL ATH 626 RX Gr 1 Storeroom, Fail Safe is a Grade 1 electrified cylindrical lock designed for high-security and fire safety applications. This storeroom function lock operates on a 12-24 VDC power supply, ensuring reliability in high traffic areas where continuous operation is paramount. The lock features a 2-3/4″ backset and an elegant Athens lever in a sleek satin chrome finish, making it both functional and aesthetically pleasing. Crafted to meet UL standards, the ND80PDEL is rated for both fire and electrical single-point locking on labeled doors. Its auto-detecting input simplifies installation, while the selectable EL/EU operation allows for versatile application. With a low maximum current draw of 0.23 amps, multiple locks can be powered from a single supply, enhancing energy efficiency. The modular Request to Exit (RX) feature can be incorporated at any time, adding to its flexibility. Ideal for new constructions, the ND80PDEL complements wired access control systems or can function independently with a remote switch. This lock’s durability, coupled with its advanced features, makes it a smart choice for commercial environments where security and efficiency are top priorities.
Gr 1 Storeroom, Fail Safe
Grade 1 Electrified Cylindrical Lock, Storeroom Function, 12-24 VDC, Fail Safe, 2-3/4″ Backset, Request to Exit, Athens Lever, Satin Chrome Finish
ND Series locks are available for electrically locking and unlocking controls for high security and fire safety applications.They are UL Listed and rated for both fire and electrical single-point locking on labeled doors. RX feature is available on ND10, ND12, ND80 and ND96 families. Switch is ready to be used in a normally open or normally closed application.
Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications.
Wired electrified locks complement the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch.
Applications
The electrified ND is ideally used in:
- High traffic areas, where line power ensures continuous operation
- New construction, where electrified door prep, hinges and wiring can easily be incorporated into the building
Key Features
All mechanical features plus:
- Auto-detecting 12-24VDC input
- Selectable EL/EU operation
- Low 0.23 amp max current draw that allows multiple locks on a single power supply
- Low 0.010 amp holding current that eliminates “hot levers” in electrically locked applications
- Modular Request to Exit (RX) that can be added at any time
- Inventory friendly–one lock supports 12-24V, EL or EU, with or without RX
- Six electrified functions for application flexibility
Attributes
Manufacturer surcharge: 4.5%
Amp Draw: 0.23
Application: Storeroom Lever
Baa Qualified: Yes
Base Material: Brass or Bronze
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4″ to 2″
Dust Box: None
Finish: 626/US26D
Finish Family: Matte Silver
Function: 80EL-Fail Safe
Grade: Grade 1
Installation: Commercial
Keying: Keyed Different
Latch Backset Dim: 2-3/4″
Leverknob Design: ATH – Athens Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 1 Year
Lock Face Size: 2-1/4″ X 1-1/8″
Of Keys: 2
Operating Voltage: 12/24 VDC
Origin: Mexico
Pack Height 2: 10″
Pack Length 2: 16.38″
Pack Qty: 1
Pack Width 2: 14.63″
Pbs Options: ‘193321402,4541274,4541421
Pins: 6
Power: Hard Wired
Product Height: 4.75″
Product Length: 9.5″
Product Width: 8.25″
Roseescutcheon Design: 3-7/16″ Diameter
Screws: Combination
Series: ND Series Electrified Lever Locks
Ship Weight: 5 lbs.
Std Latch Number: 14-047
Std Latch Type: Guarded Latch
Std Strike Height: 4-7/8″
Std Strike Number: 10-025
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Electric Cylindrical Lock
Switch Type: Request to Exit
Type: Electric Locks
