Description

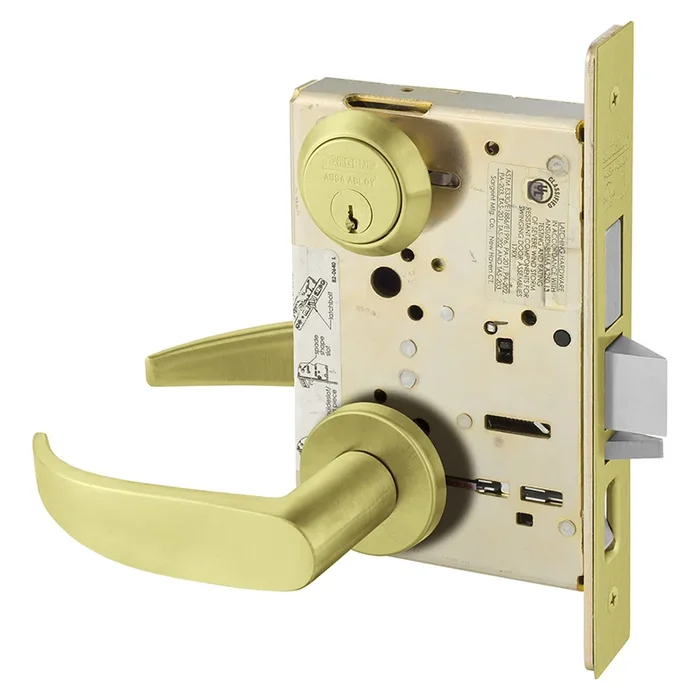

Sargent 8243 LNP 4 Gr1 Apartment Corridor Door with Deadbolt
Sargent 8243 LNP 4 Gr1 Apt Corridor w/Deadbolt offers exceptional strength and reliability, making it a premier choice for apartment corridor doors. This Grade 1 Mortise lock exceeds ANSI/BHMA A156.13 Series 1000 standards, ensuring it withstands the rigors of daily use. Featuring a P-lever design and LN rose, this lock is field reversible and includes a conventional cylinder with an ASA strike for ease of installation. With impressive fire ratings, the Sargent 8243 is UL-cUL listed for three-hour fire doors, providing peace of mind in critical applications. Its robust construction includes a thru-bolted lever trim and a strengthened cylinder retainer, enhancing security against unauthorized access and vandalism. This lock is available with a variety of security key systems and functions, catering to diverse needs, including electromechanical and monitoring options. Aesthetically versatile, the lock is offered in six lever designs, two rose styles, and 14 architectural finishes, ensuring a perfect fit for various environments, from offices to healthcare facilities. Backed by a 10-year warranty, the Sargent 8243 LNP combines performance, durability, and style, making it an outstanding investment for any building professional or discerning homeowner.
Gr1 Apt Corridor wDeadbolt
Grade 1 Apartment Corridor Door Mortise Lock, P – Lever, LN – Rose, Field Reversible, Conventional Cylinder, ASA Strike, Satin Brass
When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
Constructed with the highest quality components to provide maximum security, durability and performance.
Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.
Features:
- ANSI/BHMA Grade 2 certified for cycle and strength requirements
- UL-cUL listed for three-hour fire doors and windstorm applications
- Thru-bolted lever trim and strengthened cylinder retainer
- Available with security key systems (Degree, Signature, KESO, and XC)
- Available in 58 different functions, including electromechanical, security (freewheeling, security escutcheon, anti-vandal pull trim) and monitoring
- 6 lever designs, 2 roses/escutcheons designs, and 14 architectural finishes offered
- Available with behavioral health trim
- 10-year warranty
- Patented design and construction
Benefits:
- Strength & Reliability: Exceeds independent testing, making it the most durable mortise lock in the industry.
- Security: Security features provide resistance against unauthorized entry and vandalism.
- Flexibility & Aesthetics: Visual designwith a variety of functions, lever designs and architectural finishes match a wide range of styles and make it perfect for all types of applications (such as offices, hospitals, behavioral health environments, schools/universities).
- Ease of Installation & Maintenance: Multifunctional lockbody makes switching functions easy and reduces inventory requirements.
Attributes
Ansi Function: F20 – Entry/Office
Baa Qualified: Yes
Bolt Projection: 3/4 In. Latch, 1 in. Deadbolt
Country of origin: USA
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4 In.
Finish: 606/US4
Fire Rated: 2 Hours {B}
Fire Rating: 2 Hours {B}
Function: 43-Apartment Corridor Door
Grade: Grade 1
Handing: Field Reversible
Keying: Keyed Different
Keys: Cut
Leverknob Design: P – Lever
Limited Warranty: 10 Years
Lock Face Size: 8 In. x 1-1/4 In.
Of Keys: 2
Origin: USA
Pack Height: 4.38″
Pack Length: 9.25″
Pack Qty: 1
Pack Volume: 227.64 in³
Pack Width: 5.63″
Pins: 6
Roseescutcheon Design: LN – Rose
Screws: Combination
Series: 8200 Line Lever Mortise Locks
Ship Weight: 6.1 lbs.
Std Keyway: LA
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Combination Latch and Bolt
Std Strike Height: 4-7/8 In.
Std Strike Number: 82-0110
Std Strike Type: ASA Strike
Std Strike Width: 1-1/4 In.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- 7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructions
- 7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructions
- 7800/8200 Series Mortise Locks Installation Instructions
- 7900/8200 Series Mortise Locks Installation Instructions
- 8200 Line Lever Mortise Locks Cut Sheet
- 8200 Mortise Sectional Indicator Trim Template
- Sargent 8200 Series Environmental Product Declaration (EPD)
- Sargent 8200 Series Mortise Locks Sell Sheet
- Video: 8200 Series Mortise Lock Installation
